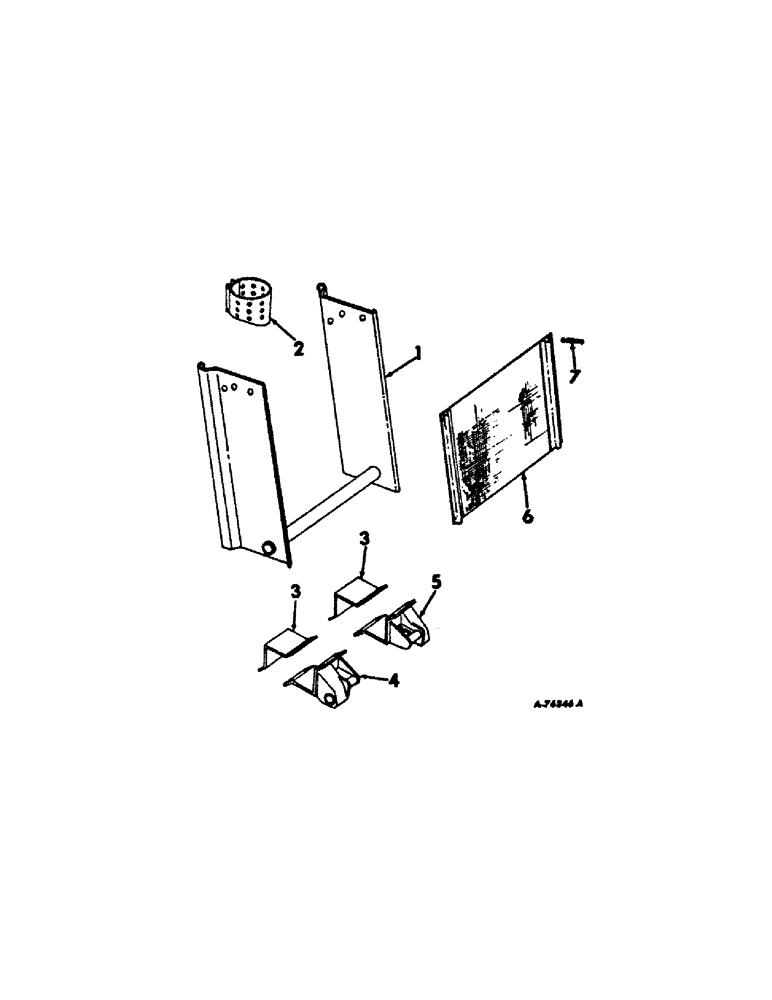

Запчасти Case IH 234 (B-05[1]) - MAIN FRAME SUPPORT, BRACKET AND CLAMP FARMALL M AND SUPER M TRACTORS (39) - FRAMES AND BALLASTING

1

159950C91

BRACKET ASSY., main frame front support

1шт.

18573R1

CARRIAGE BOLT,Short Sq Nk, 5/8" - 11 x 1 1/2", Gr 2

BOLT, 5/8 x 1-1/2 C-Z sq-nk. crg.

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex.

4шт.

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

2

580242R11

SHIELD ASSY., tractor exhaust pipe

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

21097R1

SCREW, 1/4 x 1-1/4 C-Z slt-rd-hd. mach.

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

3

938062R1

CLAMP, rear support

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 C-Z hex.

8шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8 x 2 C-Z hex-hd. cap

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

4

150505C91

BRACKET ASSY., main frame rear support lower, L.H.

1шт.

5

150506C91

BRACKET ASSY., main frame rear support lower, R.H.

1шт.

6

578095R92

SCREEN ASSY., radiator grille

1шт.

7

578092R1

SPRING, radiator grille tension

4шт.
