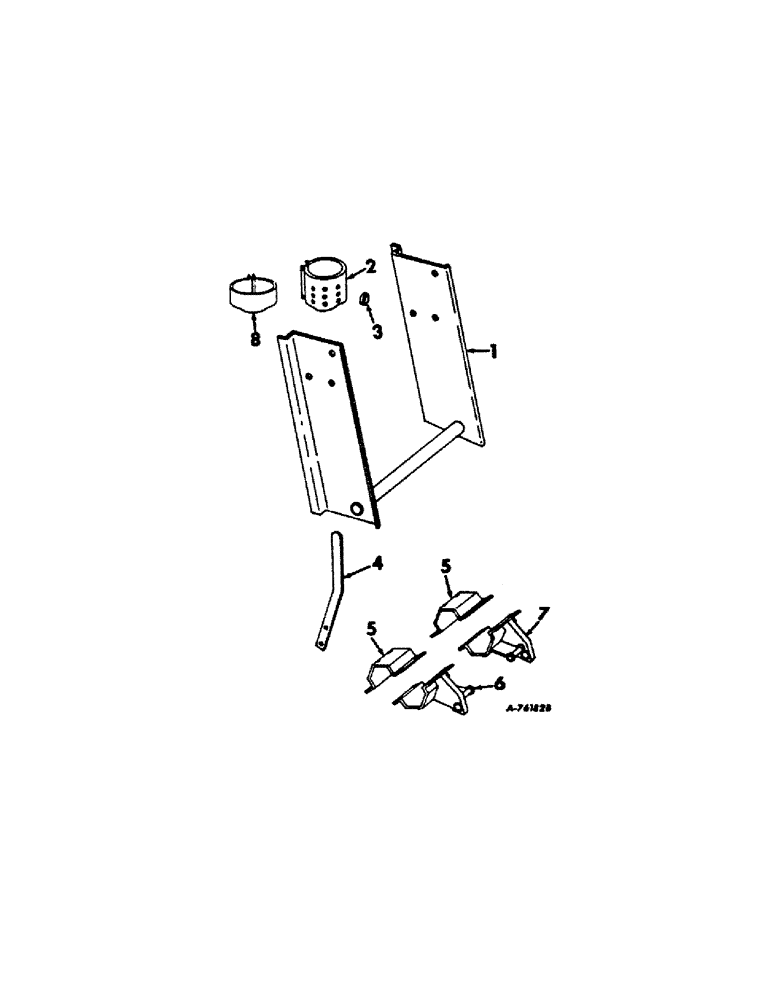

Запчасти Case IH 234 (B-04[1]) - MAIN FRAME SUPPORT, BRACKET AND CLAMP FARMALL 806, 856 AND 1026 TRACTORS (39) - FRAMES AND BALLASTING

1

152720C91

BRACKET ASSY., main frame front

1шт.

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

6шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

6шт.

2

935842R21

SHIELD ASSEM. TRACTOR EXHAUST PIPE, for use w/round muffler

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

21531R1

SCREW

1/4 x 1-3/4 pan-hd. mach.

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

3

151459C1

SPACER, main drive shaft

1шт.

4

151449C1

LEVER, throw-out extension

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd. mach.

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

151026C1

CLAMP, rear support upper

2шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 C-Z hex-hd. cap

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

6

152723C91

BRACKET ASSY., main frame rear support lower, L.H.

1шт.

7

152724C91

BRACKET ASSY., main frame rear support lower, R.H.

1шт.

8

173024C1

SHIELD, tractor exhaust pipe, 856 tractor w/oval muffler

1шт.

8

173025C1

SHIELD, tractor exhaust pipe, 1026 tractor w/oval muffler

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

21531R1

SCREW

1/4 x 1-3/4 pan-hd. mach.

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
