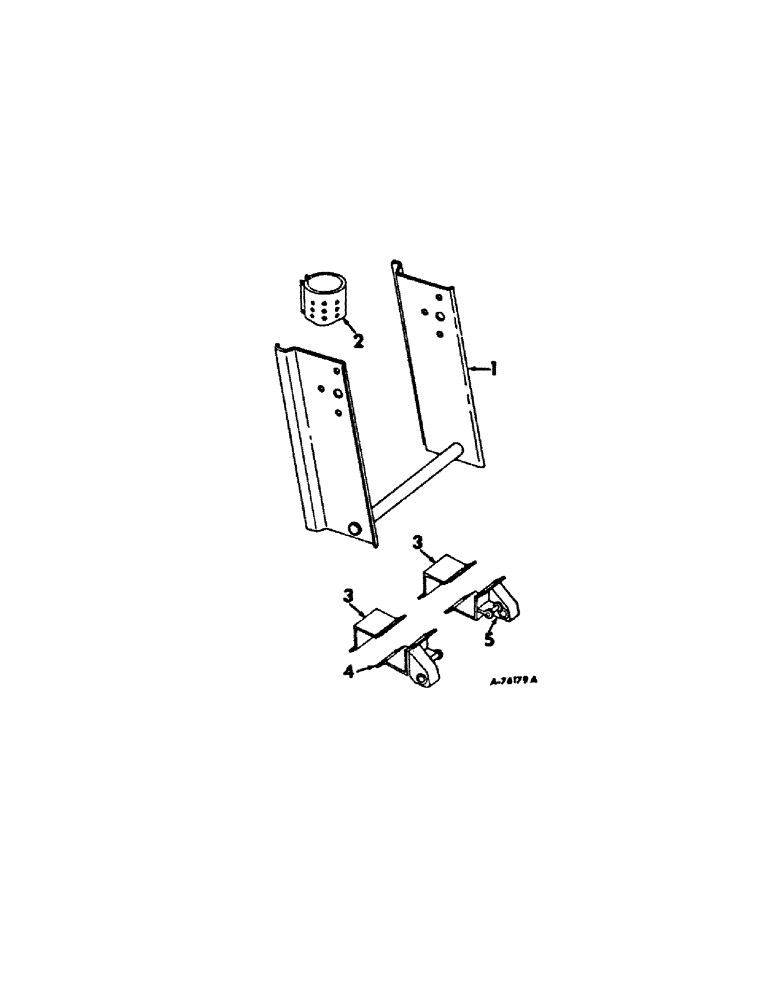

Запчасти Case IH 234 (B-03) - TRACTOR MOUNTINGS, MAIN FRAME SUPPORT, BRACKET AND CLAMP FARMALL 504 TRACTOR (39) - FRAMES AND BALLASTING

1

150513C91

BRACKET ASSY., main frame front support

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

6шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

6шт.

2

935842R21

SHIELD ASSEM., tractor exhaust pipe

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

21531R1

SCREW

1/4-20 x 1-3/4 C-Z slt-pan-hd. mach.

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

3

938062R1

CLAMP, rear support

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 C-Z hex.

8шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 C-Z hex-hd. cap

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

4

150516C91

BRACKET ASSY., main frame rear, support lower, L.H.

1шт.

5

150517C91

BRACKET ASSY., main frame rear, support lower, R.H.

1шт.
