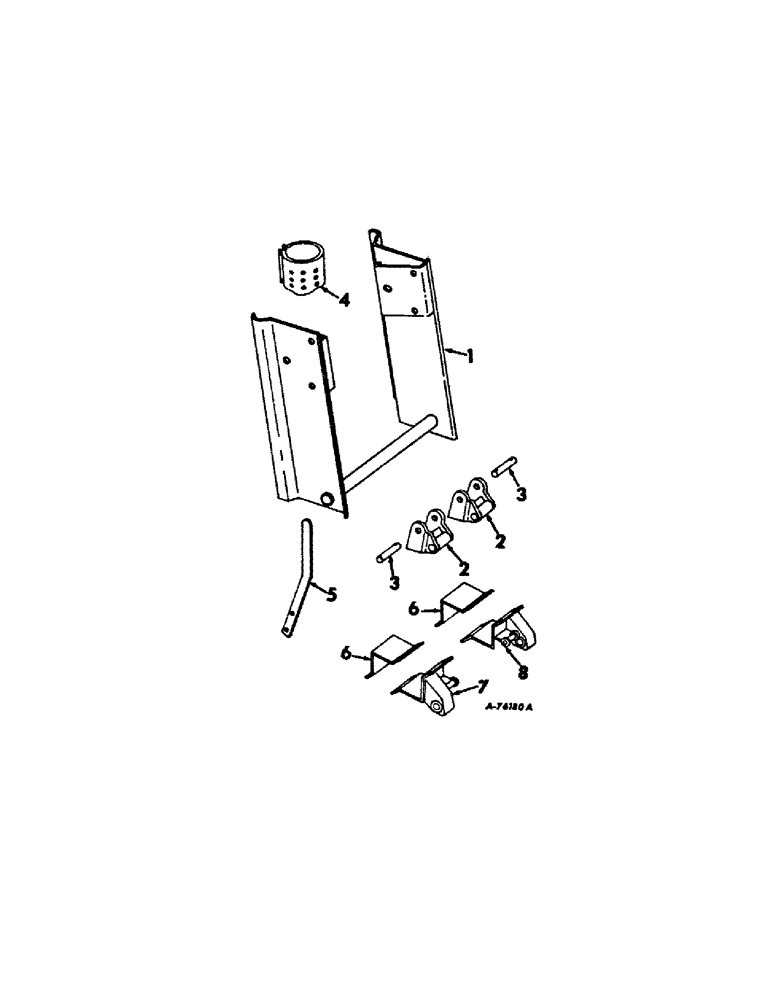

Запчасти Case IH 234 (B-03[1]) - MAIN FRAME SUPPORT, BRACKET AND CLAMP FARMALL 656 TRACTOR (39) - FRAMES AND BALLASTING

1

150520C91

BRACKET ASSY., main frame front support

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

6шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

6шт.

21211R1

WASHER

25/32 x 1-1/2 x 7 ga. C-Z

2шт.

2

150975C1

EXTENSION, rockshaft arm, not used w/cylinder lift

2шт.

3

151467C1

PIN, rockshaft extension, not used w/cylinder lift

2шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

4

935842R21

SHIELD ASSY., tractor exhaust pipe

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

21531R1

SCREW

1/4-20 x 1-3/4 C-Z slt-pan-hd. mach.

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

5

151449V1

LEVER, throw-out extension

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd. mach.

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

6

938062R1

CLAMP, rear support

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

8шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 C-Z hex-hd. cap

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

7

150516C91

BRACKET ASSY., main frame rear support lower, L.H.

1шт.

8

150517C91

BRACKET ASSY., main frame rear support lower, R.H.

1шт.
