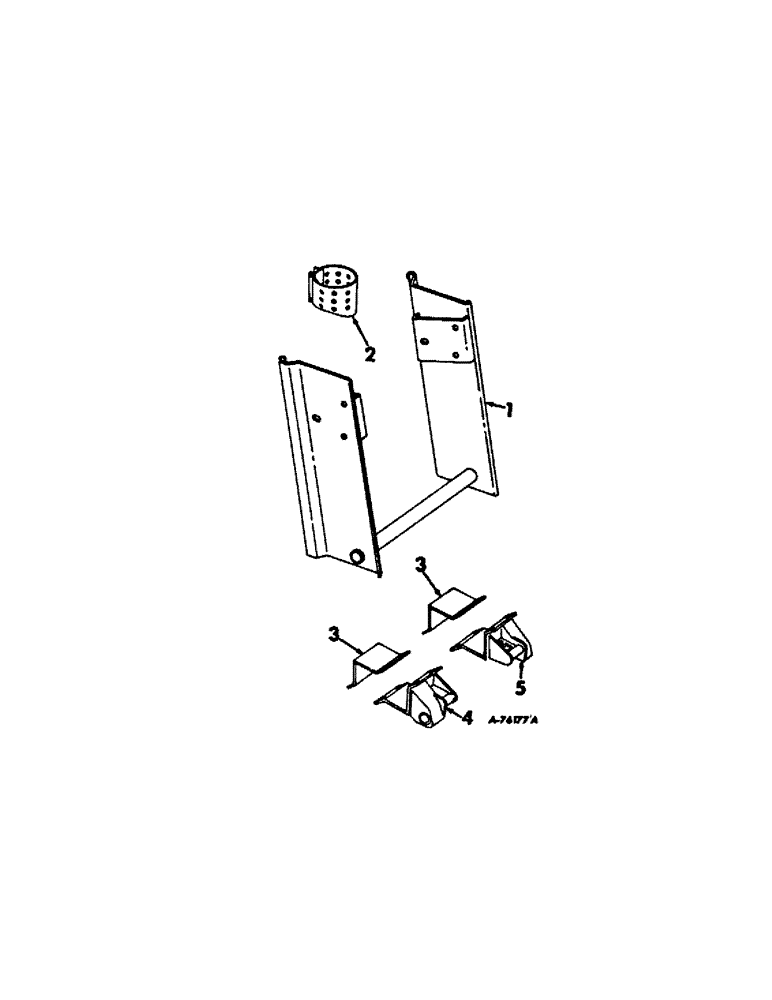

Запчасти Case IH 234 (B-02) - TRACTOR MOUNTINGS, MAIN FRAME SUPPORT, BRACKET AND CLAMP FARMALL 300, 350, & 460 TRACTORS (39) - FRAMES AND BALLASTING

1

939405R91

BRACKET ASSY., main frame front support

1шт.

271773R

SCREW, 3/4-10 x 2-1/2 C-Z hex-hd. cap

6шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

6шт.

2

580242R11

SHIELD ASSY., tractor exhaust pipe, Farmall 300 and 350 tractors

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

21097R1

SCREW, 1/4 x 1-1/4 C-Z slt-pan-hd. mach.

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

2

585738R11

SHIELD ASSY., tractor exhaust pipe, Farmall 460 tractor

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

21530R1

SCREW

1/4-20 x 3-1/2 C-Z slt-pan-hd. mach.

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

21870R1

WASHER

17/64 x 3/4 x 16 ga. C-Z

4шт.

3

938062R1

CLAMP, rear support

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex.

8шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2" C-Z hex-hd. cap

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

4

150505C91

BRACKET ASSY., main frame rear support lower, L.H.

1шт.

5

150506R91

BRACEKT ASSY., main frame rear support lower, R.H.

1шт.
