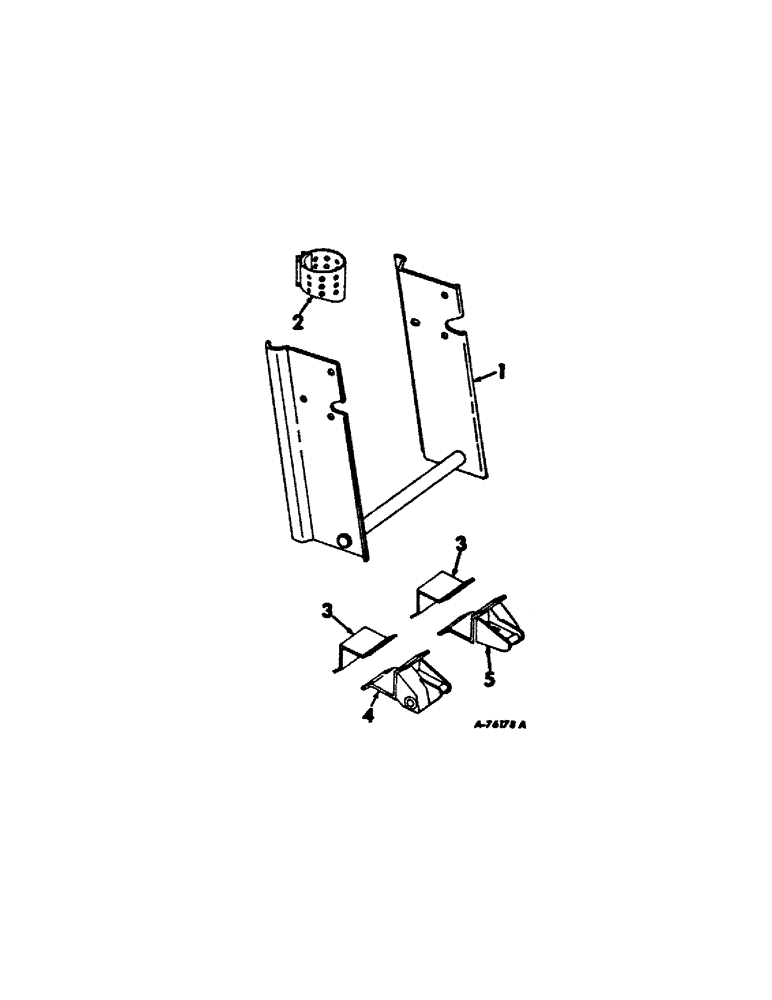

Запчасти Case IH 234 (B-02[1]) - MAIN FRAME SUPPORT, BRACKET AND CLAMP FARMALL 400, 450, 560 AND SUPER MTA TRACTOR (39) - FRAMES AND BALLASTING

1

938054R91

BRACKET ASSY, main frame front support

1шт.

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

6шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

6шт.

2

580242R11

SHIELD ASSEM., tractor exhaust pipe, Farmall 400, SMTA & 450 tractors

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

21097R1

SCREW, 1/4-20 x 1-1/4 C-Z slt-pan-hd. mach.

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

2

585738R11

SHIELD ASSEM., tractor exhaust pipe, Farmall 560 tractors

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

21530R1

SCREW

1/4-20 x 3-1/2 C-Z slt-pan-hd. mach.

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

21870R1

WASHER

17/64 x 3/4 x 16 ga. C-Z

4шт.

3

938062R1

CLAMP, rear support

2шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

NUT, 5/8-11 C-Z hex.

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

SCREW, 5/8-11 x 2 C-Z hex-hd. cap

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

4

938060R91

BRACKET ASSY., main frame rear support lower, L.H.

1шт.

5

938061R91

BRACKET ASSY., main frame rear support lower, R.H.

1шт.
