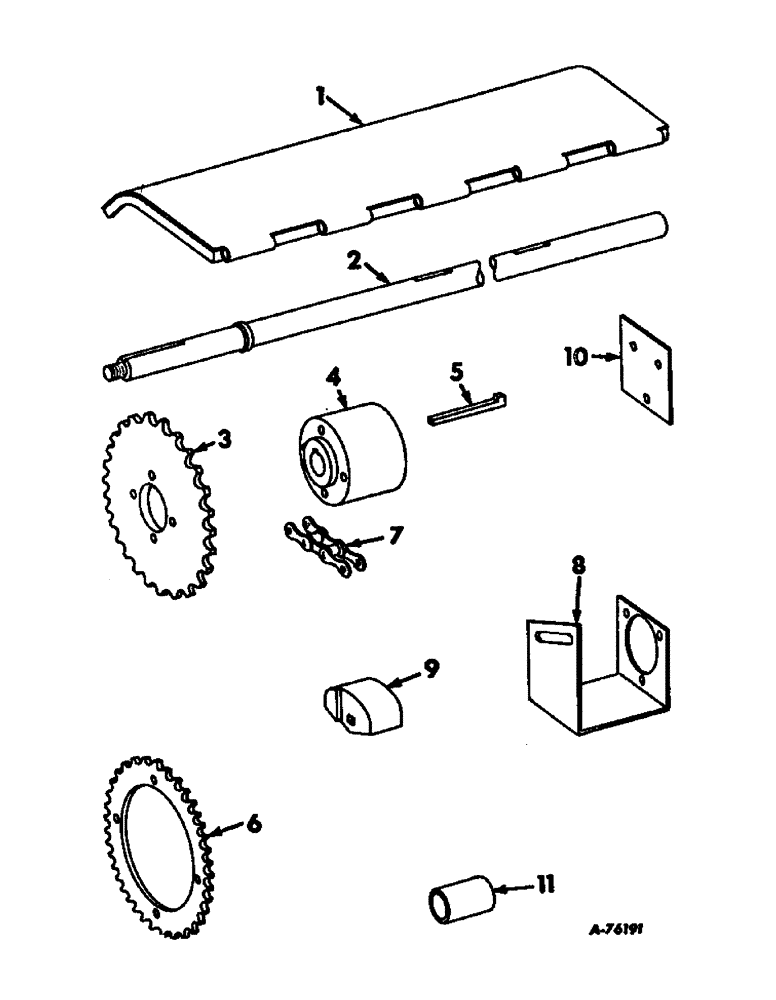

Запчасти Case IH 229 (A-37) - COMPLETING PARTS WINDROW SPECIAL COMBINE (58) - ATTACHMENTS/HEADERS

1

936310R91

EXTENSION ASSY, concave front, 228 corn head for 303 windrow special combines

1шт.

1

936313R91

EXTENSION ASSY, concave front, 229 corn head for 403 windrow special combines

1шт.

2

936317R11

SHAFT ASSY, feeder conveyor, 228 corn head for 303 windrow special combines

1шт.

2

936309R11

SHAFT ASSY, feeder conveyor, 229 corn head for 403 windrow special combines

1шт.

3

936306R1

SPROCKET, feeder drive plate, 228 corn head for 303 windrow special and 229 corn head for 403 windrow special combines

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

433115

BOLT,Hex, 3/8" - 16 x 4 1/4", Gr 5

SCREW, 3/8 x 4-1/4 C-Z hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

4

936305R1

HUB, feeder drive sprocket, 228 corn head for 303 windrow special and 229 corn head for 403 windrow special combines

1шт.

5

Q3957

KEY,Gib, 3/8" Sq x 2 1/2"

3/8 x 4 sq tapered gib, 228 corn head for 303 windrow special and 229 corn head for 403 windrow special combines

1шт.

6

936304R1

SPROCKET, feeder driven, 228 corn head for 303 windrow special and 229 corn head for 403 windrow special combines

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

180187

SCREW, 3/8 x 2-3/4 C-Z hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

7

CHAIN, feeder drive roller, use 67 links from 10-ft roll marked 1793D, one connecting link 1786D and one offset connecting link 1318D, 228 corn head for 303 windrow special and 229 corn head for 403 windrow special combines

1шт.

8

936307R1

BRACKET, feeder drive chain tightener, 228 corn head for 303 windrow special and 229 corn head for 403 windrow special combines

1шт.

9

583619R1

BLOCK

feeder drive chain tightener, 228 corn head for 303 windrow special and 229 corn head for 403 windrow special combines

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

10

626582R1

COVER

feed beater brg hole, 228 corn head for 303 windrow special and 229 corn head for 403 windrow special combines

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

3шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

11

936316R1

SPACER, slip clutch holder, 228 corn head for 303 windrow special and 229 corn head for 403 windrow special combines

1шт.

163628C91

KIT, product graphic decals, consists of the following:

1шт.

1000621R5

DECAL, be careful, product graphic

1шт.

1001655R1

DECAL, safety, product graphic

1шт.

2750379R2

DECAL, important, product graphic

1шт.

2754032R1

PRODUCT GRAPHIC

DECAL, service model numbers, product graphic

1шт.
