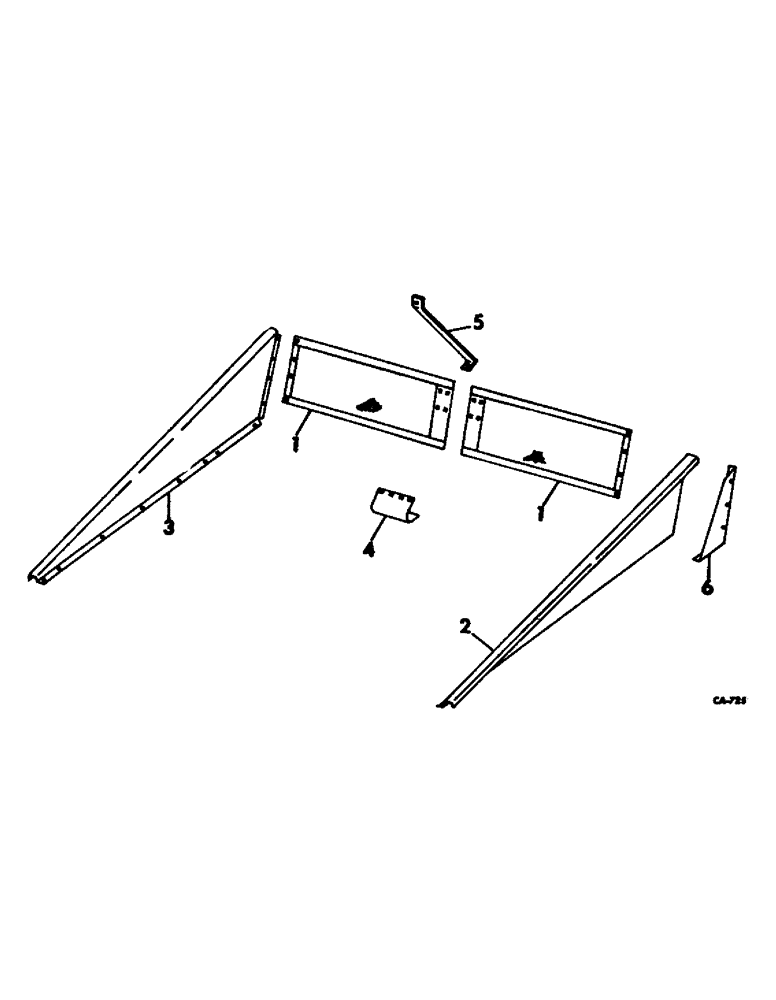

Запчасти Case IH 229 (A-33) - GATHERER EXTENSION, FOR LOW SILHOETTE CORN HEADS (58) - ATTACHMENTS/HEADERS

1

163159C91

SCREEN ASSY, gatherer extension

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

20шт.

120376

NUT,5/16"-18, G5

20шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

20шт.

2

159995C2

SHIELD, gatherer extension LH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

12шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

12шт.

3

159996C2

SHIELD, gatherer extension RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

12шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

12шт.

4

632416R2

BRACE, gatherer extension center

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

2шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

2шт.

5

161000C1

BRACE, gatherer extension

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

6

159997C1

SUPPORT, gatherer extension LH

1шт.

6

159998C1

SUPPORT, gatherer extension RH

1шт.
