Запчасти Case IH 228 (A-17) - STALK ROLL CONTROL (58) - ATTACHMENTS/HEADERS

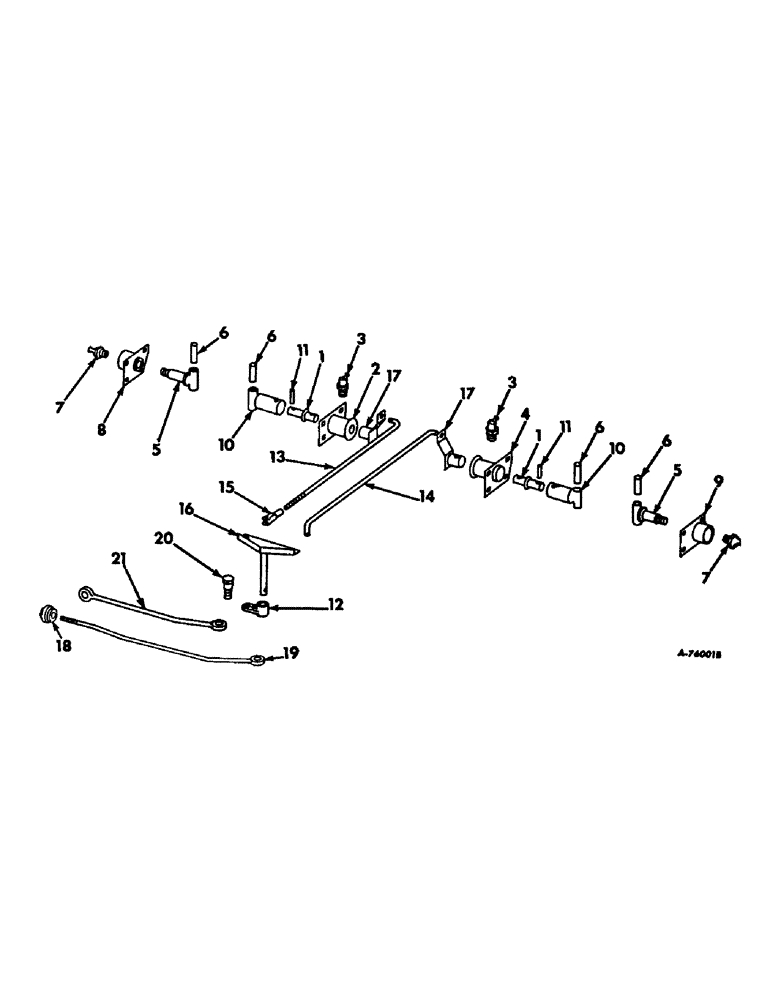

Схема запчастей Case IH 228 - (A-17) - STALK ROLL CONTROL (58) - ATTACHMENTS/HEADERS
11
7
6
6
20
21
4
1
2
1
18
9
6
3
13
17
3
12
14
16
10
15
7
8
17
5
10
19
6
11
5

Артикул

Название

Примечание

Количество

1

580187R91

SHAFT ASSY, stalk roll control

2шт.

2

586016R91

HOUSING ASSY, stalk roll cam left

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

3

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 PTF 67-1/2 deg lub

2шт.

4

586017R91

HOUSING ASSY, stalk roll cam right

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

4шт.

271501

SOCKET

NUT, 7/16 C-Z hex

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

5

587511R1

ANCHOR, stalk roll support

2шт.

102609R1

LOCK NUT,3/4"-16

NUT, 3/8 znp nylon insert

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

21713R1

WASHER,25/32" x 1 3/4" x .120"

25/32 x 1-3/4 x 11 ga

2шт.

22241R1

WASHER

1-3/32 x 1-3/4 x 16 ga

16шт.

6

580184R1

BUSHING, stalk roll support anchor, 227 serial no. 4157 and below, 228 serial no. 9818 and below, 229 serial no. 1282 and below

4шт.

6

158783C1

BUSHING

stalk roll support anchor, 227 serial no. 4158 and above, 228 serial no. 9819 and above, 229 serial no. 1283 and above

4шт.

7

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

8

589691R91

HUB ASSY, stalk roll support left

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

9

589692R91

HUB ASSY, stalk roll support right

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

4шт.

271501

SOCKET

NUT, 7/16 C-Z hex

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

10

580181R1

CAM, stalk roll adjustment

2шт.

11

584453R1

PIN

snapping roll adjustment cam

2шт.

12

632116R1

ARM, stalk roll control pin lower

1шт.

577139R1

LOCK PIN,3/8" x 1 1/2", Slotted

Pin, 3/8" x 1 1/2", Slotted

1шт.

13

632117R1

ROD, stalk roll control left

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

14

632118R1

ROD, stalk roll control right

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

15

104039

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS, 1/2-20 x 3 light adj rod end

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

138080

PIN, 1/2 x 1-1/2 C-Z rod end

1шт.

16

632119R91

PIN ASSY, stalk roll control pivot

1шт.

17

589709R91

HUB ASSY, stalk roll control cam

2шт.

577139R1

LOCK PIN,3/8" x 1 1/2", Slotted

Pin, 3/8" x 1 1/2", Slotted

2шт.

18

632213R1

NUT, stalk roll control adjustment, for use with rod 632122R1

1шт.

19

632122R1

ROD, stalk roll adjustment, for use with nut 632213R1

1шт.

20

632209R1

BOLT, stalk roll adjustment

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

21

634491R1

ROD, stalk roll adjusting, replaces nut 632213R1 and rod 632122R1

1шт.

Выбрано товаров: 46
