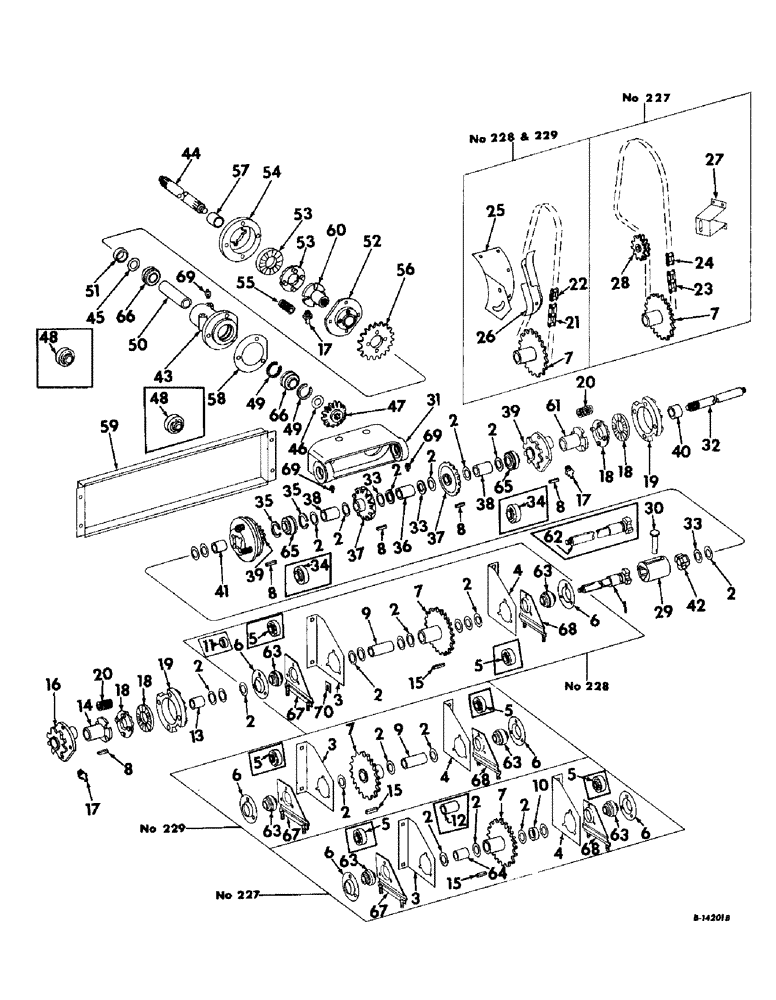

Запчасти Case IH 228 (A-11) - MAIN DRIVE (58) - ATTACHMENTS/HEADERS

1

156004C91

SHAFT ASSY, main drive w/1-13/16 spacer welded to shaft, for use with 557994R91 bearing

1шт.

10495D

NUT

3/4-16 slt hex. jam

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

131050

WASHER,1 1/4"

1 1/4"

1шт.

21713R1

WASHER,25/32" x 1 3/4" x .120"

25/32 x 1-3/4 x 11 ga C-Z

1шт.

2

632156R1

THRUST WASHER

main drive shaft

1шт.

3

632140R1

BRACKET, main drive shaft brg LH

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z sq-nk crg

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

4

632141R1

BRACKET, main drive shaft brg RH

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z sq-nk crg

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

5

617668R91

BALL BEARING

main drive shaft ball, for use with 632138R91 shaft

2шт.

6

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

main drive shaft brg

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

3шт.

7

587811R1

SPROCKET ASSY.

SPROCKET, main driven, 28T

1шт.

8

577147R1

KEY

5/16 x 1-3/16 sq parallel

5шт.

9

632142R1

SPACER, main drive sprocket, 228 & 229 corn heads

1шт.

10

632297R1

SPACER, main driven sprocket outer, 227 corn head, for 91, 93, 105 & 203 combines

1шт.

11

632157R1

SPACER, auger drive sprocket inner, 228CH for use w/shaft 632138R91

1шт.

12

632136R1

SPACER, main drive sprocket outer, 227 corn head, for use with 632138R91 shaft

1шт.

13

632147R1

SPACER

auger drive sprocket outer

1шт.

14

632144R1

HUB CAP

HUB, auger drive slip clutch

1шт.

15

151257C1

KEY, 5/16 x 1-3/4 sq parallel hardened

1шт.

16

632143R1

SPROCKET, auger drive, 8T

1шт.

17

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

5шт.

18

B12170

RATCHET,Clutch Slip, 94.49mm

slip clutch

6шт.

19

632152R2

RETAINER

slip clutch

3шт.

20

28395H

SPRING

slip clutch

12шт.

587021R1

BOLT,Sq Nk, 7/16" - 14 x 3", Drilled

slip clutch spring

12шт.

425-127

SLOTTED NUT,7/16"-14, G5

7/16 C-Z slt hex

12шт.

121224

SUPPORT

3/32" x 1"

12шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

12шт.

21

CHAIN, main drive roller, use 63 links from 10-ft roll marked 570027R91 and one connecting link 587369R91, 228 & 229 corn heads

1шт.

22

587369R91

CHAIN LINK

LINK, main drive chain connecting, 228 & 229 corn head

1шт.

23

CHAIN, main drive roller, use 99 links from 10-ft roll marked 1793D and one connecting link 1786D, 227CH

1шт.

24

1786D

LINK

main drive chain connecting, 227 corn head

1шт.

25

632132R91

BRACKET ASSY, main drive chain tightener, 228 & 229 corn head

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

26

586291R1

GUIDE, main drive chain, 228 & 229 corn head

1шт.

19041R1

BOLT,7/16"-14 x 1 1/4", G2, Full Thd

7/16 x 1-1/4 C-Z no. 3 plow

2шт.

271501

SOCKET

NUT, 7/16 C-Z hex

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

1шт.

27

632299R1

BRACKET, main drive chain tightener, 227 corn head, for 91, 93, 105 & 203 combines

1шт.

27

168547C1

BRACKET ASSY, main drive chain tightener, 227 corn head for 205 or 315 combine

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

28

582389R91

DRIVE SPROCKET

SPROCKET, main drive chain tightener, 15T, 227 corn head

1шт.

18722R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 2

BOLT, 5/8 x 2-1/2 C-Z sq-nk crg

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 C-Z hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21471R1

WASHER

21/32 x 1 x 11 ga C-Z

4шт.

Q1593

WASHER, 21/32 sq x 1-14 x 12 ga

1шт.

29

575019R3

SLEEVE, main drive coupling

1шт.

30

576479R2

AXLE PIN

PIN, main drive coupling sleeve

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

31

632127R2

BRACKET, main drive gear

1шт.

32

632137R2

SHAFT, main drive

1шт.

10495D

NUT

3/4-16 slt hex. jam

2шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

131050

WASHER,1 1/4"

1 1/4"

1шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z

2шт.

33

589782R1

THRUST WASHER

main drive shaft

1шт.

34

586649R91

BEARING

gear shaft ball, for use with 632127R2 w/o grease fitting

2шт.

35

360936R1

RING

pinion shaft brg snap

2шт.

36

632142R1

SPACER, main drive gear

1шт.

37

568533R1

GEAR, stalk roll drive bevel

2шт.

38

632136R1

SPACER, main drive gear shaft

2шт.

39

632130R1

SPROCKET, gathered drive, 14T

2шт.

40

634902R1

SPACER

gear shaft

1шт.

41

632195R1

SPACER, main drive coupling

1шт.

42

632151R1

COUPLING

main drive gear shaft

1шт.

43

632153R3

HOUSING, stalk roll drive pinion

2шт.

18813R1

BOLT,Hex, 1/2" - 13 x 4", Gr 2

1/2 x 4 C-Z hex-hd mach

6шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

180145

BOLT,Hex, 7/16" - 14 x 1", Gr 5

SCREW, 7/16 x 1 C-Z hex-hd cap

6шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

44

632131R1

SHAFT, stalk roll drive pinion

2шт.

10495D

NUT

3/4-16 slt hex. jam

4шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

4шт.

178139

WASHER, 1-3/16 C-Z med lock

2шт.

21713R1

WASHER,25/32" x 1 3/4" x .120"

25/32 x 1-3/4 x 11 ga C-Z

4шт.

45

581074R1

WASHER, stalk roll drive pinion shaft

4шт.

46

585961R1

WASHER, stalk roll drive pinion shaft

2шт.

47

580842R1

GEAR

stalk roll drive bevel

2шт.

48

566632R91

BALL BEARING

stalk roll drive pinion ball, for use with 632127R2 w/o grease fitting

4шт.

49

641207R1

SNAP RING,2.44", Int, #244

Ring, Snap, , pinion shaft brg 2.44", Int, #244

4шт.

50

632158R1

SPACER, stalk roll drive pinion inner

2шт.

51

589696R1

BUSHING

SPACER, stalk roll drive pinion outer

2шт.

52

632149R1

HUB CAP

HUB, stalk roll drive sprocket

2шт.

53

B12170

RATCHET,Clutch Slip, 94.49mm

slip clutch stalk roll drive

4шт.

54

632152R2

RETAINER

PLATE, stalk roll drive slip clutch pressure

2шт.

55

28395H

SPRING

stalk roll dr slip clutch

8шт.

587021R1

BOLT,Sq Nk, 7/16" - 14 x 3", Drilled

stalk roll drive slip clutch spring

8шт.

272072

HYD TUBE

7/16 C-Z slt hex

8шт.

121224

SUPPORT

3/32" x 1"

8шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

8шт.

56

632128R1

PINION

SPROCKET, stalk roll drive, 24T

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 C-Z hex-hd cap

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

57

634902R1

SPACER

stalk roll pinion outer

2шт.

58

587067R1

SHIM, stalk roll drive bevel gear .018

1шт.

58

586604R1

SHIM, stalk roll drive bevel gear .036

1шт.

58

936453R1

SHIM, stalk roll drive bevel gear .010

1шт.

59

632145R1

SHIELD, stalk roll drive

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

60

632129R1

BUSHING

HOLDER, stalk roll dr slip clutch

2шт.

61

632144R1

HUB CAP

HUB, gatherer drive slip clutch

2шт.

62

632138R92

SHAFT ASSY, main drive w/2-1/4 spacer welded to shaft, for use with 617668R91 bearing

1шт.

10495D

NUT

3/4-16 slt hex. jam

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

131050

WASHER,1 1/4"

1 1/4"

1шт.

21713R1

WASHER,25/32" x 1 3/4" x .120"

25/32 x 1-3/4 x 11 ga C-Z

1шт.

63

557994R91

BALL BEARING,1.2505" ID x 62 mm OD x 1.90625, 0.625"

main drive shaft ball, for use with 156004C91 shaft

2шт.

64

156003C1

SPACER, main drive sprocket outer, 227 corn head, for use with 156004C91 shaft

1шт.

65

156025C91

BEARING

gear shaft ball, for use with 632127R2 bracket w/grease fittings

2шт.

66

156027C91

BEARING

stalk roll drive pinion ball, for use with 632153R3 housing w/grease fitting

4шт.

67

152899C91

FLANGE ASSY, main drive RH

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

68

152898C91

FLANGE ASSY, main drive LH

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

69

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (straight) 1/4"-28 NPT x .54" lg

2шт.

69

126131

FITTING

1/4 str lub

2шт.

69

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

FITTING, 1/4 45 deg lub

2шт.

70

936589R1

SHIM, main drive flange

1шт.
