Запчасти Case IH 228 (A-08) - AUGER, BEATER AND BEATER DRIVE (58) - ATTACHMENTS/HEADERS

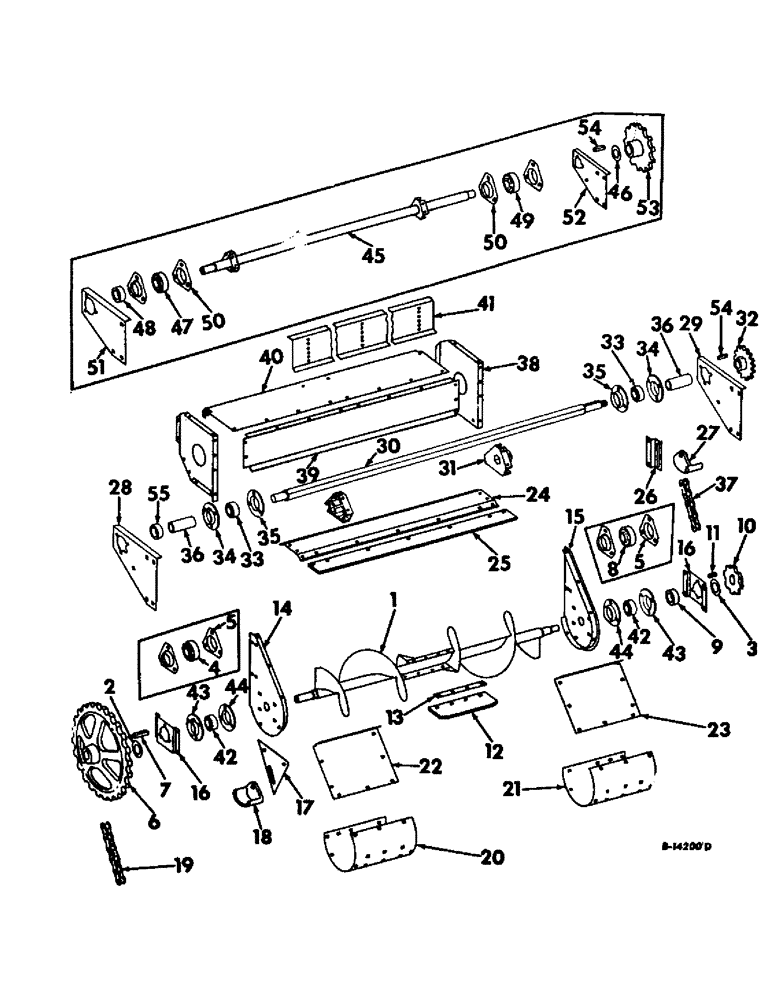

Схема запчастей Case IH 228 - (A-08) - AUGER, BEATER AND BEATER DRIVE (58) - ATTACHMENTS/HEADERS
16
52
55
36
16
20
26
22
44
29
10
2
42
23
34
5
37
33
39
48
12
11
41
50
34
40
47
54
44
46
5
7
43
18
19
53
28
4
38
27
17
14
45
49
21
3
50
31
51
13
35
43
8
1
54
6
9
30
42
15
35
25
33
24
32
36

Артикул

Название

Примечание

Количество

1

632379R92

AUGER ASSY, 229 and 228

1шт.

1

937167R92

AUGER ASSY, 227

1шт.

86837293

SHAFT

1/2 x 1 C-Z hex-hd cap

2шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

4шт.

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

1шт.

131050

WASHER,1 1/4"

1 1/4"

1шт.

460908R1

WASHER

17/32 x 1-1/2 x 11 ga C-Z

1шт.

22191R1

WASHER

17/32 x 1-3/4 x 7 ga C-Z

1шт.

2

632156R1

THRUST WASHER

auger driven shaft

2шт.

3

654283R1

THRUST WASHER

beater drive shaft

1шт.

4

617668R91

BALL BEARING

auger LH shaft ball, 227CH serial no. 3675 & below, 228CH serial no. 8579 & below, 229CH serial no. 1117 & below

1шт.

5

571425R1

FLANGED BEARING

auger shaft brg, 227CH serial no. 3675 & below, 228CH serial no. 8579 & below, 229CH serial no. 1117 & below

4шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

6

632378R2

SPROCKET ASSY.

SPROCKET, auger driven 24T

1шт.

7

577147R1

KEY

5/16 x 1-3/16 sq-parallel

1шт.

8

617668R91

BALL BEARING

auger RH shaft ball, 227CH serial no. 3675 & below, 228CH serial no. 8579 & below, 229CH serial no. 1117 & below

1шт.

9

557995R11

COLLAR

W/SET SCREW, auger RH shaft brg lkg

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 1/4-20 x 1/4 hex-soc-hd cup-pt set

1шт.

10

586359R1

SPROCKET, beater drive RH, 8T

1шт.

11

587016R1

KEY, 1/4 x 3/4 sq parallel

1шт.

12

634470R1

BAT

auger, 229 and 228

2шт.

12

937171R1

BAT, auger, 227

2шт.

13

634471R1

STRAP, auger bat retainer, 229 and 228

2шт.

13

937170R1

STRAP, auger bat retainer, 227

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

14

632372R91

END ASSY, auger trough LH

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

21496R1

WASHER

11/32 x 3/4 x 11 ga C-Z

3шт.

15

632373R91

END ASSY, auger trough RH

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

21496R1

WASHER

11/32 x 3/4 x 11 ga C-Z

3шт.

16

632359R2

BRACKET, auger shaft brg

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

8шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

17

632387R1

BRACKET, auger drive chain tightener

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

18

583620R1

BLOCK

auger drive chain tightener

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

19

CHAIN, auger drive roller, use 31 links from 10 ft roll marked 569090R91, one offset link 567009R91, and one connecting link 587368R91

1шт.

20

632374R1

TROUGH, auger LH

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

3шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

1шт.

120376

NUT,5/16"-18, G5

5шт.

271501

SOCKET

NUT, 7/16 C-Z hex

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

21

632393R1

TROUGH, auger RH, 227 corn head

1шт.

21

632375R1

TROUGH, auger RH, 228 & 229 corn head

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

1шт.

120376

NUT,5/16"-18, G5

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

22

632394R1

EXTENSION, auger trough LH

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

10шт.

120376

NUT,5/16"-18, G5

10шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

23

632396R1

EXTENSION, auger trough RH, 227 corn head

1шт.

23

632395R1

EXTENSION, auger trough RH, 228 & 229 corn head

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

24

653905R1

SECTION, beater

3шт.

181595

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

SCREW, 5/16 x 3/4 C-Z hex-hd cap

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

12шт.

25

653906R1

FLAP

BAT, beater

3шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 C-Z hex-hd mach

21шт.

9411638

LOCK NUT,5/16"-18, GA

NUT, 5/16 C-Z hex-lock

21шт.

26

632194R1

BRACKET, beater drive tightener

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

27

583620R1

BLOCK

beater drive chain tightener

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

28

151016C2

BRACKET, beater brg LH, 227CH serial no. 3676 & above, 228CH serial no. 8580 & above, 229CH serial no. 1118 & above

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

29

151017C2

BRACKET, beater brg RH, 227CH serial no. 3676 & above, 228CH serial no. 8580 & above, 229CH serial no. 1118 & above

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

30

151015C1

SHAFT, beater, 227CH serial no. 3676 & above, 228CH serial no. 8580 & above, 229CH serial no. 1118 & above

1шт.

425-1310

SLOTTED NUT,5/8"-18, G5

NUT, 5/8 C-Z slt-hex

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

492-11112

LOCK WASHER,1 1/8"

1-1/8 C-Z med lock

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

1шт.

472323R1

WASHER

beater shaft

12шт.

31

166390C1

SUPPORT, beater section

2шт.

32

151013C1

SPROCKET, beater driven 13-T, 227CH serial no. 3676 & above, 228CH serial no. 8580 & above, 229CH serial no. 1118 & above

1шт.

33

939475R91

BEARING

ASSY, beater shaft ball, 227CH serial no. 3676 & above, 228CH serial no. 8580 & above, 229CH serial no. 1118 & above

2шт.

33

455960R91

BALL BEARING

BEARING ASSY, beater shaft ball, 227CH serial no. 3675 & below, 228CH serial no. 8579 & below, 229CH serial no. 1117 & below

2шт.

34

939460R91

FLANGE

W/65 DEG FITTING, 227CH serial no. 3676 & above, 228CH serial no. 8580 & above, 229CH serial no. 1118 & above

2шт.

34

571425R1

FLANGED BEARING

beater shaft brg, 227CH serial no. 3675 & below, 228CH serial no. 8579 & below, 229CH serial no. 1117 & below

2шт.

35

939461R1

FLANGE

beater driven sprocket brg, 227CH serial no. 3676 & above, 228CH serial no.8580 & above, 229CH serial no.1118 & above

2шт.

35

571425R1

FLANGED BEARING

beater driven sprocket brg, 227CH serial no.3675 & below, 228CH serial no. 8579 & below, 229CH serial no. 1117 & below

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x 16 ga C-Z

6шт.

36

155464C1

SPACER, beater shaft, 227CH serial no. 3676 & above, 228CH serial no. 8580 & above, 229CH serial no. 1118 & above

2шт.

37

CHAIN, beater drive roller, use 39 links from 10-ft roll marked 569080R91 and one connecting link 587372R91

1шт.

38

634467R1

SIDE, beater LH

1шт.

38

634468R1

SIDE, beater RH

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

8шт.

120376

NUT,5/16"-18, G5

8шт.

632225R1

LOCK NUT

5/16 C-Z whiz-hex-lock

8шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

8шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

8шт.

39

634476R2

SHIELD, beater

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

40

935631R91

COVER ASSY, beater

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

10шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

10шт.

41

937163R1

SHIELD, beater adjustable

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

8шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

8шт.

42

156011C91

BALL BEARING

BEARING ASSY, auger shaft relube ball

2шт.

43

939460R91

FLANGE

W/65 DEG FITTING

2шт.

44

939461R1

FLANGE

auger shaft brg

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

6шт.

45

632191R91

SHAFT ASSY, beater, 227CH serial no. 3675 & below, 228CH serial no. 8579 & below, 229CH serial no. 1117 & below

1шт.

181694

BOLT,Hex, 1/2" - 20 x 7/8"

SCREW, 1/2 x 7/8 C-Z hex-hd cap

1шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

1шт.

460908R1

WASHER

17/32 x 1-1/2 x 11 ga C-Z

1шт.

46

654283R1

THRUST WASHER

beater shaft, 227CH serial no. 3675 & below, 228CH serial no. 8579 & below, 229CH serial no. 1117 & below

2шт.

47

455965R91

BALL BEARING,1.0005" ID x 52 mm OD x 15 mm

beater shaft ball LH, 227CH serial no. 3675 & below, 228CH serial no. 8579 & below, 229CH serial no. 1117 & below

1шт.

48

455102R11

COLLAR

W/SET SCREW, beater shaft brg LH, 227CH serial no. 3675 & below, 228CH serial no. 8579 & below, 229CH serial no. 1117 & below

1шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4-20 x 1/4 hex-soc-hd cup-pt set

1шт.

49

455965R91

BALL BEARING,1.0005" ID x 52 mm OD x 15 mm

beater shaft ball RH, 227CH serial no. 3675 & below, 228CH serial no. 8579 & below, 229CH serial no. 1117 & below

1шт.

50

571424R1

FLANGE

beater shaft brg, 227CH serial no. 3675 & below, 228CH serial no. 8579 & below, 229CH serial no. 1117 & below

4шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

51

935737R1

BRACKET, beater brg LH, 227CH serial no. 3675 & below, 228CH serial no. 8579 & below, 229CH serial no. 1117 & below

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

52

935738R1

BRACKET, beater brg RH, 227CH serial no. 3675 & below, 228CH serial no. 8579 & below, 229CH serial no. 1117 & below

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

53

632190R1

SPROCKET, beater driven, 13T, 227CH serial no. 3675 & below, 228CH serial no. 8579 & below, 229CH serial no. 1117 & below

1шт.

54

587016R1

KEY, 1/4 x 3/4 sq parallel, 227CH serial no. 3675 & below, 228CH serial no. 8579 & below, 229CH serial no. 1117 & below

1шт.

54

577147R1

KEY

5/16 x 1-3/16 sq-parallel, 227CH serial no. 3676 & above, 228CH serial no. 8580 & above, 229CH serial no. 1118 & above

1шт.

55

557115R11

COLLAR

COLLAR W/SET SCREW, beater shaft brg, 227CH serial no. 3676 & above, 228CH serial no. 8580 & above, 229CH serial no. 1118 & above

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16 hex-soc-hd cup pt set

1шт.

Выбрано товаров: 173
