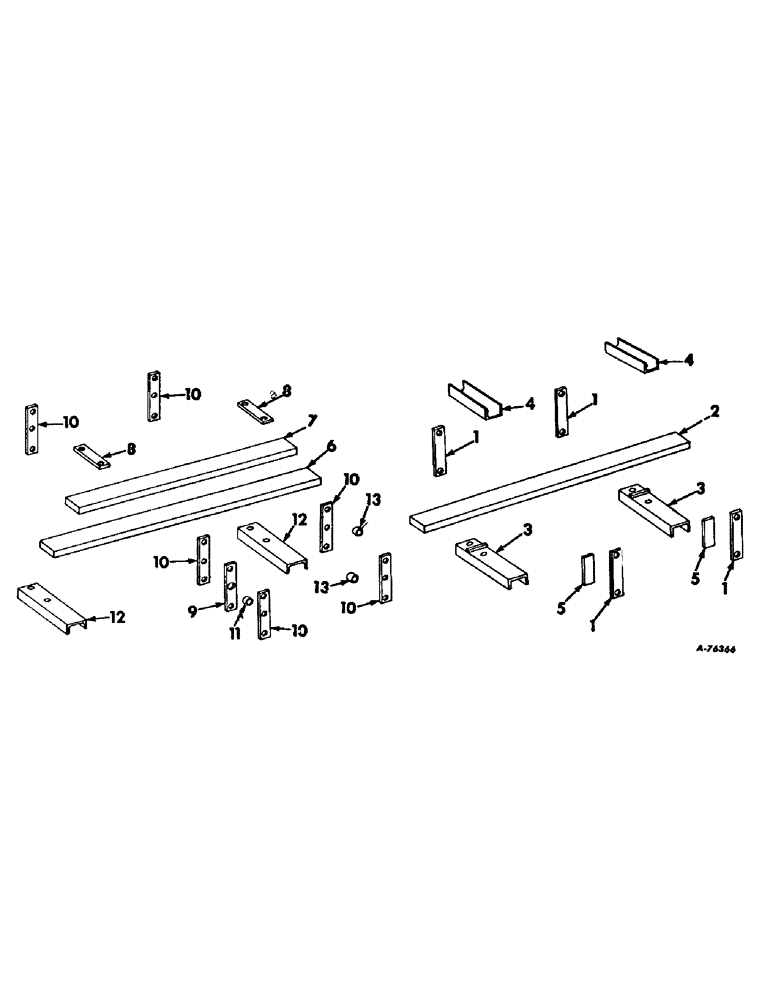

Запчасти Case IH 228 (A-36) - WEIGHTS COUNTER BALANCE, FOR USE W/105, 205 AND 315 COMBINES (58) - ATTACHMENTS/HEADERS

1

159882C1

BAR, counter balance weight support

4шт.

23065R1

BOLT, 1/2 x 13 hex-hd mach

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

2

583740R1

BAR, counter balance weight

10шт.

3

654328R11

CHANNEL ASSY, counter balance weight lower

2шт.

4

654331R1

CHANNEL, counter balance weight upper

2шт.

18818R1

BOLT,Hex, 1/2"-13 x 7", G2

1/2 x 7 C-Z hex-hd mach

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

5

654445R1

FILLER, counter balance

4шт.

6

583740R1

BAR, counter balance weight

1шт.

7

629344R1

BAR, counter balance weight short

5шт.

8

597456R1

STRAP, counter balance weight tie

3шт.

20175R1

BOLT, 1/2 x 6-1/2 C-Z hex-hd mach

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

9

597457R1

BAR, counter balance weight tie

1шт.

10

597458R1

BAR, counter balance weight tie

6шт.

466163

SCREW, 1/2 x 5 C-Z hex-hd cap

3шт.

19999R1

BOLT,Hex, 1/2" - 13 x 9 1/2", Gr 5

SCREW, 1/2 x 9-1/2 C-Z hex-hd cap

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

5шт.

120384

WASHER,1/2"

LOCK, 1/2"

5шт.

11

PO26272

SPACER, LH tie bar

1шт.

12

634639R1

CHANNEL, counter balance weight

2шт.

13

950434R1

SPACER, RH tie bar

2шт.
