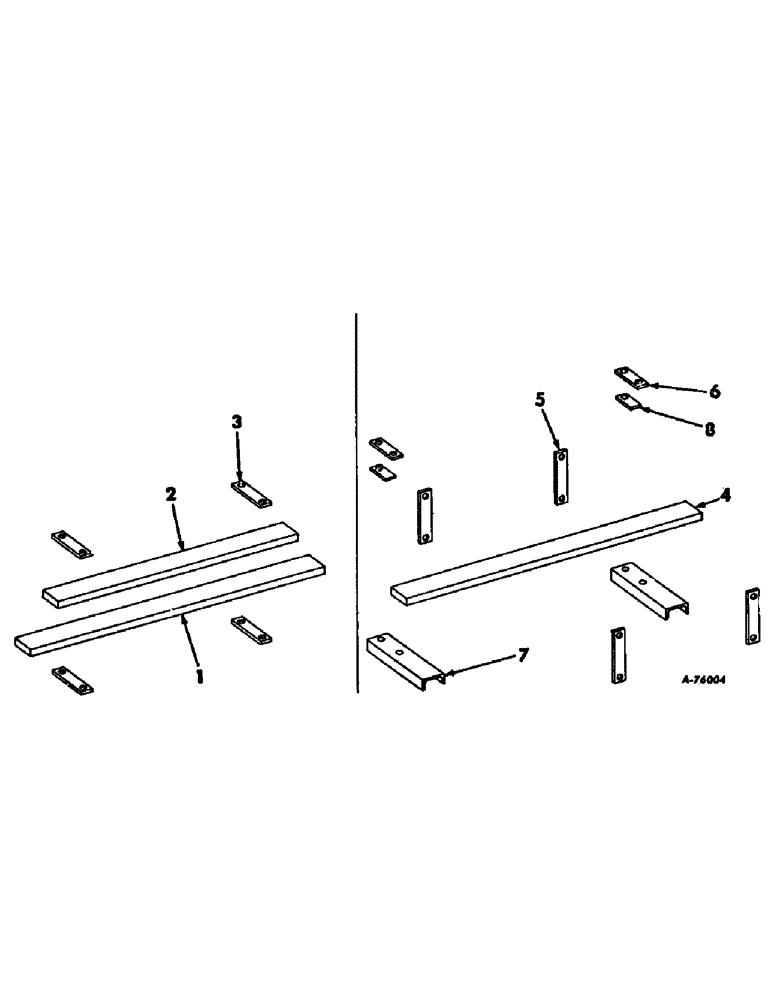

Запчасти Case IH 228 (A-35) - WEIGHTS COUNTER BALANCE, FOR USE W/91, 93, AND 203 COMBINES (58) - ATTACHMENTS/HEADERS

1

583740R1

BAR, counter balance weight, 91 combine

5шт.

2

629344R1

BAR, counter balance weight short, 91 combine

1шт.

3

583739R1

STRAP, counter balance weight, 91 combine

4шт.

22865R1

BOLT, 1/2 x 11 C-Z hex-hd mach

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

4

583740R1

BAR, counter balance weight, 93 & 203 combine

10шт.

5

634637R1

STRAP, counter balance weight tie, 93 & 203 combine

4шт.

6

634638R1

STRAP, counter balance weight upper, 93 & 203 combine

2шт.

7

634639R1

CHANNEL, counter balance weight, 93 & 203 combine

2шт.

20175R1

BOLT, 1/2 x 6-1/2 C-Z hex-hd mach

4шт.

22863R1

BOLT, 1/2 x 11-1/2 C-Z hex-hd mach

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

8

654728R1

WASHER, counter balance weight filler, 93 & 203 combine

2шт.
