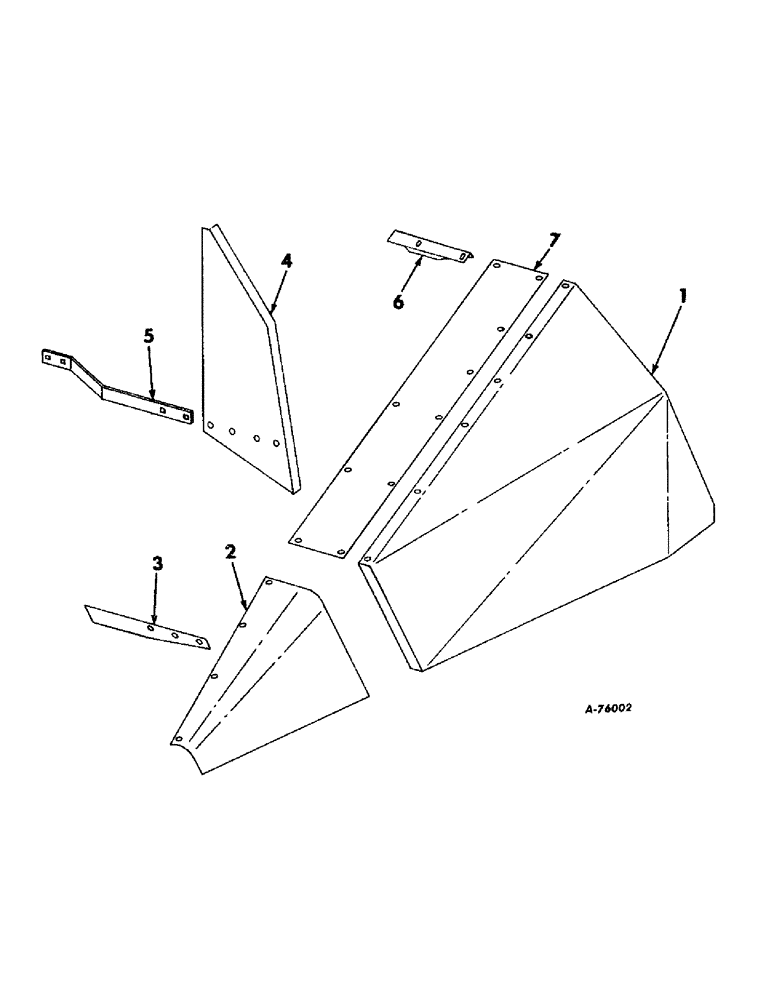

Запчасти Case IH 228 (A-25) - WHEEL SHIELD (58) - ATTACHMENTS/HEADERS

1

632240R91

SHIELD ASSY, wheel LH

1шт.

1

632241R91

SHIELD ASSY, wheel RH, 227CH serial no. 5355 and below, 228CH serial no. 9971 and below, 229CH serial no. 1308 and below

1шт.

1

166997C91

SHIELD ASSY, wheel LH

1шт.

1

166998C91

SHIELD ASSY, wheel RH, low silhouette corn heads, 227CH serial no. 5356 and above, 228CH serial no. 9972 and above, 229CH serial no. 1309 and above

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

1шт.

2

632247R91

EXTENSION ASSY, wheel shield LH

1шт.

2

632248R91

EXTENSION ASSY, wheel shield RH, 227CH serial no. 5355 and below, 228CH serial no. 9971 and below, 229CH serial no. 1308 and below

1шт.

2

165061C91

EXTENSION ASSY, wheel shield LH

1шт.

2

165062C91

EXTENSION ASSY, wheel shield RH, low silhouette corn heads, 227CH serial no. 5356 and above, 228CH serial no. 9972 and above, 229CH serial no. 1309 and above

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

1шт.

3

634393R1

BRACE, wheel shield extension LH

1шт.

3

634394R1

BRACE, wheel shield extension RH

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

2шт.

271501

SOCKET

NUT, 7/16 C-Z hex

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

4

632255R1

BRACKET, wheel shield LH

1шт.

4

632256R1

BRACKET, wheel shield RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

1шт.

5

632257R1

BRACE, wheel shield

2шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 C-Z sq-nk crg

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

21029R1

WASHER

15/32 x 1 x 11 ga C-Z

4шт.

6

632258R1

ANGLE, feeder frame extension LH, 227 corn head for 205 or 315 combine, 228 corn head

1шт.

6

632259R1

ANGLE, feeder frame extension RH, 227 & 228 corn heads

1шт.

6

632261R1

ANGLE, feeder frame extension LH, 227 corn head

1шт.

6

632262R1

ANGLE, feeder frame extension RH, 227 corn head for 91, 93, 105 or 203 combines

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

7

632260R1

FILLER, wheel shield, 227 corn head for 91, 93, 105 or 203 combines, 2 used 229CH

1шт.

7

632263R1

FILLER, wheel shield, 1 used 227 corn head, 2 used 229 corn head, 227CH serial no. 5355 and below, 229CH serial no. 1308 and below

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

1шт.
