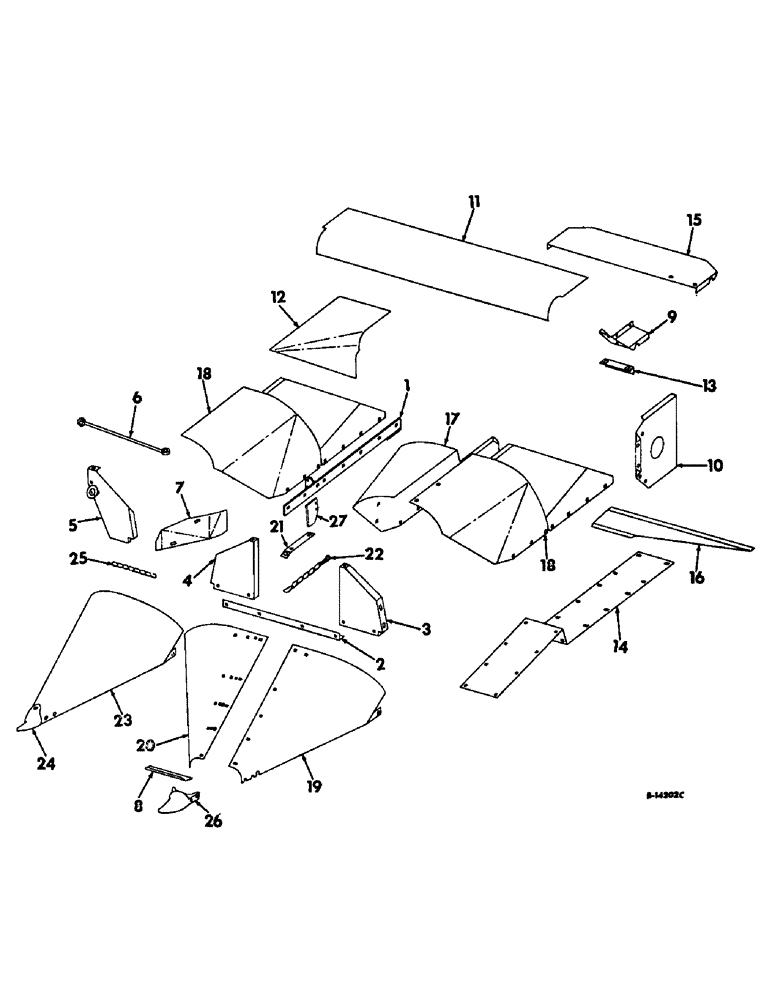

Запчасти Case IH 228 (A-22) - GATHERER SHEETS AND DIVIDERS (58) - ATTACHMENTS/HEADERS

1

632216R91

SUPPORT ASSY, gatherer shield LH

2шт.

1

632217R91

SUPPORT ASSY, gatherer shield RH

2шт.

20897R1

BOLT,Short NK, 3/8"-16 x 2 1/2", G2

3/8 x 2-1/2 C-Z sq-nk crg

8шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

2

589487R1

ANGLE, gatherer bracket tie

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

3

589888R1

BRACKET, inner gatherer shield RH, 227CH serial no. 5355 and below, 228CH serial no. 9971 and below, 229CH serial no. 1308 and below

1шт.

3

164938C1

SUPPORT, inner gatherer shield RH, low silhouette corn heads, 227CH serial no. 5356 and above, 228CH serial no. 9972 and above, 229CH serial no. 1309 and above

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

589887R1

BRACKET, inner gatherer shield LH, 227CH serial no. 5355 and below, 228CH serial no. 9971 and below, 229CH serial no. 1308 and below

1шт.

4

164937C1

SUPPORT, inner gatherer shield LH, low silhouette corn heads, 227CH serial no. 5356 and above, 228CH serial no. 9972 and above, 229CH serial no. 1309 and above

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

589889R91

BRACKET ASSY, outer gatherer shield LH

1шт.

5

589890R91

BRACKET ASSY, outer gatherer shield RH, 227CH serial no. 5355 and below, 228CH serial no. 9971 and below, 229CH serial no. 1308 and below

1шт.

5

164939C91

BRACKET ASSY, outer gatherer shield LH

1шт.

5

164940C91

BRACKET ASSY, outer gatherer shield RH, low silhouette corn heads, 227CH serial no. 5356 and above, 228CH serial no. 9972 and above, 229CH serial no. 1309 and above

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

6

587002R1

BRACE, outer gatherer shield support LH

1шт.

6

587003R1

BRACE, outer gatherer shield support RH

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

7

632220R2

PLATE, divider hinge LH

2шт.

7

632221R2

PLATE, divider hinge RH, 227CH serial no. 5355 and below, 228CH serial no. 9971 and below, 229CH serial no. 1308 and below

2шт.

7

164935C1

STRIP, divider hinge LH

2шт.

7

164936C1

STRIP, divider hinge RH, low silhouette corn heads, 227CH serial no. 5356 and above, 228CH serial no. 9972 and above, 229CH serial no. 1309 and above

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

4шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

4шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

8

626604R1

BRACE, divider

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

9

654849R2

BOTTOM, beater outer LH

1шт.

9

654850R2

BOTTOM, beater outer RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

4шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

4шт.

10

634467R1

SIDE, beater LH

1шт.

10

634468R1

SIDE, beater RH

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

8шт.

120376

NUT,5/16"-18, G5

8шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

8шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

11

935631R91

COVER ASSY, beater

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

10шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 C-Z med lock

8шт.

12

632223R1

EXTENSION, beater cover LH

1шт.

12

632224R1

EXTENSION, beater cover RH, 228CH and 229CH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

14шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

14шт.

13

632222R1

ANGLE, beater cover extension

2шт.

14

653929R11

FILLER ASSY, center gatherer shield, 227CH serial no. 5355 and below, 228CH serial no. 9971 and below, 229CH serial no. 1308 and below

1шт.

14

165072C11

FILLER ASSY, center gatherer shield, low silhouette corn heads, 227CH serial no. 5356 and above, 228CH serial no. 9972 and above, 229CH serial no. 1309 and above

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

14шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

14шт.

15

152119C91

BOTTOM ASSY, beater

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

2шт.

120376

NUT,5/16"-18, G5

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

16

653881R1

EXTENSION, beater bottom, 227CH serial no. 5355 and below, 228CH serial no. 9971 and below, 229CH serial no. 1308 and below

1шт.

16

150344C1

EXTENSION, beater bottom, low silhouette corn heads, 227CH serial no. 5356 and above, 228CH serial no. 9972 and above, 229CH serial no. 1309 and above

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

14шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

14шт.

17

654311R91

SHIELD ASSY, gatherer LH, 227CH serial no. 5355 and below, 228CH serial no. 9971 and below, 229CH serial no. 1308 and below

2шт.

17

164927C91

SHIELD ASSY, gatherer inner LH

1шт.

17

164931C91

SHIELD ASSY, gatherer outer LH, low silhouette corn heads, 227CH serial no. 5356 and above, 228CH serial no. 9972 and above, 229CH serial no. 1309 and above

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

4шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

4шт.

18

654312R91

SHIELD ASSY, gatherer RH, 227CH serial no. 5355 and below, 228CH serial no. 9971 and below, 229CH serial no. 1308 and below

2шт.

18

164928C91

SHIELD ASSY, gatherer inner RH

1шт.

18

164932C91

SHIELD ASSY, gatherer outer RH, low silhouette corn heads, 227CH serial no. 5356 and above, 228CH serial no. 9972 and above, 229CH serial no. 1309 and above

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

4шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

4шт.

19

589504R91

DIVIDER ASSY.

DIVIDER ASSY, center LH

1шт.

17148R1

BOLT,Short NK, 1/2"-13 x 2 1/4", G2

1/2 x 2-1/4 C-Z sq-nk crg

1шт.

19676R1

LOCK NUT,1/2"-13, GB

NUT, 1/2 znp nylon insert

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

6шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

6шт.

20

589505R91

DIVIDER ASSY.

DIVIDER ASSY, center RH

1шт.

17148R1

BOLT,Short NK, 1/2"-13 x 2 1/4", G2

1/2 x 2-1/4 C-Z sq-nk crg

1шт.

19676R1

LOCK NUT,1/2"-13, GB

NUT, 1/2 znp nylon insert

1шт.

21

589508R1

BRACE, center divider adjusting chain

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

2шт.

22

589509R91

CHAIN, center divider adjusting coil

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

1шт.

23

589510R92

DIVIDER ASSY.

DIVIDER W/POINT ASSY OUTER LH, includes ref no. 24

1шт.

23

589511R92

DIVIDER ASSY.

DIVIDER W/POINT ASSY, outer RH, includes ref no. 24

1шт.

15340R1

BOLT, 1/2 x 6-1/2 C-Z sq-nk crg

2шт.

19676R1

LOCK NUT,1/2"-13, GB

NUT, 1/2 znp nylon insert

2шт.

24

U911

POINT, outer divider LH

1шт.

24

U912

END ASSY.

POINT, outer divider RH

1шт.

18686R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 2 1/4", Gr 2

BOLT, 3/8 x 2-1/4 C-Z sq-nk crg

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120697

SCREW, 1/4 x 3/4 C-Z slt-f-hd cap

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

25

589522R91

CHAIN, outer divider adjusting coil

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

2шт.

26

UB1526

POINT, center divider

1шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/4 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

27

161065C1

SEAL

SEAL, ear corn saver

4шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

8шт.

106969R1

WASHER

11/32 x 1-1/4 x 16 ga C-Z

8шт.
