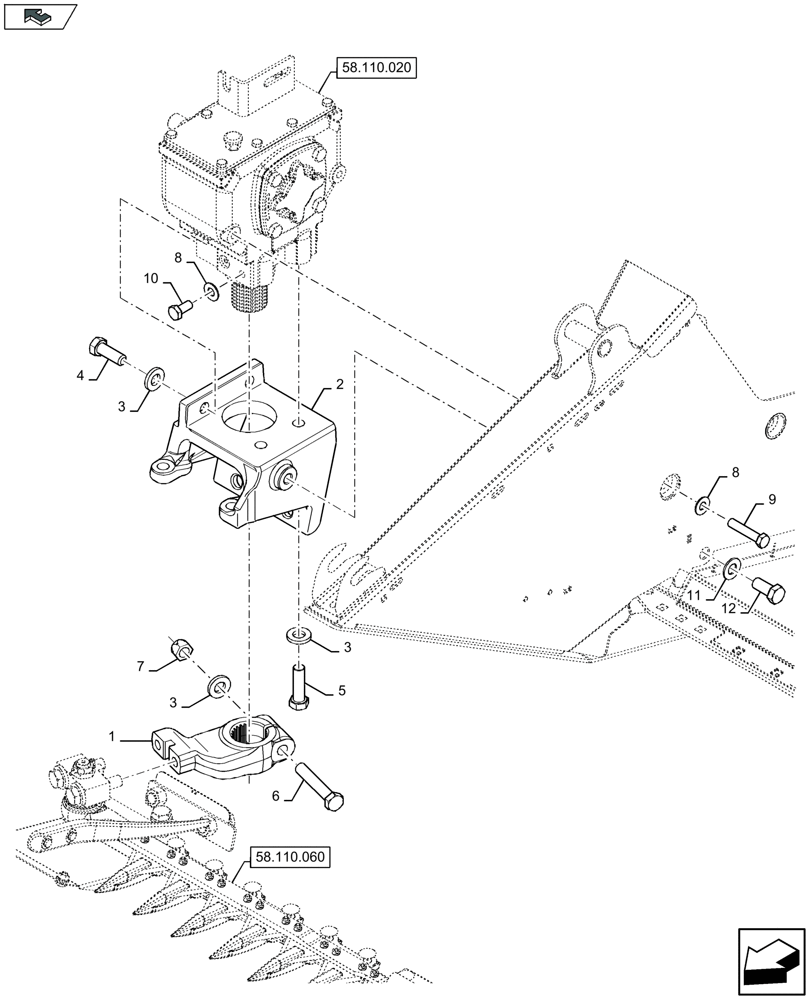

Запчасти Case IH 3050-41FT (58.110.040) - WOBBLE BOX, SUPPORT RH (58) - ATTACHMENTS/HEADERS

1

47390301

ARM

1шт.

MAINTENANCE PART

1шт.

2

84468776

SEAT

1шт.

3

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

5шт.

4

11391531

BOLT,Hex, M16 x 1.5 x 45mm, Cl 10.9, Full Thd

2шт.

5

15981031

BOLT,Hex, M16 x 1.5 x 55mm, Cl 10.9

2шт.

6

350616

BOLT,M16 x 2 x 90mm, Cl 8.8

1шт.

7

86000441

NUT,M16 x 2.0, Cl 8

1шт.

8

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

3шт.

9

309086

BOLT,Hex, M12 x 60, 8.8, Full Thd

2шт.

10

398792

SCREW,Hex, M12 x 25mm, Cl 10.9

1шт.

11

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

1шт.

12

86529976

BOLT,Hex, M16 x 35mm, Cl 10.9

1шт.
