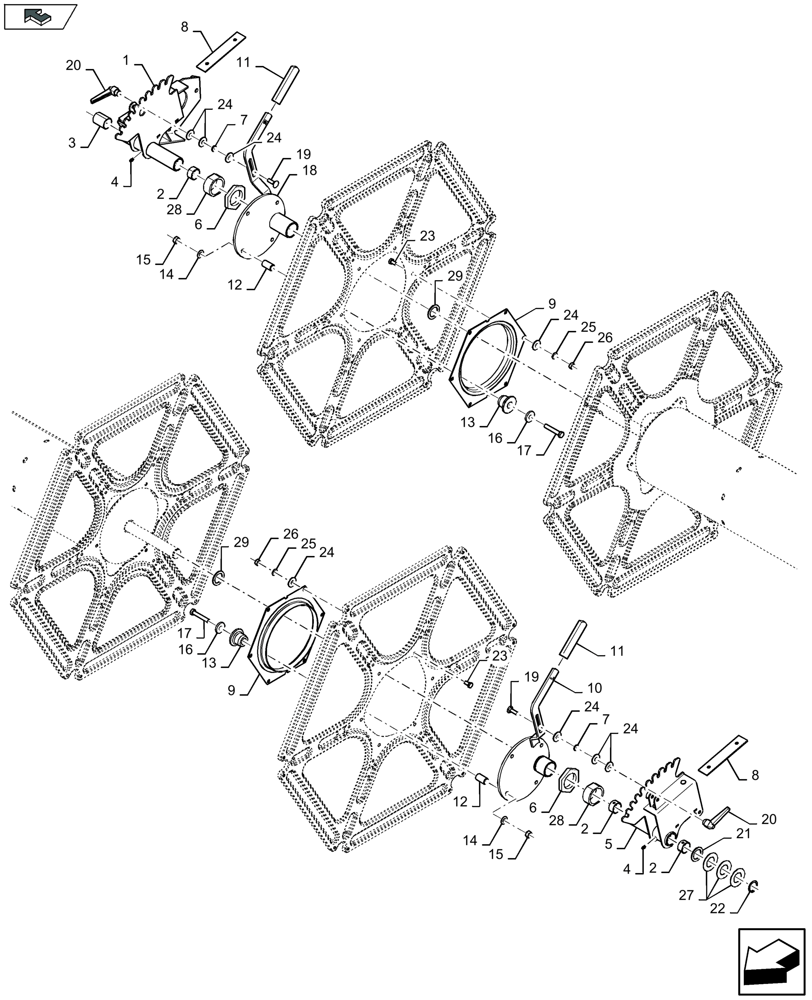

Запчасти Case IH 3050-41FT (58.101.090) - REEL SUPPORTS (58) - ATTACHMENTS/HEADERS

1

47460402

BRACKET

1шт.

2

9615969

SLEEVE,35mm ID x 39mm OD x 20mm L

3шт.

MAINTENANCE PART

1шт.

3

412365

BUSHING,35mm ID x 39mm OD x 50mm L

1шт.

MAINTENANCE PART

1шт.

4

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

2шт.

5

87542009

BRACKET

1шт.

6

47492671

NUT

2шт.

7

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

8

87647472

SLIDE

2шт.

MAINTENANCE PART

1шт.

9

84002761

DISC

2шт.

10

47491193

DISC

1шт.

11

332809

HANDLE GRIP

2шт.

12

436353

BUSHING,12.5mm ID x 22mm OD x 39mm OAL

8шт.

13

424230

BUSHING,Tapered Hat, 22.6mm ID x 40mm OD x 60mm OD x 38mm OAL

8шт.

MAINTENANCE PART

1шт.

14

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

8шт.

15

9706685

NUT,M12 x 1.75, Cl 8

8шт.

16

140085

WASHER,13mm ID x 38mm OD x 6.35mm Thk

8шт.

17

9706717

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

8шт.

18

47491888

DISC

1шт.

19

9833222

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

20

9832581

KNOB

2шт.

21

84075368

WASHER,35.7mm ID x 51mm OD x 3.5mm Thk

1шт.

22

370004

SNAP RING,M35 x 1.5mm Thk, External

1шт.

23

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

12шт.

24

140042

WASHER,11mm ID x 34mm OD x 3mm Thk

18шт.

25

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.

26

100016

NUT,M10 x 1.5, Cl 8

12шт.

27

84036395

WASHER,36mm ID x 66mm OD x 2.2mm Thk

3шт.

28

47500972

HUB

2шт.

29

324196

WASHER

2шт.
