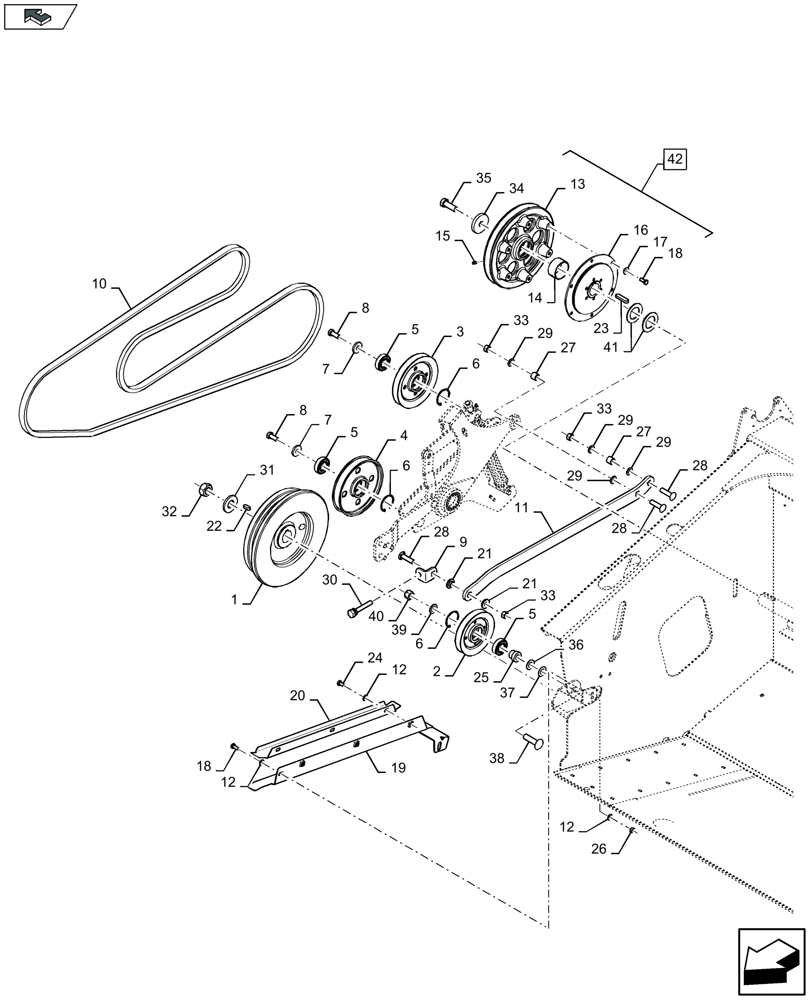

Запчасти Case IH 3050-41FT (58.100.440) - BELT DRIVE FOR CUTTERBAR, RH (58) - ATTACHMENTS/HEADERS

1

84223852

FLYWHEEL

1шт.

2

84489854

PULLEY,148mm OD

1шт.

3

84489857

PULLEY,176mm OD

1шт.

MAINTENANCE PART

1шт.

4

84489856

PULLEY,190mm OD

1шт.

MAINTENANCE PART

1шт.

5

34439

BALL BEARING,25 mm ID x 52 mm OD x 15 mm

3шт.

MAINTENANCE PART

1шт.

6

370011

CIRCLIP,M52 x 2mm Thk, Internal

3шт.

7

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

2шт.

8

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

9

87656043

SUPPORT

1шт.

10

84266080

V-BELT,22.32 mm W x 4250.00 mm L

1шт.

MAINTENANCE PART

1шт.

11

84468738

ROD

1шт.

12

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

13

84196881

PULLEY

1шт.

14

47457916

BUSHING

1шт.

15

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

1шт.

16

84196749

CLUTCH

1шт.

17

412650

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk

6шт.

18

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

7шт.

19

84468740

GUIDE

1шт.

20

84202449

GUIDE

1шт.

21

84243704

BUSHING

2шт.

MAINTENANCE PART

1шт.

22

368317

KEY,10mm x 8mm x 25mm

1шт.

23

170056

KEY,12mm W x 50mm OAL

1шт.

24

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

3шт.

25

84141758

SLEEVE

1шт.

26

9706690

NUT,M8 x 1.25, Cl 8

1шт.

27

84251049

BUSHING

2шт.

MAINTENANCE PART

1шт.

28

87698853

CARRIAGE BOLT,Sht Sq Nk, M12 x 50mm, Cl 10.9, Full Thd

3шт.

29

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

4шт.

30

87651588

BOLT,Hex Flg, M12 x 90mm, Low CST

1шт.

MAINTENANCE PART

1шт.

31

87016613

WASHER,25.8mm ID x 56.5mm OD x 6mm Thk

1шт.

32

12164521

NUT,Hex, M24, 2mm Pitch,19mm High, Cl 10

1шт.

33

87533547

NUT,Prev Torque, M12, 1.75mm Pitch, Cl 10

3шт.

34

9801067

WASHER,16.7mm ID x 63.5mm OD x 9.5mm Thk

1шт.

35

385922

BOLT,Hex, M16 x 2 x 45mm, Cl 8.8

1шт.

36

87524773

SHIM,16.3mm ID x 32mm OD x 1mm Thk

1шт.

37

87524771

SHIM,16.3mm ID x 32mm OD x 2mm Thk

1шт.

38

120046

CARRIAGE BOLT,M16 x 60mm, Cl 8.8

1шт.

39

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

1шт.

40

86000441

NUT,M16 x 2.0, Cl 8

1шт.

41

9838253

WASHER,40.5mm ID x 65mm OD x 2.99mm Thk

2шт.

42

47457967

PULLEY

Incl 13 - 18

1шт.
