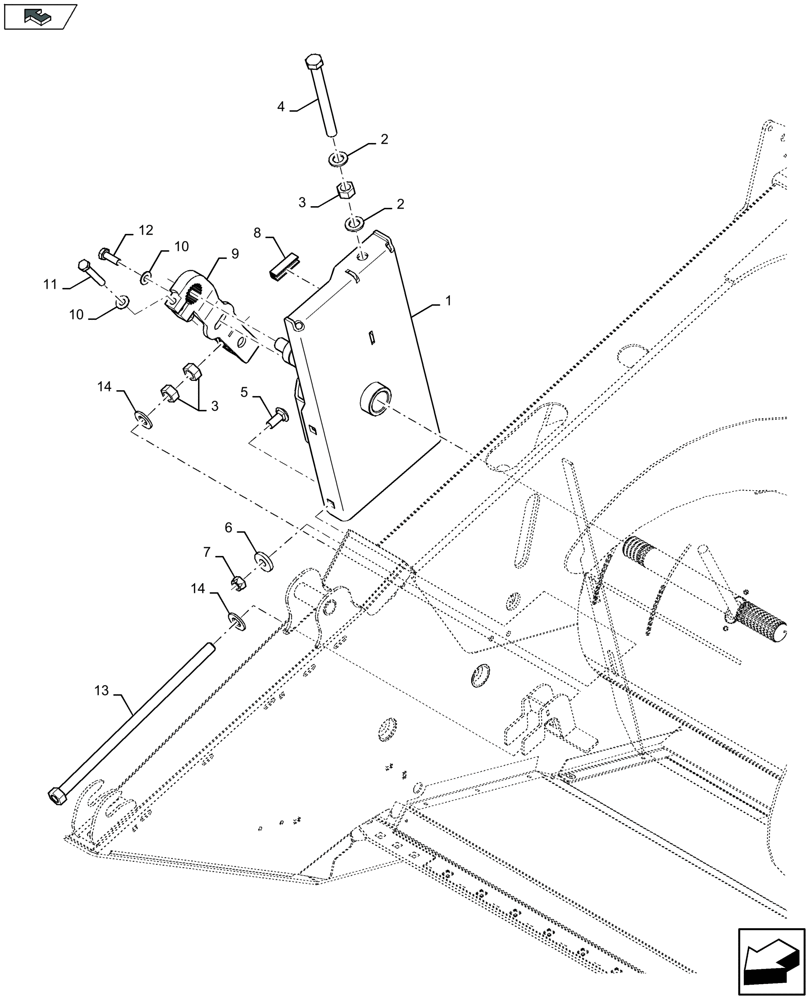

Запчасти Case IH 3050-41FT (58.100.240) - AUGER DRIVE, RIGHT-HAND SUPPORT (58) - ATTACHMENTS/HEADERS

1

47488501

SLIDE

1шт.

2

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

2шт.

3

100020

NUT,M16 x 2.0, Cl 8

3шт.

4

89835228

SCREW

1шт.

5

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

4шт.

6

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

4шт.

7

100038

NUT,M12 x 1.75, Cl 8

4шт.

8

9850033

SEAL

L = 0.08 M

1шт.

9

47572383

COUPLING

1шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

11

120071

BOLT,Hex, M10 x 65, 8.8

1шт.

12

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

1шт.

13

84294894

ROD

1шт.

14

378246

WASHER,17mm ID x 34mm OD x 3mm Thk

2шт.
