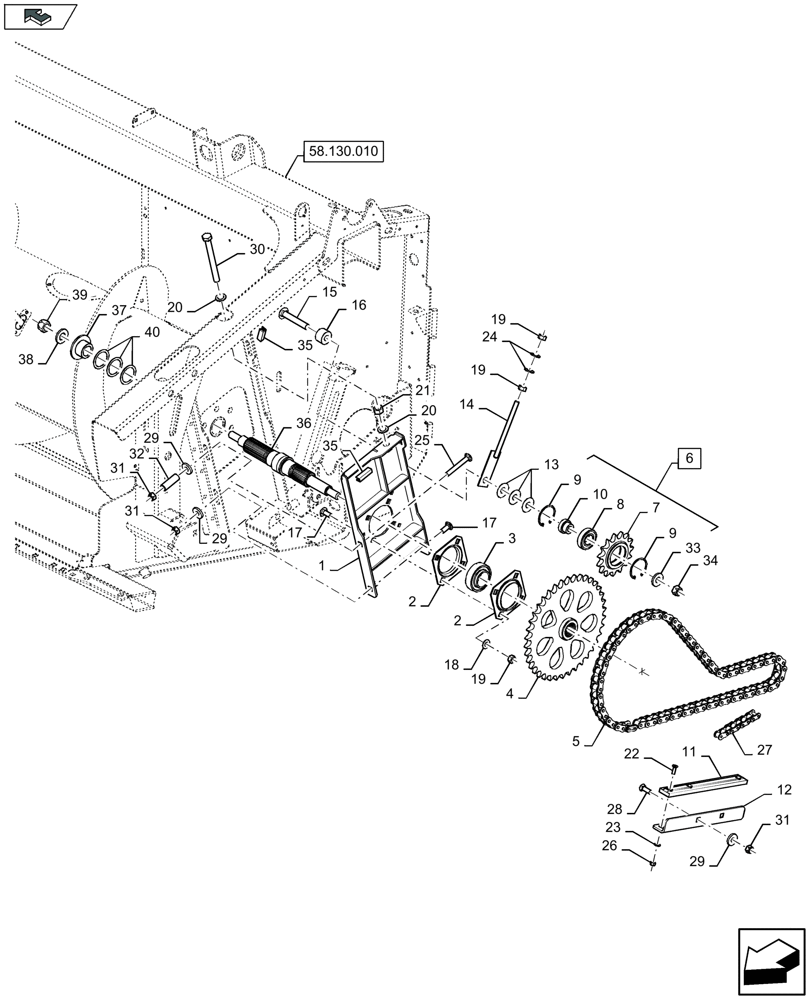

Запчасти Case IH 3050-41FT (58.100.230) - AUGER DRIVE, DRIVE CHAIN & LEFT-HAND SUPPORT (58) - ATTACHMENTS/HEADERS

1

84145533

SUPPORT

1шт.

2

86979948

FLANGE

2шт.

3

84125180

BALL BEARING,45mm ID x 85mm OD x 22mm W

1шт.

MAINTENANCE PART

1шт.

4

47579295

SPROCKET,38T

1шт.

MAINTENANCE PART

1шт.

4

47579289

SPROCKET,47T

1шт.

MAINTENANCE PART

1шт.

FOR AUGER LOW RPM KIT ONLY

1шт.

5

84267064

CHAIN,RC 80, 72 Links x 25.4mm = 1828.8mm

, Serial Range: -C061

1шт.

MAINTENANCE PART

1шт.

5

47798119

CHAIN

, Start Serial: D062

1шт.

MAINTENANCE PART

1шт.

6

84210960

TENSIONER

Incl 7 - 10

1шт.

MAINTENANCE PART

1шт.

7

84210098

SPROCKET

1шт.

8

210043

BALL BEARING,30mm ID x 62mm OD x 16mm W

1шт.

9

370012

RING,M62, Internal

2шт.

10

84210965

BUSHING

1шт.

11

84213929

WEAR STRIP

1шт.

MAINTENANCE PART

1шт.

12

84216772

ANGLE

1шт.

13

393062

WASHER,17mm ID x 45mm OD x 1mm Thk

3шт.

14

84221149

ROD ASSY.

1шт.

15

322362

CARRIAGE BOLT,M16 x 100mm, Cl 8.8

1шт.

16

87751682

BUSHING,16.5mm ID x 40mm OD x 26mm L

1шт.

17

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

7шт.

18

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

19

9706685

NUT,M12 x 1.75, Cl 8

6шт.

20

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

2шт.

21

100020

NUT,M16 x 2.0, Cl 8

1шт.

22

14442131

SCREW,Flat Csk Hd, M8 x 1.25 x 25mm, Cl 10.9

3шт.

23

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

24

378245

WASHER,13mm ID x 28.5mm OD x 2.7mm Thk

2шт.

25

334070

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 90mm, Cl 8.8

1шт.

26

86629542

NUT,M8 x 1.25, Cl 8.8

3шт.

27

84268316

CHAIN,RC 80, 7 Links x 25.4mm = 177.8mm

1шт.

MAINTENANCE PART

1шт.

FOR AUGER LOW RPM KIT ONLY

1шт.

28

87036813

PLOW BOLT,M12 x 35mm, Cl 10.9

2шт.

29

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

6шт.

30

89835228

SCREW

1шт.

31

100038

NUT,M12 x 1.75, Cl 8

6шт.

32

84162716

SLEEVE,12.5mm ID x 20mm OD x 58mm L

1шт.

33

325594

WASHER,M17 x 40mm OD x 5mm Thk

1шт.

34

86000441

NUT,M16 x 2.0, Cl 8

1шт.

35

9850033

SEAL

2шт.

36

47498466

DRIVE SHAFT

1шт.

37

47499177

BUSHING

1шт.

38

86639847

WASHER,21.8mm ID x 44.5mm OD x 5mm Thk

1шт.

39

380424

NUT,M20 x 2.5, Cl 8

1шт.

40

47556802

SHIM

3шт.
