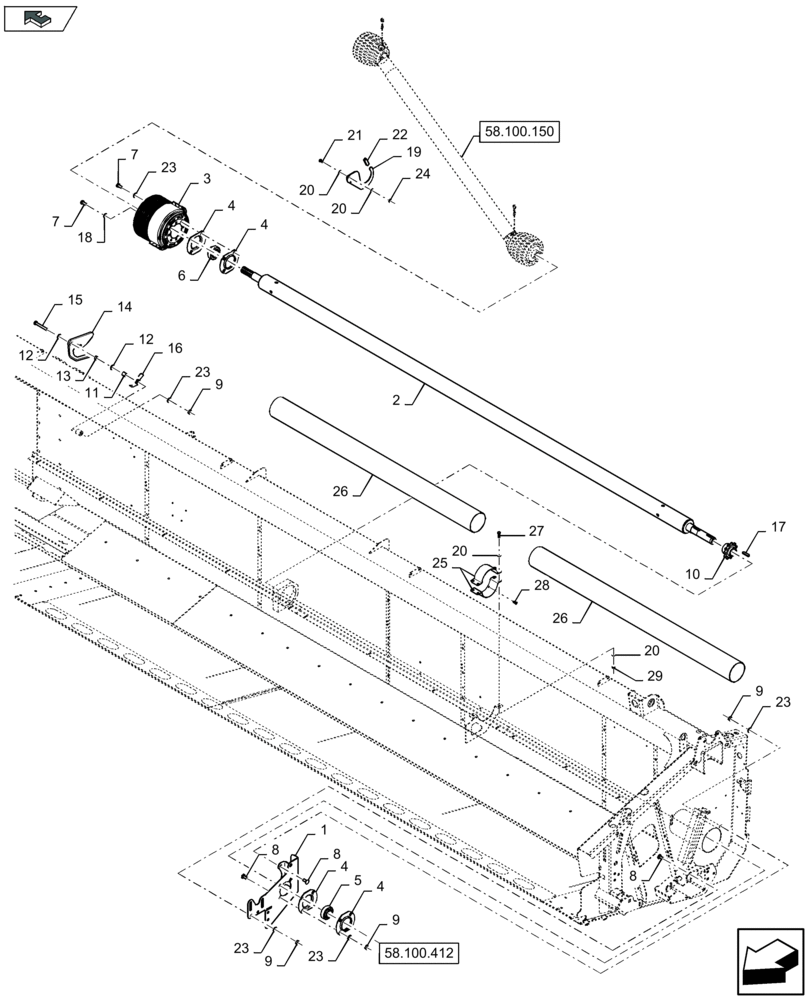

Запчасти Case IH 3050-41FT (58.100.030) - MAIN DRIVE SHAFT LH (58) - ATTACHMENTS/HEADERS

1

84212231

BRACKET

1шт.

2

84468758

SHAFT

1шт.

3

84267177

SHIELD

1шт.

4

86620027

FLANGED BEARING,80.02mm ID x 147.6mm OD x 4mm Thk

4шт.

5

84057307

BALL BEARING,40mm ID x 80mm OD x 21mm W

1шт.

MAINTENANCE PART

1шт.

6

84240146

BEARING,40mm ID x 80mm OD x 21mm W

1шт.

MAINTENANCE PART

1шт.

7

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

4шт.

8

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

10шт.

9

9706685

NUT,M12 x 1.75, Cl 8

11шт.

10

84176439

SPROCKET ASSY.

1шт.

MAINTENANCE PART

1шт.

11

86553411

SPACER,13.49mm ID x 18.97mm OD x 23.88mm L

1шт.

12

86625254

WASHER,13.5mm ID x 28mm OD x 2.5mm Thk

2шт.

13

86622548

SPACER,13.55mm ID x 19.01mm OD x 10.79mm L

1шт.

14

87033816

CLIP

1шт.

15

86508581

BOLT,Hex, M12 x 90mm, Cl 8.8

1шт.

16

87026147

SPRING

1шт.

17

170056

KEY,12mm W x 50mm OAL

1шт.

18

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

19

84313189

HOOK

1шт.

20

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

12шт.

21

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

22

9850033

SEAL

1шт.

23

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

13шт.

24

9706690

NUT,M8 x 1.25, Cl 8

2шт.

25

47558310

CLAMP

2шт.

26

47551338

SHIELD

2шт.

27

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

,, Serial Range: -C023

4шт.

27

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

,, Start Serial: D024

4шт.

28

331619

SELF-TAP SCREW,Hex, M4.8 x 1.8 x 9.5mm

,, Start Serial: D032

4шт.

29

9706685

NUT,M12 x 1.75, Cl 8

,, Serial Range: -C023

4шт.

29

9706690

NUT,M8 x 1.25, Cl 8

,, Start Serial: D024

4шт.
