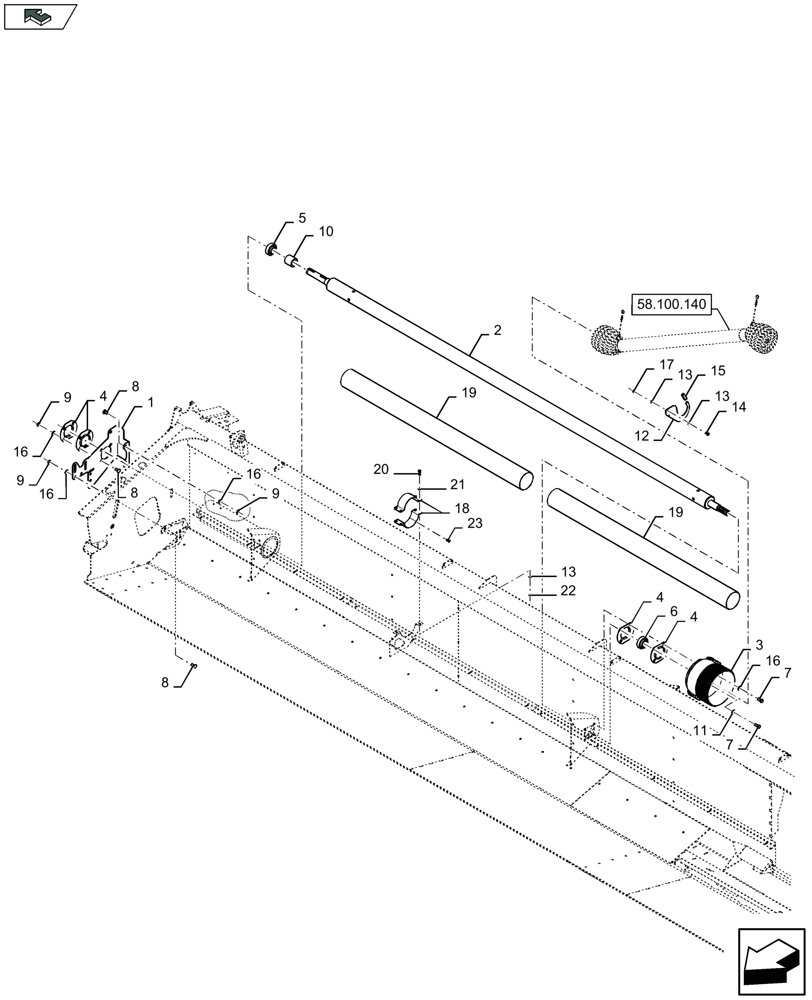

Запчасти Case IH 3050-41FT (58.100.020) - MAIN DRIVE SHAFT RH (58) - ATTACHMENTS/HEADERS

1

84468755

BRACKET

1шт.

2

84468758

SHAFT

1шт.

3

84267177

SHIELD

1шт.

4

86620027

FLANGED BEARING,80.02mm ID x 147.6mm OD x 4mm Thk

4шт.

5

84057307

BALL BEARING,40mm ID x 80mm OD x 21mm W

1шт.

MAINTENANCE PART

1шт.

6

84240146

BEARING,40mm ID x 80mm OD x 21mm W

1шт.

MAINTENANCE PART

1шт.

7

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

4шт.

8

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

10шт.

9

9706685

NUT,M12 x 1.75, Cl 8

10шт.

10

47532948

HUB

1шт.

11

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

12

84313189

HOOK

1шт.

13

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

14

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

15

9850033

SEAL

1шт.

16

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

12шт.

17

9706690

NUT,M8 x 1.25, Cl 8

2шт.

18

47558310

CLAMP

2шт.

19

47551338

SHIELD

2шт.

20

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

,, Serial Range: -C023

4шт.

20

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

,, Start Serial: D024

4шт.

21

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

,, Serial Range: -C023

8шт.

21

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

,, Start Serial: D024

8шт.

22

9706684

HOSE

,, Serial Range: -C023

4шт.

22

9706690

NUT,M8 x 1.25, Cl 8

,, Start Serial: D024

4шт.

23

331619

SELF-TAP SCREW,Hex, M4.8 x 1.8 x 9.5mm

, Start Serial: D032

4шт.
