(55.100.020) - HEADER, ELECTRICITY

Запчасти Case IH 3050-41FT (55.100.020) - HEADER, ELECTRICITY (55) - ELECTRICAL SYSTEMS

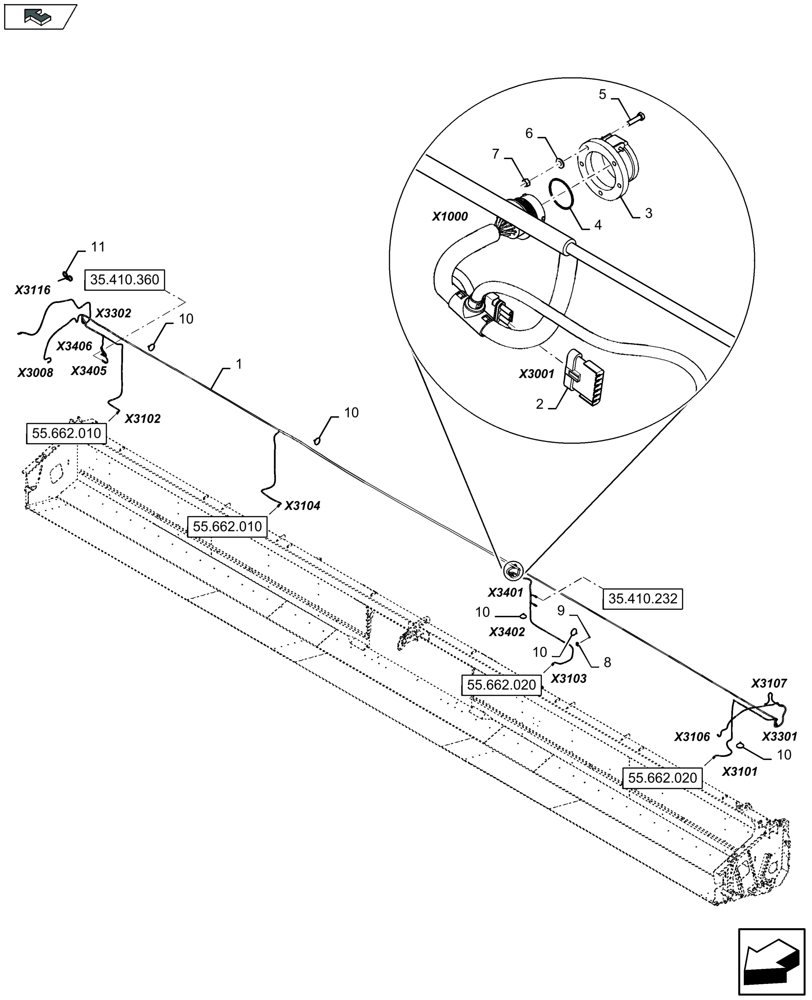

Схема запчастей Case IH 3050-41FT - (55.100.020) - HEADER, ELECTRICITY (55) - ELECTRICAL SYSTEMS
35.410.232
9
10
11
x3008
x3401
8
10
2
x3405
7
x3104
x3001
x3103
1
x3302
4
x3107
home
x3402
x3116
10
x3406
3
10
x1000
6
5
x3301
10
x3106
x3102
35.410.360
55.662.010
55.662.010
x3101
55.662.020
55.662.020
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84545720

WIRE HARNESS

, Serial Range: -C051

1шт.

SEE FIGURE 55.100.520

1шт.

1

47679847

WIRE HARNESS

, Start Serial: D052

1шт.

SEE FIGURE 55.100.520

1шт.

2

86837775

RESISTOR

1шт.

3

86606228

COVER

1шт.

4

84037188

O-RING,3mm Thk x 34.2mm ID, 70 Duro

1шт.

5

120098

BOLT,Hex, M5 x 20, 8.8, Full Thd

4шт.

6

322356

BELLEVILLE WASHER,M5 Bolt Size x 12mm OD x 1.85mm Thk

4шт.

7

86508813

NUT,M5, Cl 8

4шт.

8

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

26шт.

9

445394

RIVET,Pop, 3/16" x 1/2" OAL

26шт.

10

86566989

CABLE TIE,208mm L

77шт.

11

82013031

CABLE TIE,193mm L

, Start Serial: D052

5шт.

Выбрано товаров: 14
