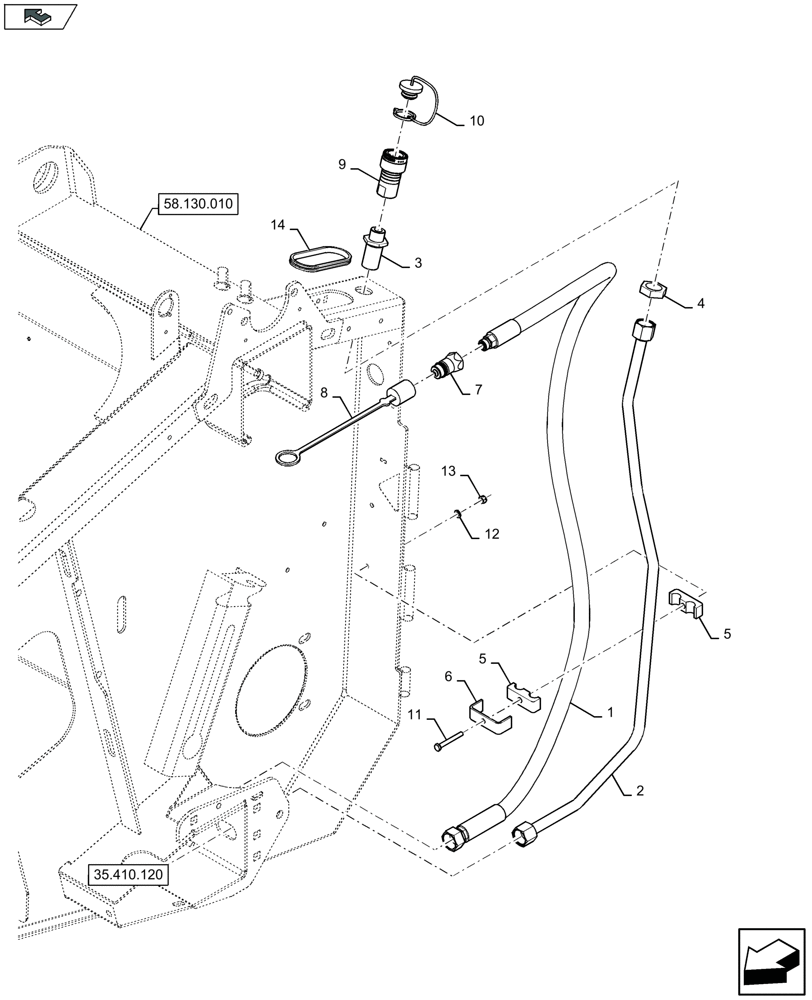

Запчасти Case IH 3050-41FT (35.410.370) - HYDRAULICS FOR VERTICAL KNIVES, LEFT-HAND SIDE (35) - HYDRAULIC SYSTEMS

1

84189138

HYDRAULIC HOSE

1шт.

2

84185390

HYD TUBE,16 mm OD

1шт.

3

87381299

HYD CONNECTOR

1шт.

4

86639085

BHD LOCK NUT,1"-14, Bulkhead

1шт.

5

430356

CLAMP

2шт.

6

84814948

SUPPORT

1шт.

7

86592080

QUICK MALE COUPLING

1шт.

8

86621124

DUST CAP

1шт.

9

86592079

COUPLING, QUICK, FEM

1шт.

10

86592083

DUST CAP

1шт.

11

412559

BOLT,Hex, M6 x 50mm, Cl 8.8, Full Thd

1шт.

12

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

13

353308

NUT,M6 x 1.0, Cl 8

1шт.

14

9850033

SEAL

1шт.
