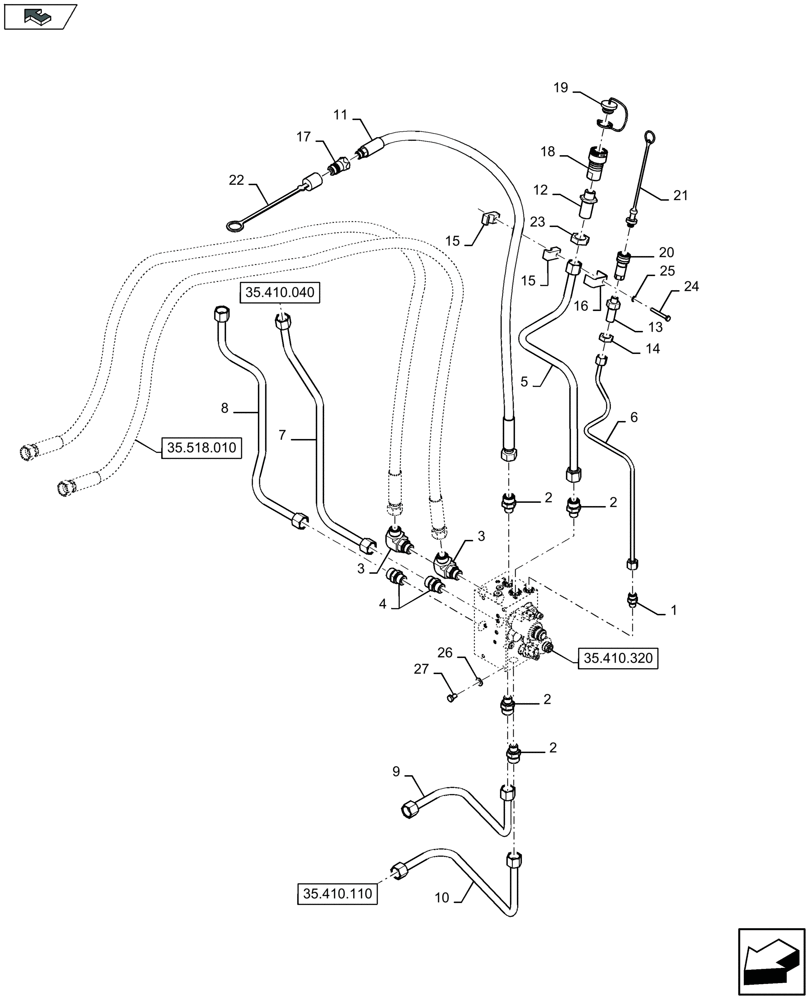

Запчасти Case IH 3050-41FT (35.410.360) - HYDRAULICS FOR VERTICAL KNIVES, RIGHT-HAND SIDE (35) - HYDRAULIC SYSTEMS

1

86579671

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORB

1шт.

2

86579679

HYD CONNECTOR,1"-14 ORFS x M18 x 1.5 ORB

4шт.

3

86579694

ELBOW,90 Degree, 1"-14 ORFS x M22 x 1.5 ORB

2шт.

4

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

2шт.

5

84481614

HYD TUBE

1шт.

6

84481615

HYD TUBE

1шт.

7

84481616

HYD TUBE

1шт.

8

84481617

HYD TUBE

1шт.

9

84481618

HYD TUBE

1шт.

10

84481619

HYD TUBE

1шт.

11

47609248

HOSE

1шт.

12

87381299

HYD CONNECTOR

1шт.

13

87381297

HYD CONNECTOR

1шт.

14

87010704

BHD LOCK NUT,11/16"-16

1шт.

15

433007

CLAMP

2шт.

16

433100

SUPPORT

1шт.

17

86592080

QUICK MALE COUPLING

1шт.

18

86592079

COUPLING, QUICK, FEM

1шт.

19

86592083

DUST CAP

1шт.

20

86592081

COUPLING, QUICK, FEM

1шт.

21

86592085

DUST CAP

1шт.

22

86621124

DUST CAP

1шт.

23

86639085

BHD LOCK NUT,1"-14, Bulkhead

1шт.

24

412559

BOLT,Hex, M6 x 50mm, Cl 8.8, Full Thd

1шт.

25

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

26

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

27

86624003

BOLT,Hex, M8 x 14mm, Cl 8.8, Full Thd

4шт.
