Запчасти Case IH 3050-41FT (05.100.04[03A]) - MAINTENANCE PARTS, CUTTER BAR (05) - SERVICE & MAINTENANCE

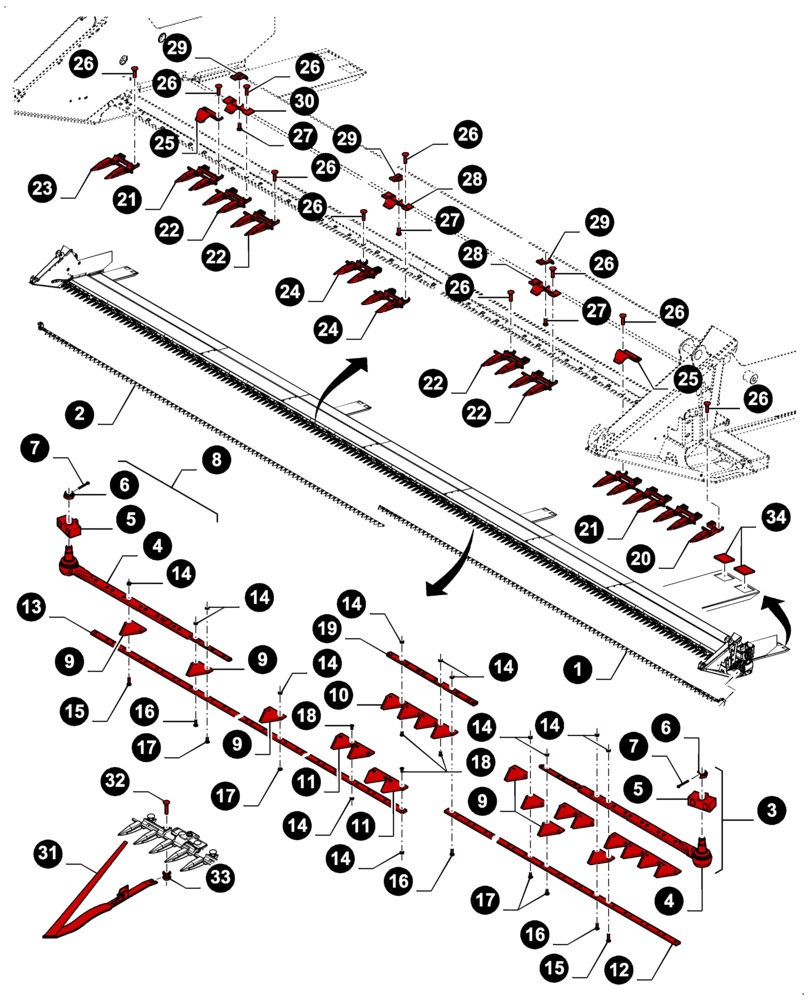

Схема запчастей Case IH 3050-41FT - (05.100.04[03A]) - MAINTENANCE PARTS, CUTTER BAR (05) - SERVICE & MAINTENANCE
14
9
34
9
29
22
27
28
24
18
22
22
26
27
22
14
19
20
14
18
4
10
29
21
14
9
14
31
26
17
11
14
5
1
8
21
16
6
25
30
27
29
17
16
26
26
7
16
32
11
14
26
25
26
33
26
12
4
15
23
26
9
2
28
14
6
17
13
26
15
7
24
3
14
26
5

Артикул

Название

Примечание

Количество

1

47626238

KNIFE ASSY

Incl 3, 9, 12, 14 - 19, Serial Range: -C061

1шт.

1

47702535

KNIFE ASSY

Incl 3, 9, 12, 14 - 19, Serial Range: -F062104

1шт.

1

48015511

KNIFE

Incl 3, 9, 12, 14 - 19, Start Serial: D105

1шт.

2

47626233

KNIFE ASSY

Incl 8 - 11, 13 - 18, Serial Range: -C061

1шт.

2

47702533

KNIFE ASSY

Incl 8 - 11, 13 - 18, Serial Range: -F062104

1шт.

2

48015509

KNIFE

Incl 8 - 11, 13 - 18, Start Serial: D105

1шт.

3

47431001

CUTTERHEAD

Incl 4 - 7

1шт.

4

NSS

NOT SOLD SEPARAT

1шт.

5

47390299

BLOCK

1шт.

6

87604453

CROWN NUT

1шт.

7

300595

COTTER PIN,M4 x 40

1шт.

8

47431001

CUTTERHEAD

Incl 4 - 7

1шт.

9

87728899

KNIFE SECTION

, Serial Range: -C104

158шт.

9

47980548

KNIFE SECTION

, Start Serial: D105

158шт.

9

87728900

KNIFE SECTION

, Serial Range: -C104

158шт.

FOR GREEN CONDITIONS ONLY

1шт.

9

47983317

KNIFE SECTION

, Start Serial: D105

158шт.

FOR GREEN CONDITIONS ONLY

1шт.

10

84468783

KNIFE SECTION

, Serial Range: -C061

4шт.

10

47702538

KNIFE SECTION

, Serial Range: -F062104

4шт.

10

47980555

KNIFE SECTION

, Start Serial: D105

4шт.

10

84468837

KNIFE SECTION

, Serial Range: -C061

4шт.

FOR GREEN CONDITIONS ONLY

1шт.

10

47765133

KNIFE SECTION

, Serial Range: -F062104

4шт.

FOR GREEN CONDITIONS ONLY

1шт.

10

47983319

KNIFE SECTION

, Start Serial: D105

4шт.

FOR GREEN CONDITIONS ONLY

1шт.

11

84468785

KNIFE SECTION

, Serial Range: -C061

4шт.

11

47702539

KNIFE SECTION

, Serial Range: -F062104

4шт.

11

47980557

KNIFE SECTION

, Start Serial: D105

4шт.

11

84468833

KNIFE SECTION

, Serial Range: -C061

4шт.

FOR GREEN CONDITIONS ONLY

1шт.

11

47765134

KNIFE SECTION

, Serial Range: -F062104

4шт.

FOR GREEN CONDITIONS ONLY

1шт.

11

47983320

KNIFE SECTION

, Start Serial: D105

4шт.

FOR GREEN CONDITIONS ONLY

1шт.

12

84468782

STRIP

1шт.

13

84468768

STRIP

, Serial Range: -C061

1шт.

13

47702537

KNIFE

, Start Serial: D062

1шт.

14

84429102

LOCK NUT

344шт.

15

84429101

SCREW,Pan HD, M6 x 28mm, Cl 10.9

18шт.

16

84429100

SCREW,Pan HD, M6 x 22mm, Cl 10.9

12шт.

17

87663841

SCREW,Pan HD, M6 x 18mm, Cl 10.9

287шт.

18

87470018

SCREW,FLAT, M6 x 14.5mm, Cl 10.9

, Serial Range: -C061

15шт.

18

47703871

SCREW

, Start Serial: D062

15шт.

19

84468838

KNIFE BACK

, Serial Range: -C061

1шт.

19

47702540

KNIFE BACK

, Start Serial: D062

1шт.

20

918222

FINGER KNIFE

1шт.

21

916328

FINGER KNIFE

6шт.

22

379720

FINGER KNIFE

71шт.

23

47464568

FINGER

1шт.

24

86615983

GUARD

4шт.

25

87517382

BRACKET

2шт.

26

43473

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

166шт.

27

87742342

PLOW BOLT,M10 x 1.5 x 30mm, Class 10.9

38шт.

28

86630786

KNIFE CLIP,Heat Treated

20шт.

29

86630787

KNIFE CLIP

38шт.

30

84184577

KNIFE CLIP

18шт.

31

84134059

CROP LIFTER

1шт.

32

374892

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8

1шт.

33

89514326

NUT

1шт.

34

87720537

WEAR STRIP

1шт.

Выбрано товаров: 62
