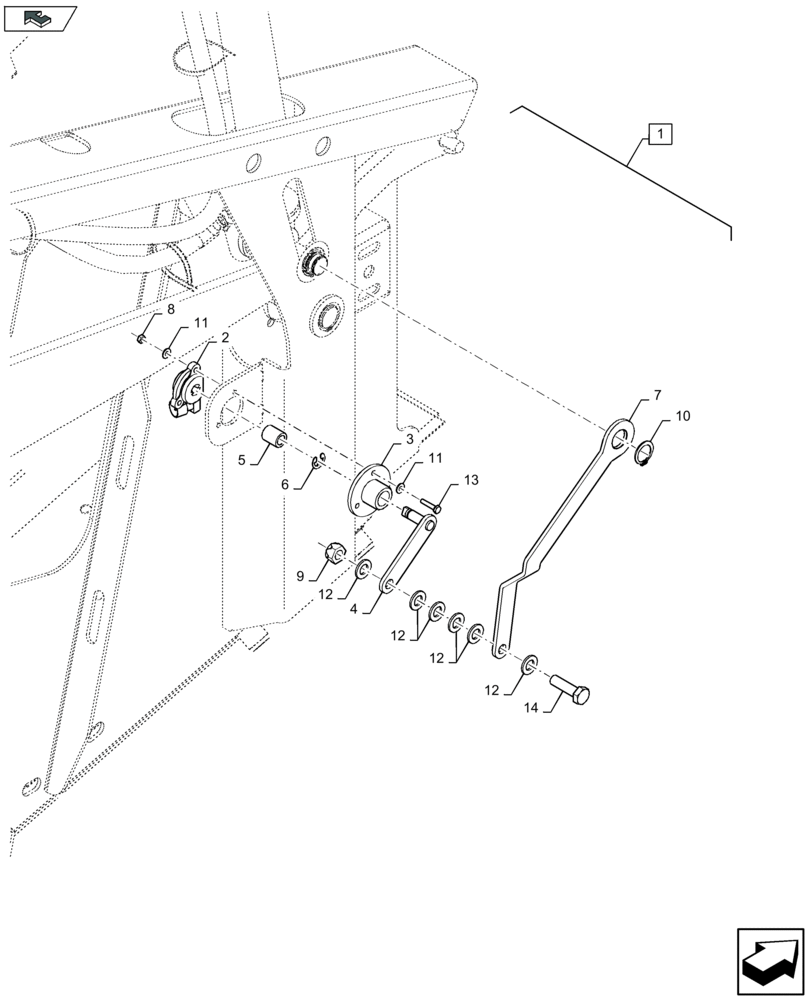

Запчасти Case IH 3050-41FT (88.058.075) - DIA KIT : KNIFE POSITION SENSOR (88) - ACCESSORIES

1

47472842

DIA KIT, HARVESTER

Incl 2 - 14

1шт.

2

86977396

POTENTIOMETER,3000 Ohm, 16 VDC

1шт.

3

87715239

BUSHING

1шт.

4

84128463

ARM

1шт.

5

86516740

BUSHING,9.55mm ID x 15.93mm OD x 19.05mm L

1шт.

6

86000439

SNAP RING,0.288" ID x 0.66" OD x 0.037" Thk, External

1шт.

7

47470902

ARM

1шт.

8

100012

NUT,M4 x 0.7, Cl 8

2шт.

9

100037

LOCK NUT,M10 x 1.5, Cl 8

1шт.

10

370024

CIRCLIP,M20, Ext

1шт.

11

322355

BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk

4шт.

12

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

13

412255

BOLT,Hex, M4 x 20mm, Cl 8.8

2шт.

14

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

1шт.
