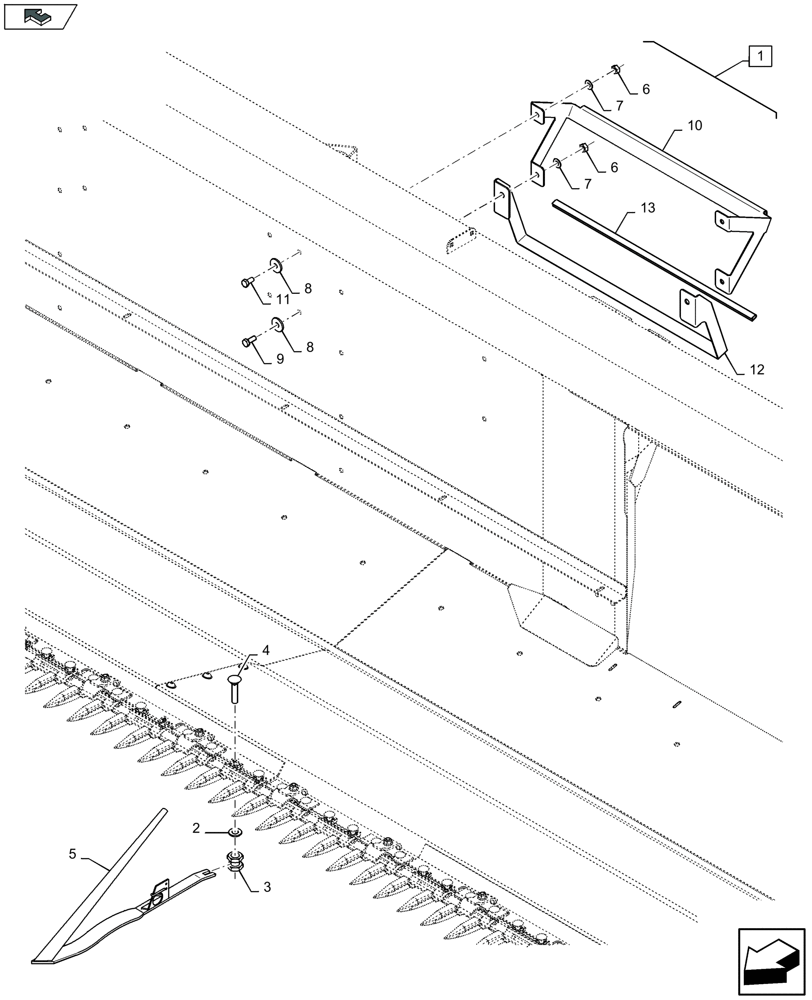

Запчасти Case IH 3050-41FT (88.058.063) - DIA KIT : CROPLIFTER SET - WHITE (88) - ACCESSORIES

1

84398801

DIA KIT, HARVESTER

Incl 2 - 13

1шт.

2

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

40шт.

3

9514326

NUT

40шт.

4

374892

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8

40шт.

5

84134059

CROP LIFTER

40шт.

6

100016

NUT,M10 x 1.5, Cl 8

8шт.

7

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

8

140042

WASHER,11mm ID x 34mm OD x 3mm Thk

8шт.

9

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

4шт.

10

47549560

SUPPORT

2шт.

11

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

4шт.

12

47549555

SUPPORT

1шт.

13

291186

PROTECTION STRIP,9.9mm W

L = 1.64 M

1шт.
