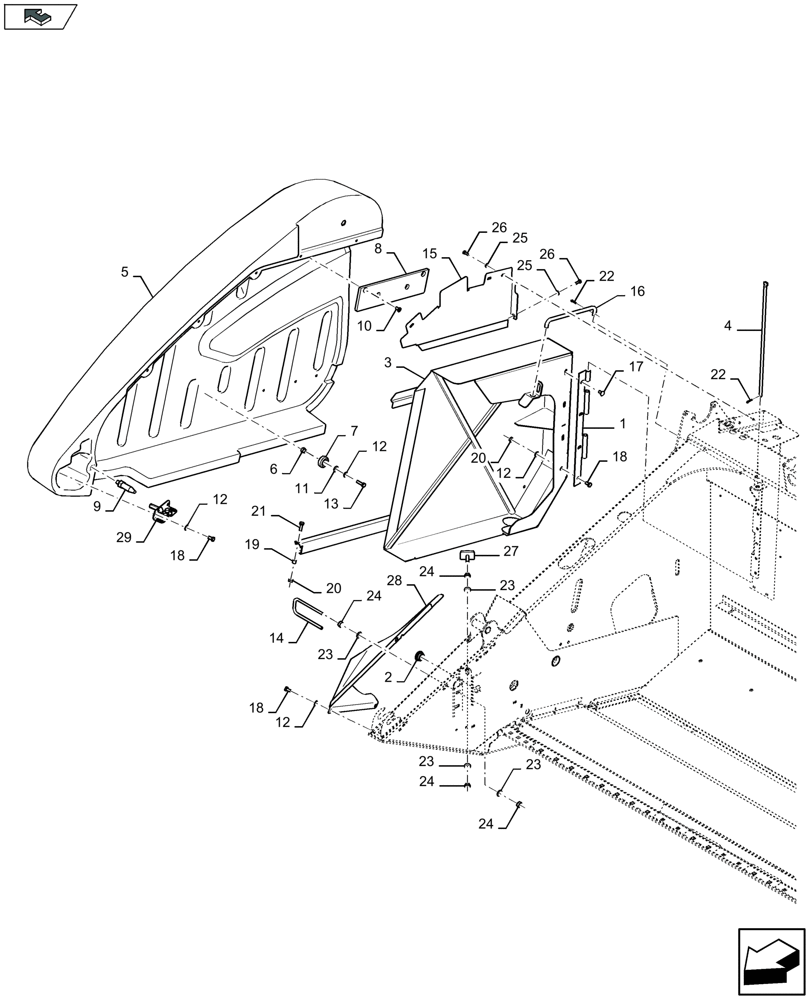

Запчасти Case IH 3050-41FT (58.208.050) - SHIELDING, RIGHT HAND SIDE (58) - ATTACHMENTS/HEADERS

1

84476520

HALF-HINGE

1шт.

2

87333239

BUSHING,20mm ID x 28.4mm OD x 15mm L

1шт.

3

84476518

DOOR

1шт.

4

87330714

ARTICULATED SHAFT

1шт.

5

84476517

SHIELD

1шт.

6

87749135

SLEEVE,8mm ID x 16mm OD x 17mm L

4шт.

7

87660430

ROLLER,40mm OD x 17mm L

4шт.

8

87660431

WEAR STRIP

1шт.

9

87749134

PIN

1шт.

10

84099422

HEX SOC SCREW,Flat Hd, CSK, M8 x 16mm, Cl 8.8

4шт.

11

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

4шт.

12

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

,, Serial Range: -C051

10шт.

12

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

,, Start Serial: D052

13шт.

13

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

4шт.

14

84246353

BRACKET

1шт.

15

84476524

PLATE

1шт.

16

87477474

ROD

1шт.

17

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

3шт.

18

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

,, Serial Range: -C051

3шт.

18

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

,, Start Serial: D052

6шт.

19

84801767

BUSHING

1шт.

20

9706690

NUT,M8 x 1.25, Cl 8

5шт.

21

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

22

130003

COTTER PIN,3mm OD x 30mm OAL

2шт.

23

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

24

100016

NUT,M10 x 1.5, Cl 8

8шт.

25

140015

WASHER,6.4mm ID x 14mm OD x 1.6mm Thk

4шт.

26

120100

BOLT,M6 x 20mm, Cl 8.8

3шт.

27

87541982

INSULATOR BLOCK

2шт.

28

47530772

SIDE PLATE

,, Start Serial: D052

1шт.

29

87659452

LOCK

1шт.
