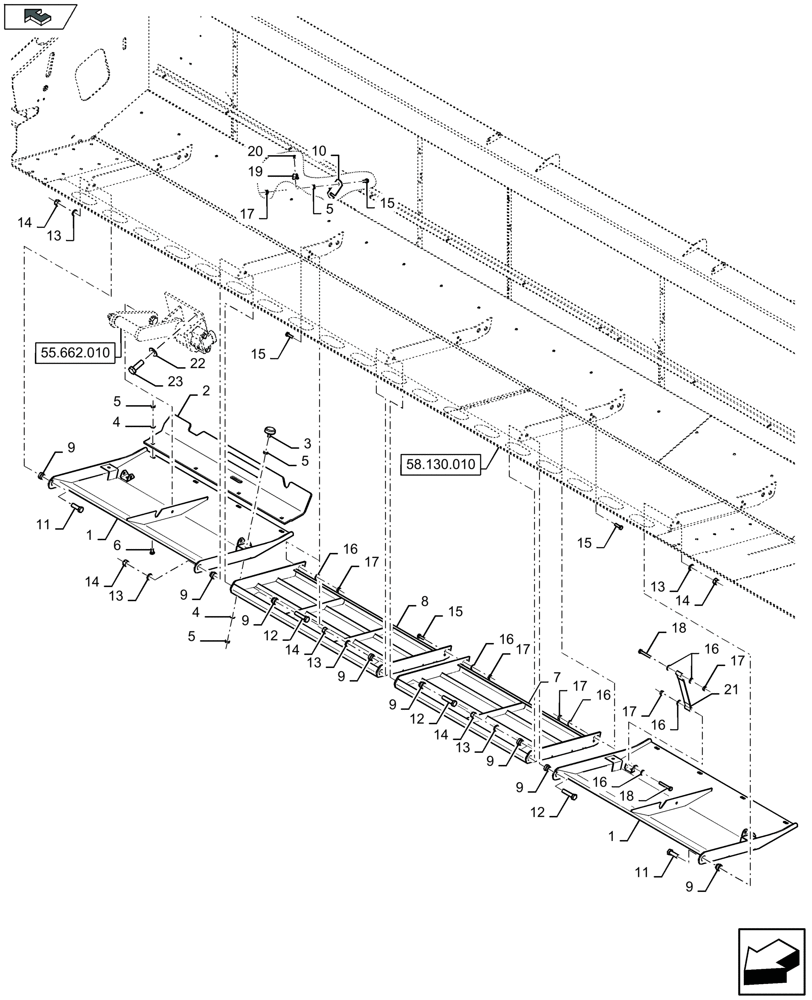

Запчасти Case IH 3050-41FT (58.130.260) - SKID PLATES, RIGHT-HAND SIDE (58) - ATTACHMENTS/HEADERS

1

47510186

SKID PLATE

2шт.

2

47454369

PLATE

2шт.

3

190029

STOP,M10 x 1.0 x 20mm OD, Rubber

4шт.

4

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.

5

100016

NUT,M10 x 1.5, Cl 8

18шт.

6

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

8шт.

7

47467291

SKID PLATE

1шт.

8

84587852

SKID PLATE

1шт.

9

87728003

BUSHING

8шт.

10

47464044

HOOK

2шт.

11

120090

BOLT,Hex, M16 x 50mm, Cl 8.8

2шт.

12

120092

BOLT,M16 x 70mm, Cl 8.8

3шт.

13

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

5шт.

14

86000441

NUT,M16 x 2.0, Cl 8

5шт.

15

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

5шт.

16

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

19шт.

17

100037

LOCK NUT,M10 x 1.5, Cl 8

13шт.

18

43144

BOLT,Hex, M10 x 70mm, Cl 8.8

8шт.

19

323307

CLAMP

2шт.

20

445394

RIVET,Pop, 3/16" x 1/2" OAL

2шт.

21

47504739

STRIP

4шт.

22

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

23

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.
