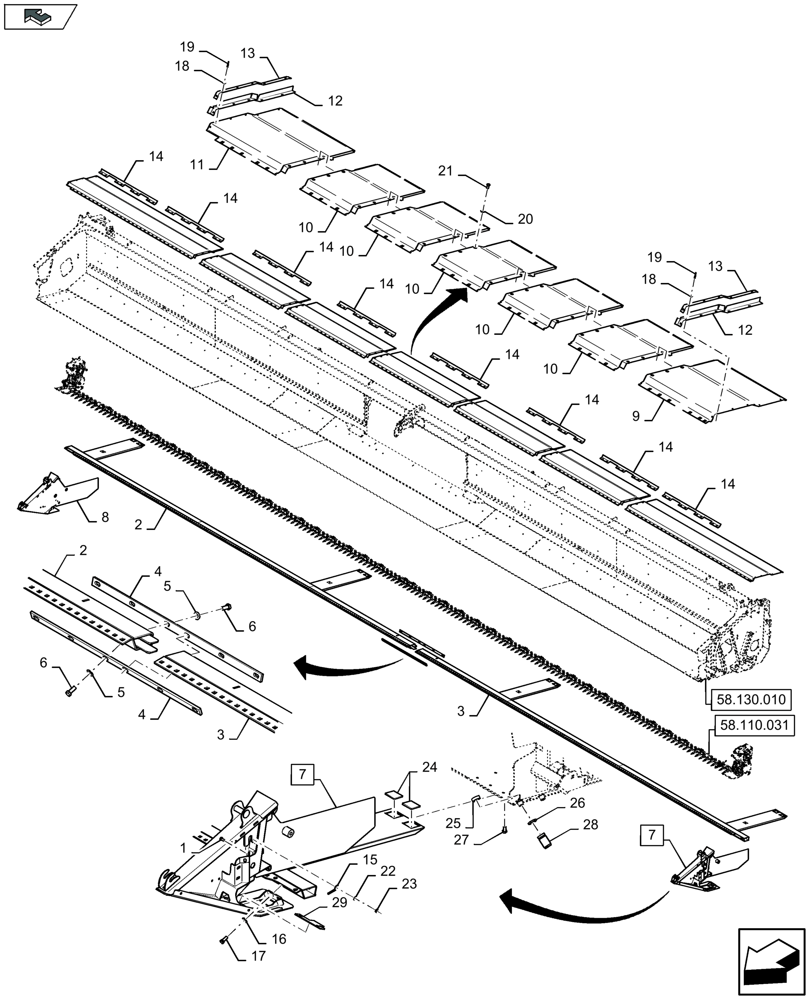

Запчасти Case IH 3050-41FT (58.130.250) - FLOOR AND ADJUSTABLE FLOOR GUIDES (58) - ATTACHMENTS/HEADERS

1

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

2

84476496

TABLE

1шт.

3

84476498

TABLE

1шт.

4

84146792

SLAT

2шт.

5

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

12шт.

6

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

12шт.

7

47458336

SIDE PLATE

,, Serial Range: -C051

1шт.

7

47624348

SIDE PLATE

Incl 29, Start Serial: D052

1шт.

8

84476500

SIDE PLATE

,, Serial Range: -C051

1шт.

8

47636798

SIDE PLATE

,, Start Serial: D052

1шт.

9

84525845

PLATE

1шт.

10

84139672

COVER PLATE

5шт.

11

84525832

PLATE

1шт.

12

87626283

SEALING STRIP

2шт.

13

87750870

LATH

2шт.

14

87749067

LATH

8шт.

15

84334067

SAFETY DEVICE

2шт.

16

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

17

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

4шт.

18

335872

WASHER,4.1mm ID x 15mm OD x 1.6mm Thk

14шт.

19

455959

RIVET,Pop, 3.75mm OD x 11.5mm L

14шт.

20

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

18шт.

21

380425

BOLT,M10 x 20mm

18шт.

22

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

23

9706690

NUT,M8 x 1.25, Cl 8

2шт.

24

87720537

WEAR STRIP

8шт.

MAINTENANCE PART

1шт.

25

87720717

WEAR PLATE

16шт.

26

87732954

NUT,M24 X 2

16шт.

27

86632600

HEX SOC SCREW,M10 x 20mm, Cl 8.8

4шт.

FOR TRANSPORT PURPOSE ONLY

1шт.

28

87732897

ADJUSTMENT SCREW

16шт.

29

47511720

PLATE

1шт.
