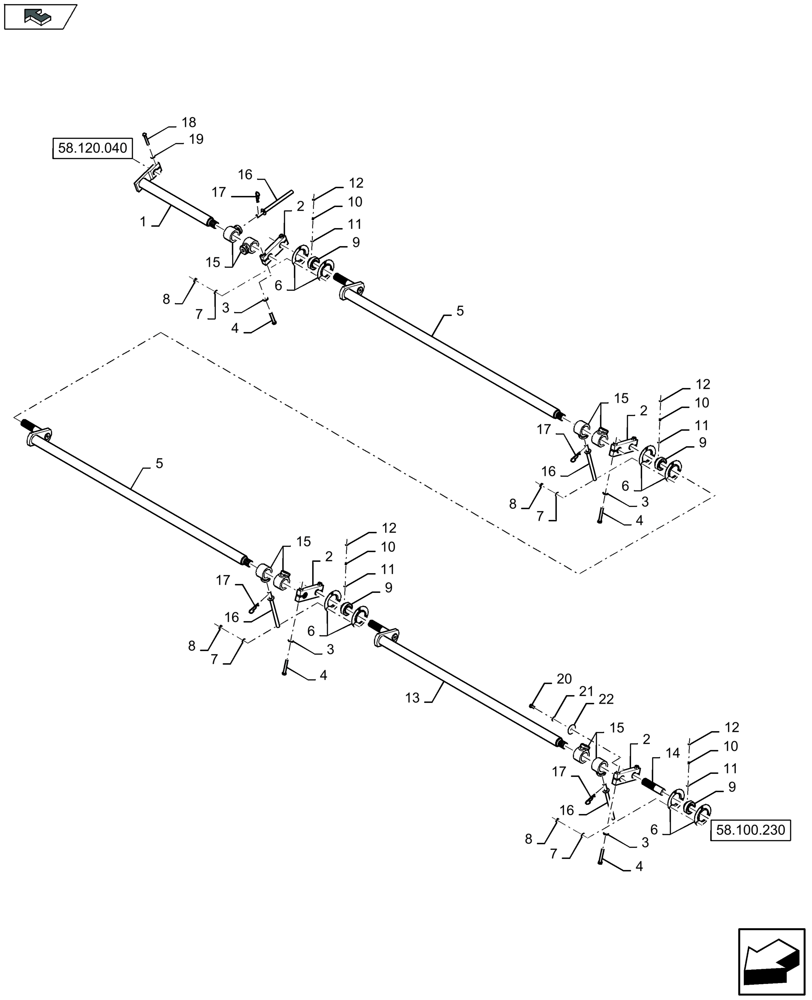

Запчасти Case IH 3050-41FT (58.120.070) - FEED AUGER, CRANK AXLE AND FINGERS, LH (58) - ATTACHMENTS/HEADERS

1

47468028

SHAFT

, Serial Range: -C061

1шт.

1

47746892

SHAFT

, Start Serial: D062

1шт.

2

84286872

COLLAR CLAMP

4шт.

3

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

8шт.

4

43158

BOLT,Hex, M12 x 80mm, Cl 8.8

8шт.

5

47602019

SHAFT

, Serial Range: -C117

2шт.

5

48058382

, Start Serial: D118

SHAFT

2шт.

6

36403

BEARING HOUSING

8шт.

7

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.

8

100016

NUT,M10 x 1.5, Cl 8

12шт.

9

87323339

BALL BEARING,35mm ID x 72mm OD x 19mm W

4шт.

10

84262759

SET SCREW,M6 x 0.75 x 16mm

4шт.

11

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

12

84268307

NUT,M6 x 0.75, 8 ZND

4шт.

13

47602028

SHAFT

, Serial Range: -C117

1шт.

13

48058384

, Start Serial: D118

SHAFT

1шт.

14

87392469

SHAFT

, Serial Range: -C117

1шт.

14

48057474

, Start Serial: D118

SHAFT

1шт.

15

84362468

JOINT

27шт.

16

84286806

FINGER

16шт.

17

740591

SPRING,M10 x 67

16шт.

18

120073

BOLT,Hex, M10 x 86.58mm, Cl 8.8

, Serial Range: -C061

1шт.

18

43158

BOLT,Hex, M12 x 80mm, Cl 8.8

, Start Serial: D062

1шт.

19

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

, Serial Range: -C061

1шт.

19

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

, Start Serial: D062

1шт.

20

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

, Start Serial: D118

4шт.

21

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

, Start Serial: D118

4шт.

22

87024930

WASHER,10.8mm ID x 50mm OD x 3mm Thk

, Start Serial: D118

4шт.
