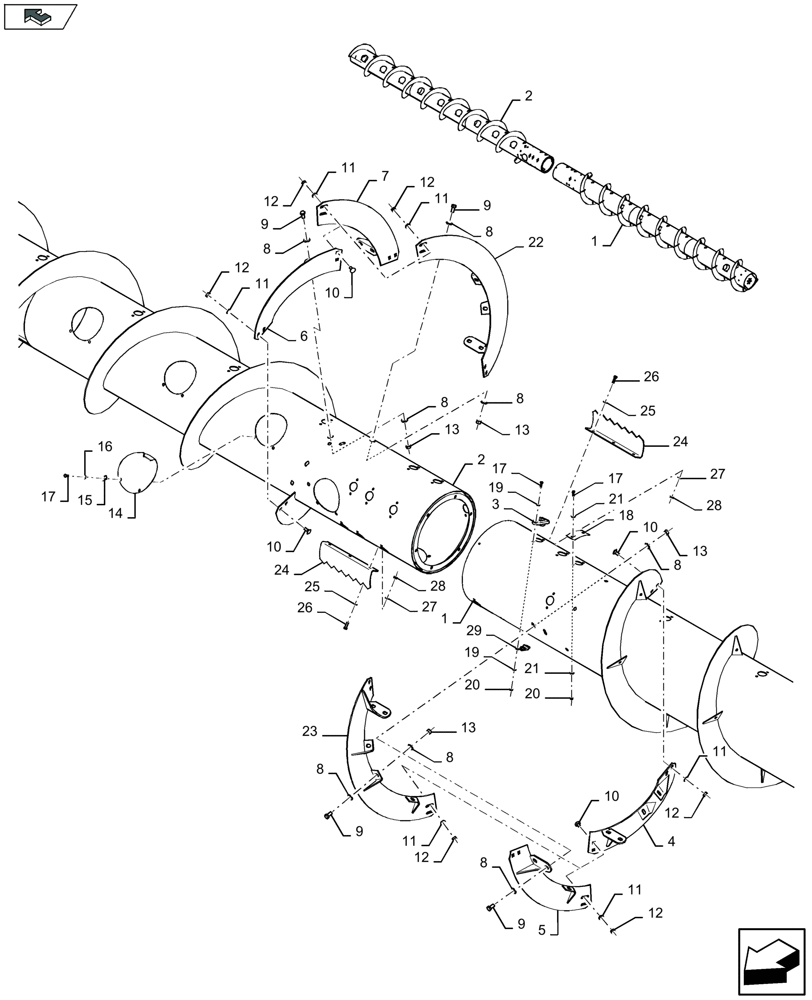

Запчасти Case IH 3050-41FT (58.120.050) - FEED AUGER (58) - ATTACHMENTS/HEADERS

1

47602044

AUGER

, Serial Range: -C051

1шт.

1

47683582

AUGER

, Serial Range: -F052061

1шт.

1

47746910

AUGER

, Start Serial: D062

1шт.

2

47602003

AUGER

, Serial Range: -C051

1шт.

2

47683568

AUGER

, Serial Range: -F052061

1шт.

2

47746901

AUGER

, Start Serial: D062

1шт.

3

47505958

GUIDE

, Serial Range: -C061

33шт.

MAINTENANCE PART

1шт.

3

47505958

GUIDE

, Serial Range: -F062117

30шт.

MAINTENANCE PART

1шт.

3

48058666

, Start Serial: D118

GUIDE

30шт.

MAINTENANCE PART

1шт.

4

84224159

AUGER FLIGHT

, Serial Range: -C023

1шт.

4

84468077

AUGER FLIGHT

, Start Serial: D024

1шт.

5

84263900

AUGER FLIGHT

, Serial Range: -C023

1шт.

5

84468078

AUGER FLIGHT

, Start Serial: D024

1шт.

6

84224162

AUGER FLIGHT

, Serial Range: -C023

1шт.

6

84468067

AUGER FLIGHT

, Start Serial: D024

1шт.

7

84263896

AUGER FLIGHT

, Serial Range: -C023

1шт.

7

84468080

AUGER FLIGHT

, Start Serial: D024

1шт.

8

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

28шт.

8

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

36шт.

ADDITIONAL EXTENSION

1шт.

9

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

14шт.

9

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

18шт.

ADDITIONAL EXTENSION

1шт.

10

338949

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8

8шт.

11

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

12

100016

NUT,M10 x 1.5, Cl 8

8шт.

13

87533547

NUT,Prev Torque, M12, 1.75mm Pitch, Cl 10

14шт.

13

87533547

NUT,Prev Torque, M12, 1.75mm Pitch, Cl 10

18шт.

ADDITIONAL EXTENSION

1шт.

14

87017844

COVER

23шт.

15

86014250

SPRING NUT,M6 x 1.0

46шт.

16

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

46шт.

17

120100

BOLT,M6 x 20mm, Cl 8.8

156шт.

18

87471091

COVER

22шт.

19

140015

WASHER,6.4mm ID x 14mm OD x 1.6mm Thk

, Serial Range: -C069

132шт.

19

140015

WASHER,6.4mm ID x 14mm OD x 1.6mm Thk

, Start Serial: D070

72шт.

20

353308

NUT,M6 x 1.0, Cl 8

, Serial Range: -C069

110шт.

20

353308

NUT,M6 x 1.0, Cl 8

, Start Serial: D070

50шт.

21

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

88шт.

22

84224155

AUGER FLIGHT

, Serial Range: -C027

1шт.

ADDITIONAL EXTENSION

1шт.

22

47618699

AUGER FLIGHT

, Start Serial: D028

1шт.

ADDITIONAL EXTENSION

1шт.

23

84224152

AUGER FLIGHT

, Serial Range: -C027

1шт.

ADDITIONAL EXTENSION

1шт.

23

47618701

AUGER FLIGHT

, Start Serial: D028

1шт.

ADDITIONAL EXTENSION

1шт.

24

84150687

SWEEP

2шт.

25

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

26

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

6шт.

27

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

28

9706690

NUT,M8 x 1.25, Cl 8

6шт.

29

47769576

PLATE

, Start Serial: D070

30шт.

MAINTENANCE PART

1шт.
