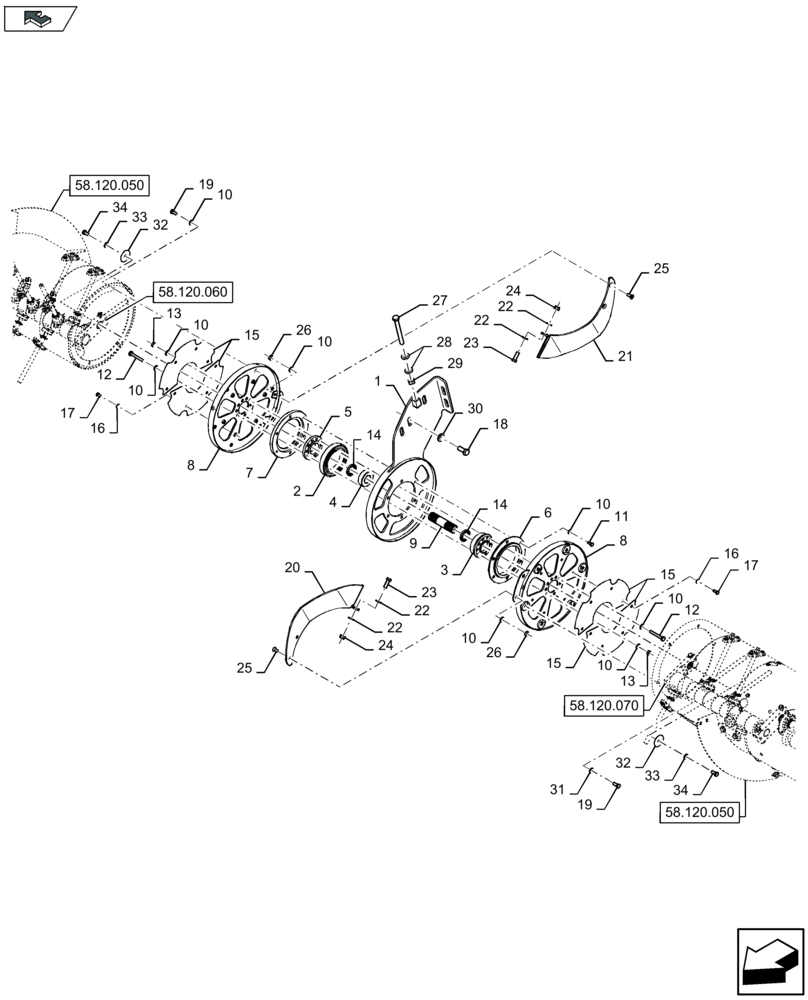

Запчасти Case IH 3050-41FT (58.120.040) - FEED AUGER SUPPORT (58) - ATTACHMENTS/HEADERS

1

47599451

SUPPORT

1шт.

2

87315721

BALL BEARING,100mm ID x 150mm OD x 24mm W

1шт.

MAINTENANCE PART

1шт.

3

47599454

BEARING HOUSING

1шт.

4

210034

BALL BEARING,35mm ID x 72mm OD x 23mm W

1шт.

5

47599456

FLANGE

1шт.

6

47468050

RING

1шт.

7

47468053

RING

1шт.

8

47599465

DISC

, Serial Range: -C051

2шт.

8

47683589

DISC

, Start Serial: D052

2шт.

9

47599898

SHAFT

, Serial Range: -C061

1шт.

9

47746915

SHAFT

, Start Serial: D062

1шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

26шт.

11

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

6шт.

12

86624979

BOLT,Hex, M10 x 75mm, Cl 10.9

10шт.

13

86500689

NUT,M10 x 1.5, Cl 10

10шт.

14

47533509

SEAL

2шт.

15

47599925

COVER

4шт.

16

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

12шт.

17

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

12шт.

18

43168

BOLT,Hex, M16 x 40mm, Cl 8.8

5шт.

19

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

, Serial Range: -C051

12шт.

19

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

, Start Serial: D052

12шт.

20

47564629

AUGER FLIGHT

1шт.

21

47564633

AUGER FLIGHT

1шт.

22

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

4шт.

23

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

2шт.

24

100038

NUT,M12 x 1.75, Cl 8

2шт.

25

393698

SCREW,FLAT, M10 x 25mm, Cl 8.8

4шт.

26

100016

NUT,M10 x 1.5, Cl 8

4шт.

27

359211

BOLT,M16 x 2.0 x 150mm, Cl 8.8

1шт.

28

378246

WASHER,17mm ID x 34mm OD x 3mm Thk

2шт.

29

100020

NUT,M16 x 2.0, Cl 8

1шт.

30

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

5шт.

31

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

, Serial Range: -C051

12шт.

31

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

, Start Serial: D052

12шт.

32

87024930

WASHER,10.8mm ID x 50mm OD x 3mm Thk

, Start Serial: D062

2шт.

33

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

, Start Serial: D062

2шт.

34

9861444

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

, Start Serial: D062

2шт.
