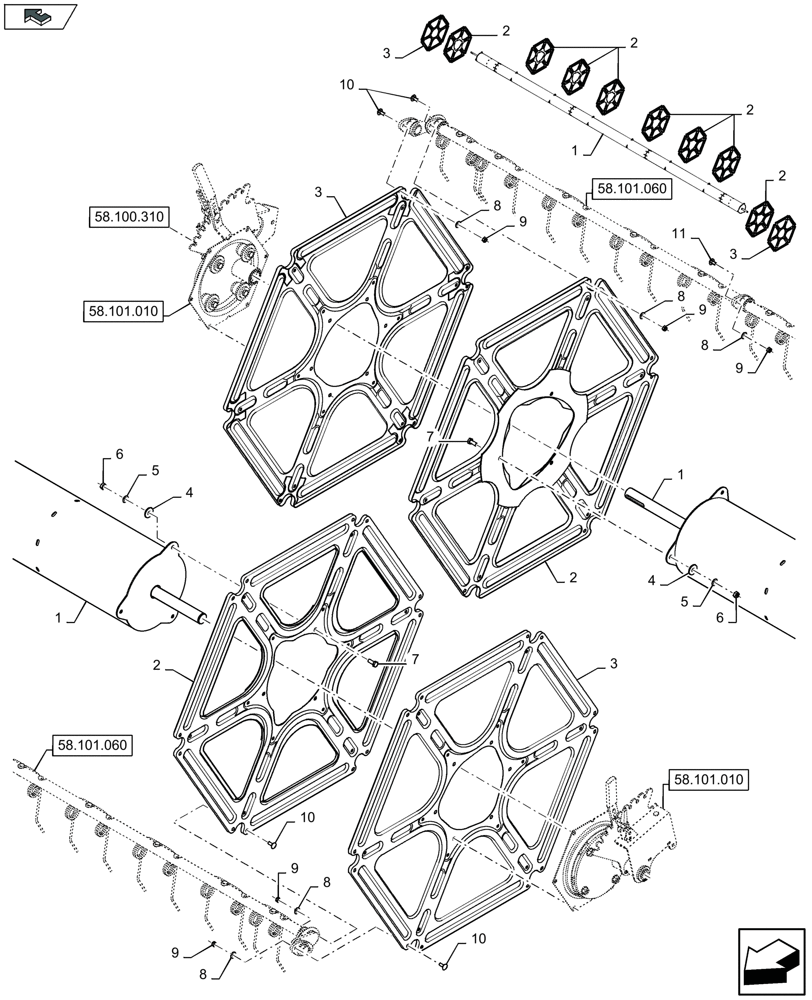

Запчасти Case IH 3050-35FT (58.101.030) - REEL DISCS (58) - ATTACHMENTS/HEADERS

1

87739314

REEL

1шт.

2

87530814

DISC

8шт.

MAINTENANCE PART

1шт.

3

84058667

DISC

2шт.

MAINTENANCE PART

1шт.

4

140042

WASHER,11mm ID x 34mm OD x 3mm Thk

24шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

24шт.

6

100016

NUT,M10 x 1.5, Cl 8

24шт.

7

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

24шт.

8

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

120шт.

9

86629542

NUT,M8 x 1.25, Cl 8.8

120шт.

10

84157898

CARRIAGE BOLT,Sq Nk, M8 x 22mm, Cl 8.8, Full Thd

48шт.

11

86512420

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 20mm, Full Thd, Cl 8.8

, Serial Range: -C027

72шт.

11

84157898

CARRIAGE BOLT,Sq Nk, M8 x 22mm, Cl 8.8, Full Thd

, Start Serial: D028

72шт.
