Запчасти Case IH 3050-35FT (35.410.351) - HYDRAULICS FOR VERTICAL KNIVES, RIGHT-HAND SIDE COUPLING PARTS - F944955 (35) - HYDRAULIC SYSTEMS

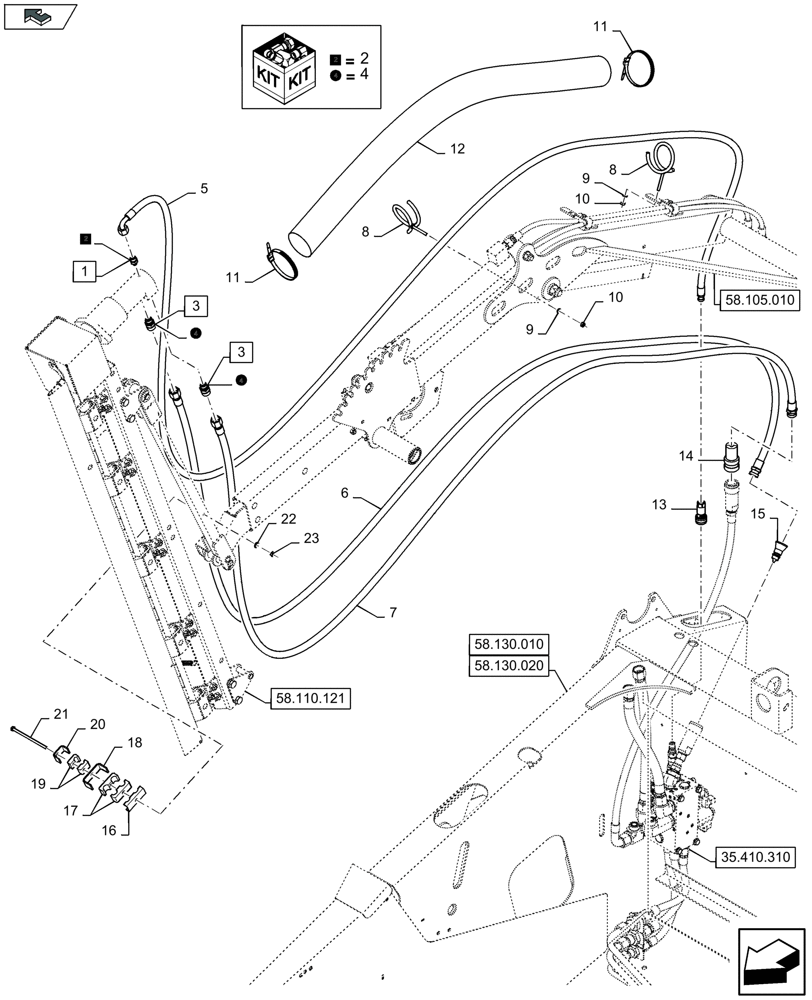

Схема запчастей Case IH 3050-35FT - (35.410.351) - HYDRAULICS FOR VERTICAL KNIVES, RIGHT-HAND SIDE COUPLING PARTS - F944955 (35) - HYDRAULIC SYSTEMS
58.105.010
12
2
4
4
14
21
9
10
2
58.110.121
15
8
4
9
18
home
3
35.410.310
8
58.130.010
23
11
16
7
13
5
58.130.020
20
4
22
3
17
19
6
1
2
10
11

Артикул

Название

Примечание

Количество

1

87490915

NIPPLE

Incl 2

1шт.

2

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

3

87490958

NIPPLE

Incl 4

2шт.

4

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

5

84144026

FLEXIBLE HOSE

1шт.

6

84144027

FLEXIBLE HOSE

1шт.

7

84144025

FLEXIBLE HOSE

1шт.

8

84207088

HOLDER

3шт.

9

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

10

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

3шт.

11

396718

STRAP

3шт.

12

84213297

GUARD

1шт.

13

86592081

COUPLING, QUICK, FEM

1шт.

14

86592079

COUPLING, QUICK, FEM

1шт.

15

86592080

QUICK MALE COUPLING

1шт.

16

84208260

BRACKET

1шт.

17

430356

CLAMP

2шт.

18

84814948

SUPPORT

1шт.

19

433008

CLAMP

2шт.

20

433101

SUPPORT

1шт.

21

412499

BOLT,Hex, M6 x 100mm, Cl 8.8, Full Thd

1шт.

22

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

23

353308

NUT,M6 x 1.0, Cl 8

1шт.

Выбрано товаров: 23
