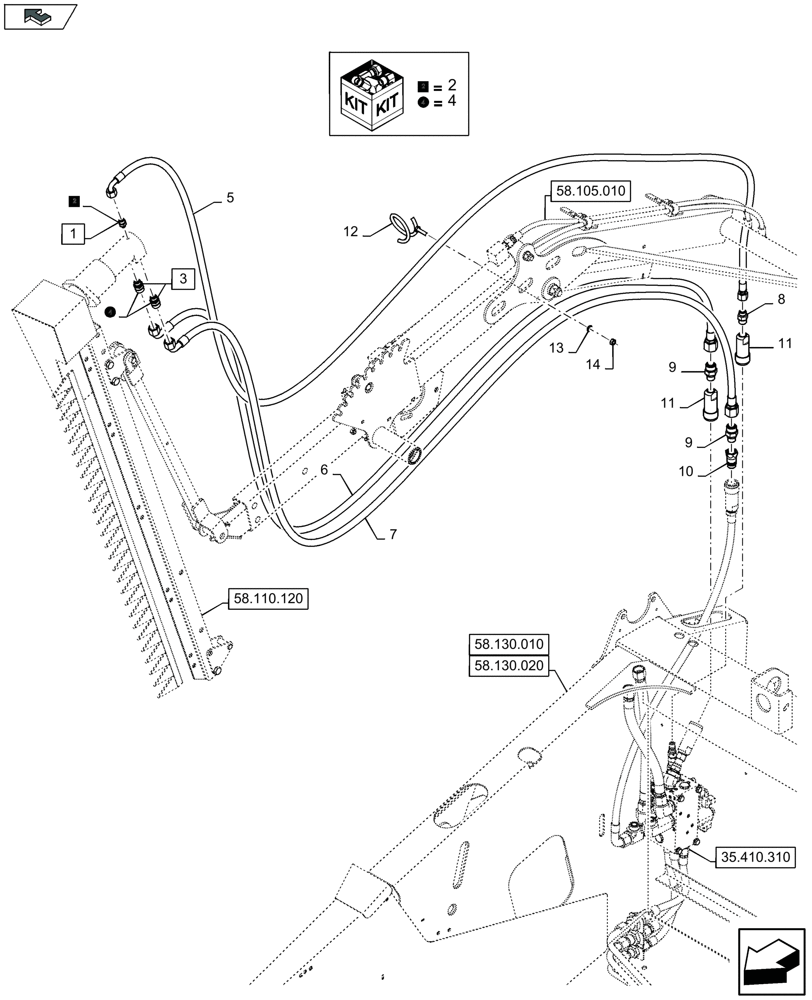

Запчасти Case IH 3050-35FT (35.410.350) - HYDRAULICS FOR VERTICAL KNIVES, RIGHT-HAND SIDE COUPLING PARTS - C943 (35) - HYDRAULIC SYSTEMS

1

87490915

NIPPLE

Incl 2

1шт.

2

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

3

87490958

NIPPLE

Incl 4

2шт.

4

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

5

87716689

FLEXIBLE HOSE

1шт.

6

87716687

FLEXIBLE HOSE

1шт.

7

87718747

FLEXIBLE HOSE

1шт.

8

87672176

HYD CONNECTOR

1шт.

9

87351379

HYD CONNECTOR

2шт.

10

86544945

QUICK MALE COUPLING

1шт.

11

772731

COUPLING, QUICK, FEM

2шт.

12

84062500

HOLDER

1шт.

13

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

14

43362

NUT,M8 x 1.25, Cl 10

1шт.
