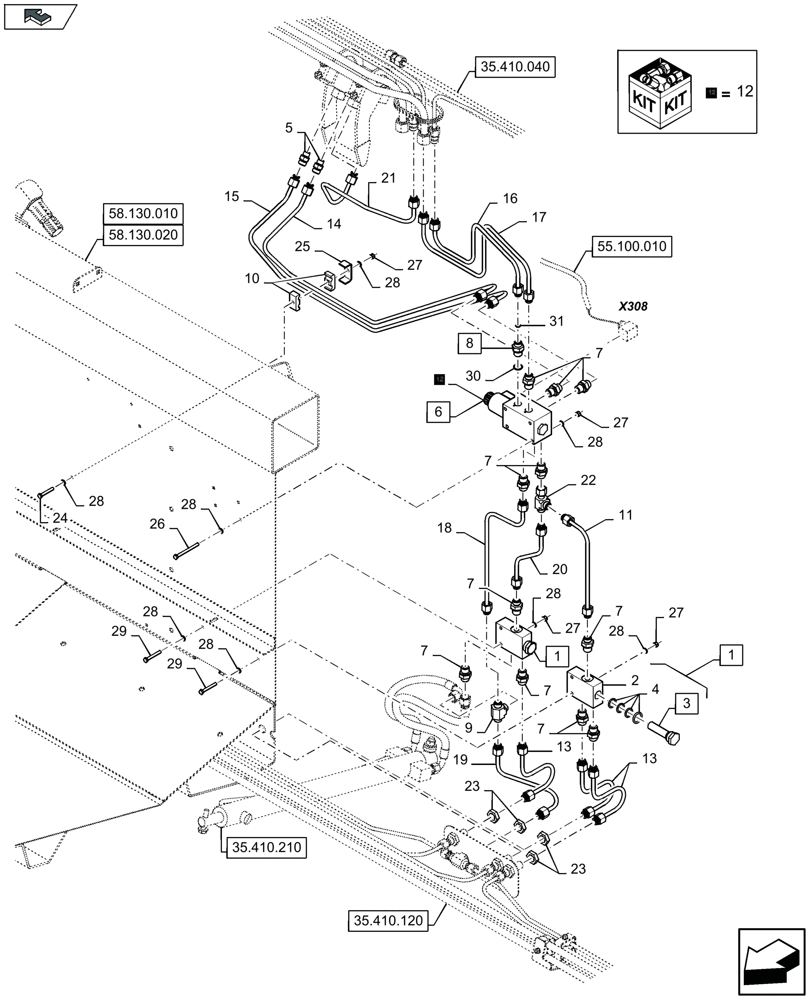

Запчасти Case IH 3050-35FT (35.410.230) - HYDRAULICS FOR ADJUSTABLE FLOOR - VALVES & CONNECTORS - C941 (35) - HYDRAULIC SYSTEMS

1

87355378

FLOW DIVIDER

Incl 2, 3

2шт.

2

NSS

NOT SOLD SEPARAT

1шт.

3

87735188

CARTRIDGE

Incl 4

1шт.

4

87735189

SEAL KIT

1шт.

5

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

2шт.

6

87630709

HYDRAULIC VALVE

Incl 12

1шт.

7

86579673

HYD CONNECTOR,11/16" - 16 ORFS x M18 x 1.5 ORB

11шт.

8

87747385

NIPPLE

Incl 30, 31

1шт.

9

9840322

TEE,11/16"-16 ORFS

1шт.

10

430357

CLAMP

2шт.

11

87656017

HYD TUBE,.375" OD

1шт.

12

87328198

SOLENOID VALVE

1шт.

13

87655967

HYD TUBE,.375" OD

3шт.

14

87656416

HYD TUBE,.375" OD

1шт.

15

87656454

HYD TUBE,.375" OD

1шт.

16

87656503

HYD TUBE,.375" OD

1шт.

17

87656558

HYD TUBE,.375" OD

1шт.

18

87656383

HYD TUBE,8 mm OD x 367.5 mm L

1шт.

19

87715192

HYD TUBE,8 mm OD x 138.3 mm L

1шт.

20

87717711

HYD TUBE,8 mm ID x 206.7 mm L

1шт.

21

87672927

HYD TUBE,.375" OD

1шт.

22

84989848

TEE,11/16" - 16 ORFS x 11/16" - 16 ORFS x 11/16" - 16 JIC

1шт.

23

87010704

BHD LOCK NUT,11/16"-16

4шт.

24

120102

BOLT,Hex, M6 x 40mm, Cl 8.8

1шт.

25

431941

SUPPORT

1шт.

26

397985

BOLT,Hex, M6 x 70mm, Cl 8.8, Full Thd

4шт.

27

353308

NUT,M6 x 1.0, Cl 8

9шт.

28

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

18шт.

29

86977790

BOLT,Hex, M6 x 45mm, Cl 8.8

4шт.

30

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

31

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
