(35.410.210) - HYDRAULICS FOR ADJUSTABLE FLOOR - CYLINDERS - C941

Запчасти Case IH 3050-35FT (35.410.210) - HYDRAULICS FOR ADJUSTABLE FLOOR - CYLINDERS - C941 (35) - HYDRAULIC SYSTEMS

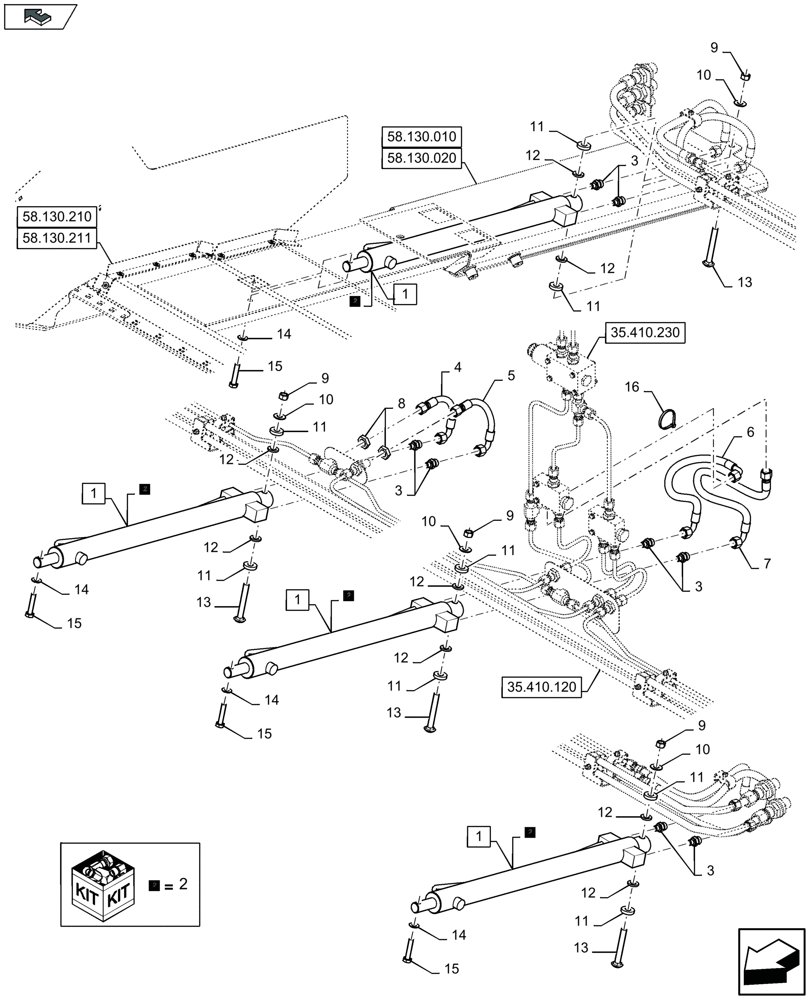

Схема запчастей Case IH 3050-35FT - (35.410.210) - HYDRAULICS FOR ADJUSTABLE FLOOR - CYLINDERS - C941 (35) - HYDRAULIC SYSTEMS
2
12
15
4
3
35.410.120
11
15
13
11
9
2
11
58.130.211
58.130.020
10
3
12
13
10
58.130.010
11
12
8
12
10
16
1
3
2
9
1
14
13
15
2
1
6
11
58.130.210
12
14
2
2
1
9
15
11
13
3
home
14
10
12
5
11
12
9
14
11
7
12
35.410.230
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87602982

HYDRAULIC CYLINDER,Double Acting, 24mm Rod, 575mm Stroke

4шт.

2

84023914

SEAL KIT

1шт.

3

86580177

HYD CONNECTOR,11/16"-16 ORFS x M12 x 1.5 ORB

8шт.

4

87715587

HOSE

1шт.

5

84143976

FLEXIBLE HOSE

1шт.

6

84453650

FLEXIBLE HOSE

1шт.

7

87716693

HOSE

1шт.

8

87010704

BHD LOCK NUT,11/16"-16

2шт.

9

337475

NUT,M12, Cl 10

4шт.

10

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

11

86592713

WASHER,13mm ID x 30mm OD x 6mm Thk

8шт.

12

86588502

WASHER,13mm ID x 25mm OD x 3mm Thk

8шт.

13

334070

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 90mm, Cl 8.8

4шт.

14

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

15

43249

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

4шт.

16

86566989

CABLE TIE,208mm L

2шт.
