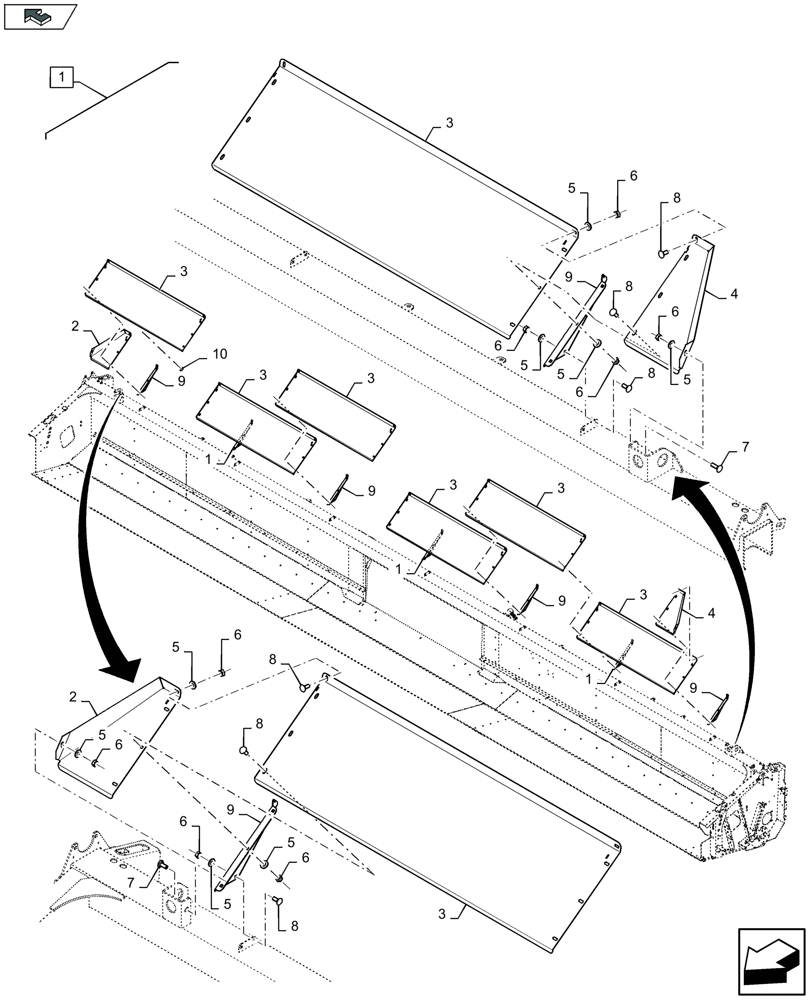

Запчасти Case IH 3050-35FT (88.058.039) - DIA KIT : BACKSHEET EXTENSION KIT - D910 (88) - ACCESSORIES

1

84139538

DIA KIT, HARVESTER

Incl 2 - 9

1шт.

2

84139529

COVER PLATE

1шт.

3

84139520

PLATE

6шт.

4

84139532

COVER PLATE

1шт.

5

86588500

WASHER,9mm ID x 16mm OD x 2mm Thk

44шт.

6

86629542

NUT,M8 x 1.25, Cl 8.8

44шт.

7

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

8

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

42шт.

9

84139516

SUPPORT

7шт.

10

86975394

BUMPER

6шт.
