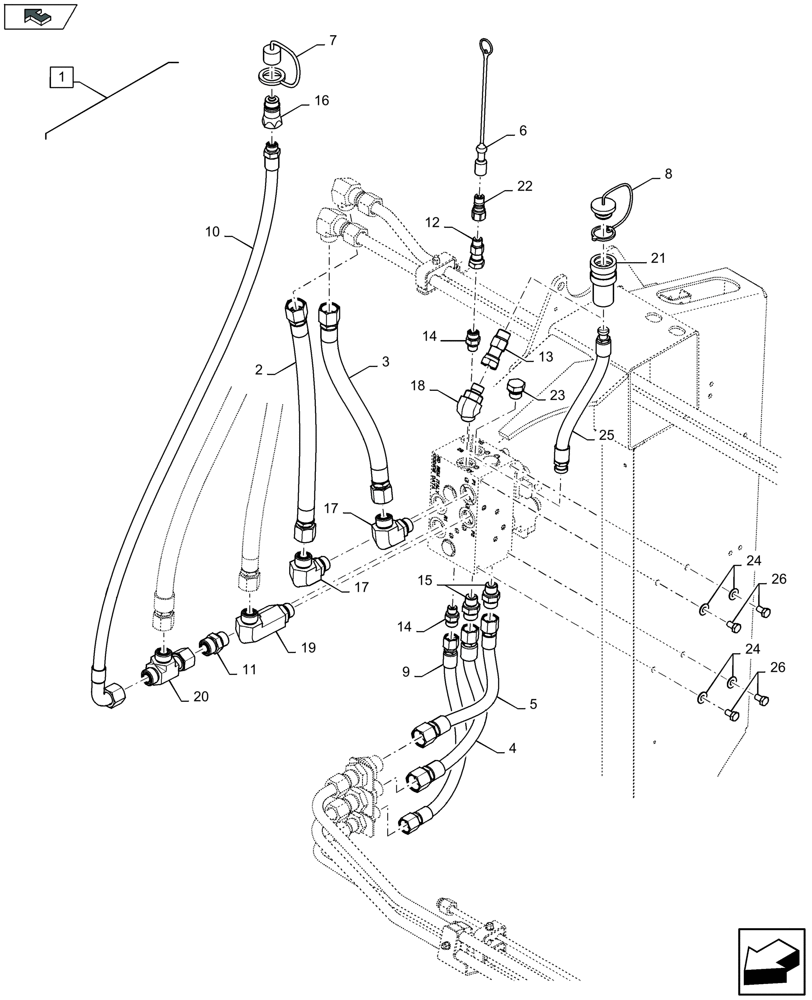

Запчасти Case IH 3050-35FT (88.058.036[01]) - DIA KIT : HYDRAULIC KIT FOR VERTICAL RAPESEED KNIFES - C955 (88) - ACCESSORIES

1

84139554

DIA KIT, HARVESTER

Incl 2 - 26

1шт.

2

84139526

HOSE

1шт.

3

84139525

HOSE

1шт.

4

84139524

HOSE

1шт.

5

84139522

HOSE

1шт.

6

86592086

DUST CAP

1шт.

7

86592084

DUST CAP

1шт.

8

86592083

DUST CAP

1шт.

9

84139510

HOSE

1шт.

10

84139509

HOSE

1шт.

11

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

1шт.

12

84062147

HYD CONNECTOR

1шт.

13

86974819

FITTING,3/4"-16 x 13/16"-16 ORFS

1шт.

14

86579671

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORB

2шт.

15

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

2шт.

16

86592080

QUICK MALE COUPLING

1шт.

17

86579694

ELBOW,90 Degree, 1"-14 ORFS x M22 x 1.5 ORB

2шт.

18

86639056

ELBOW,45 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

1шт.

19

84129708

ELBOW

1шт.

20

84989850

3 WAY CONNECTION

1шт.

21

86592082

QUICK MALE COUPLING

1шт.

22

86592082

QUICK MALE COUPLING

1шт.

23

87030025

PLUG,Hex, M18 x 1.5 ORB

1шт.

24

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

25

84208791

HOSE,10.00 mm ID x 200.00 mm, SAE 100R16

1шт.

26

86624003

BOLT,Hex, M8 x 14mm, Cl 8.8, Full Thd

4шт.
