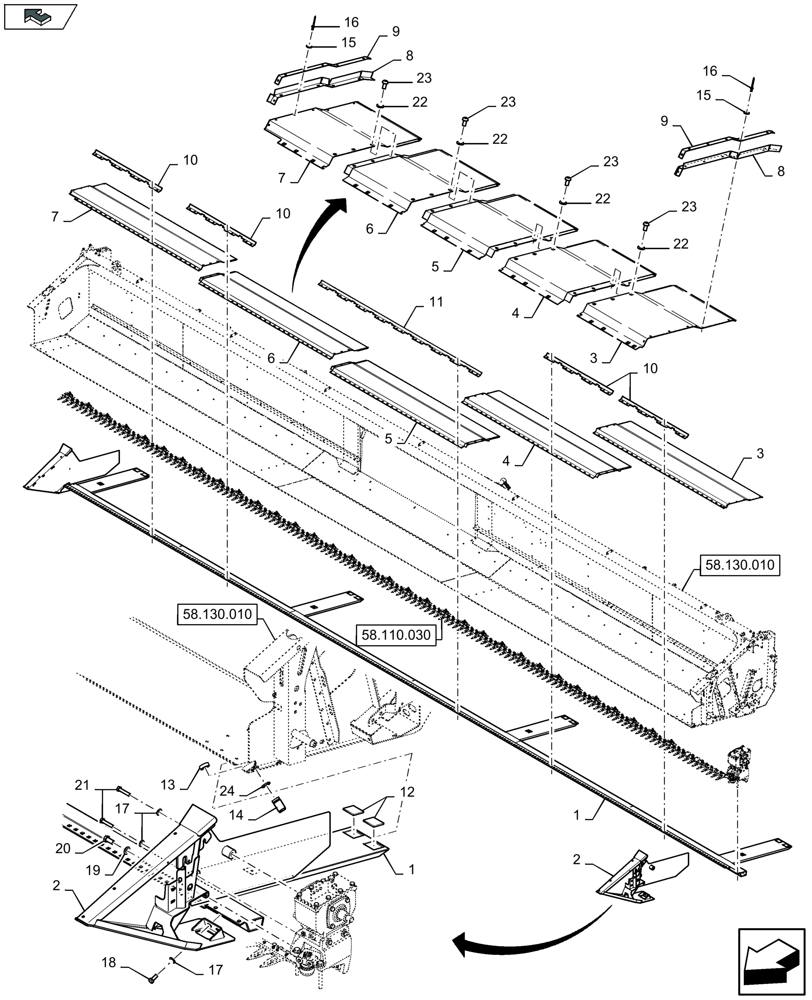

Запчасти Case IH 3050-35FT (58.130.210) - FLOOR AND ADJUSTABLE FLOOR GUIDES - C909 (58) - ATTACHMENTS/HEADERS

1

87737383

FRAME

1шт.

2

87723023

SIDE PLATE

1шт.

3

87738939

PLATE

1шт.

4

87738925

PLATE

1шт.

5

87738913

PLATE

1шт.

6

87738909

PLATE

1шт.

7

87738908

PLATE

1шт.

8

87626283

SEALING STRIP

2шт.

9

87750870

LATH

2шт.

10

87749067

LATH

4шт.

11

87749123

LATH

1шт.

12

87720537

WEAR STRIP

8шт.

MAINTENANCE PART

1шт.

13

87720717

WEAR PLATE

16шт.

14

87732897

ADJUSTMENT SCREW

16шт.

15

335872

WASHER,4.1mm ID x 15mm OD x 1.6mm Thk

14шт.

16

446453

RIVET,Pop, 4mm OD x 9.4mm L

14шт.

17

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

5шт.

18

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

3шт.

19

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

1шт.

20

86529976

BOLT,Hex, M16 x 35mm, Cl 10.9

1шт.

21

309086

BOLT,Hex, M12 x 60, 8.8, Full Thd

2шт.

22

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.

23

380425

BOLT,M10 x 20mm

12шт.

24

87732954

NUT,M24 X 2

16шт.
