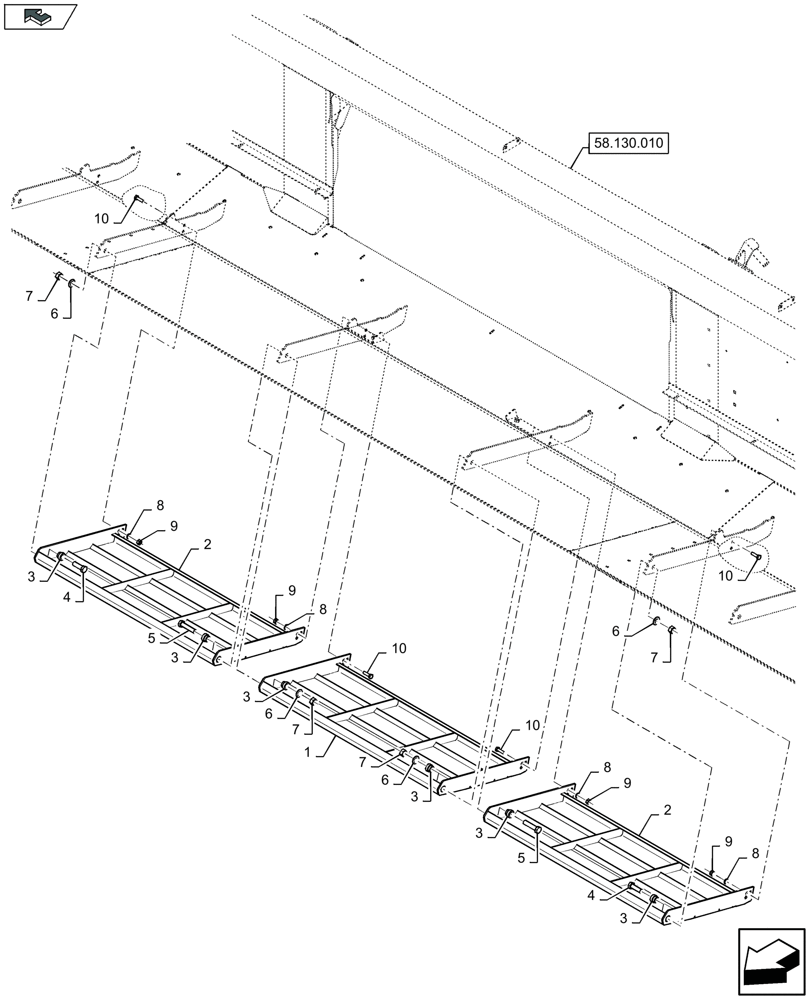

Запчасти Case IH 3050-35FT (58.130.142) - SKID PLATES, CENTER - D052 (58) - ATTACHMENTS/HEADERS

1

84587852

SKID PLATE

1шт.

2

84587851

SKID PLATE

2шт.

FOR 30 FT ONLY

1шт.

2

84587852

SKID PLATE

2шт.

FOR 35 FT ONLY

1шт.

3

87728003

BUSHING

6шт.

4

120090

BOLT,Hex, M16 x 50mm, Cl 8.8

2шт.

5

120092

BOLT,M16 x 70mm, Cl 8.8

2шт.

6

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

4шт.

7

86000441

NUT,M16 x 2.0, Cl 8

4шт.

8

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

9

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

10

43144

BOLT,Hex, M10 x 70mm, Cl 8.8

4шт.
