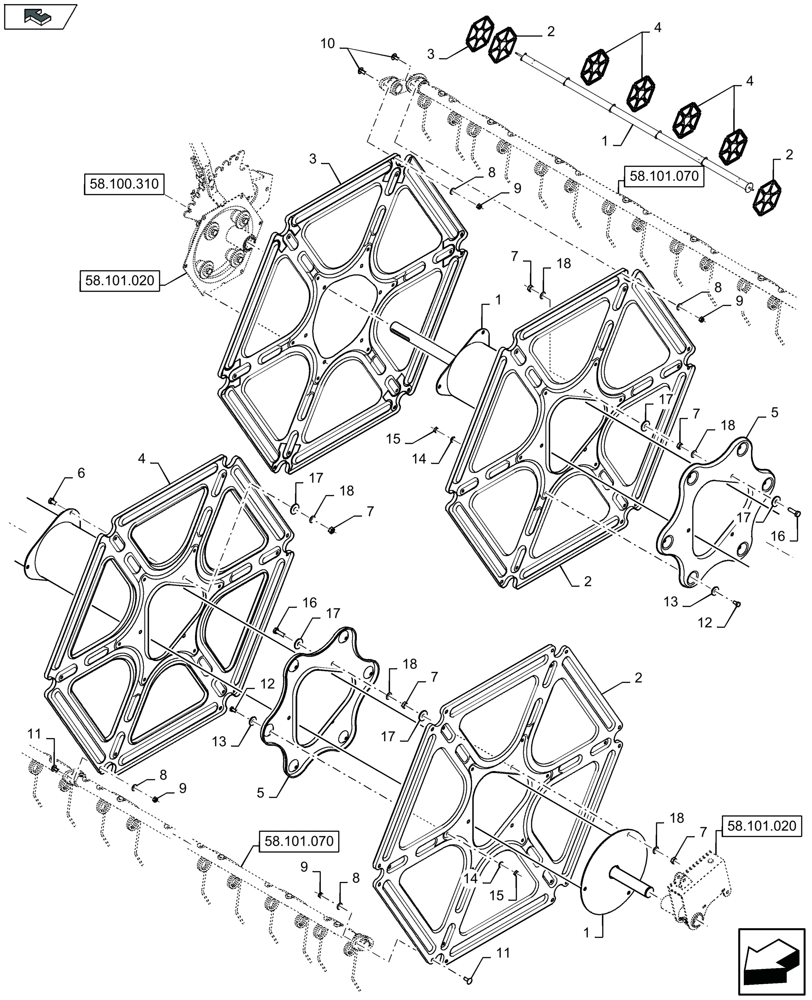

Запчасти Case IH 3050-30FT (58.101.040) - REEL DISCS (58) - ATTACHMENTS/HEADERS

1

84160624

TUBE

1шт.

2

84032737

DISC

2шт.

MAINTENANCE PART

1шт.

3

84058667

DISC

1шт.

MAINTENANCE PART

1шт.

4

84400172

DISC

4шт.

MAINTENANCE PART

1шт.

5

9838272

DISC

2шт.

6

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

12шт.

7

100016

NUT,M10 x 1.5, Cl 8

24шт.

8

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

84шт.

9

86629542

NUT,M8 x 1.25, Cl 8.8

84шт.

10

84157898

CARRIAGE BOLT,Sq Nk, M8 x 22mm, Cl 8.8, Full Thd

24шт.

11

86512420

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 20mm, Full Thd, Cl 8.8

, Serial Range: -C027

60шт.

11

84157898

CARRIAGE BOLT,Sq Nk, M8 x 22mm, Cl 8.8, Full Thd

, Start Serial: D028

60шт.

12

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

12шт.

13

140041

WASHER,M8 x 28mm OD x 3mm Thk

,, Serial Range: -C964

12шт.

13

87033737

WASHER,9mm ID x 28mm OD x 3mm Thk

,, Start Serial: D965

12шт.

14

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

12шт.

15

9706690

NUT,M8 x 1.25, Cl 8

12шт.

16

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

6шт.

17

140042

WASHER,11mm ID x 34mm OD x 3mm Thk

24шт.

18

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

24шт.
