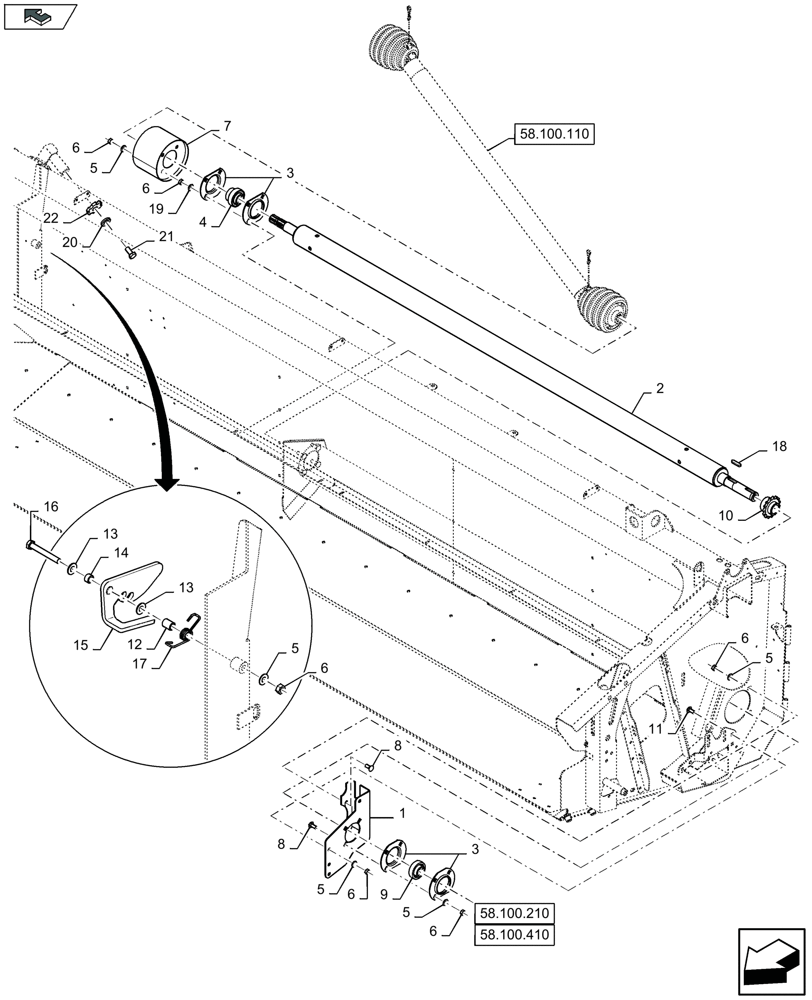

Запчасти Case IH 3050-30FT (58.100.010) - MAIN DRIVE SHAFT - C957 (58) - ATTACHMENTS/HEADERS

1

87713605

BRACKET

,, Serial Range: -C949

1шт.

1

84184026

BRACKET

,, Serial Range: -F950955

1шт.

1

84212231

BRACKET

,, Start Serial: D956

1шт.

2

84151265

SHAFT

,, Serial Range: -C953

1шт.

FOR HEAVY 25 FT ONLY

1шт.

2

84210151

SHAFT

,, Serial Range: -F954955

1шт.

FOR HEAVY 25 FT ONLY

1шт.

2

84246661

SHAFT

,, Start Serial: D956

1шт.

FOR HEAVY 25 FT ONLY

1шт.

2

84150834

SHAFT

,, Serial Range: -C953

1шт.

FOR 30 FT ONLY

1шт.

2

84210119

SHAFT

,, Serial Range: -F954955

1шт.

FOR 30 FT ONLY

1шт.

2

84246657

SHAFT

,, Start Serial: D956

1шт.

FOR 30 FT ONLY

1шт.

2

84149757

SHAFT

,, Serial Range: -C953

1шт.

FOR 35 FT ONLY

1шт.

2

84209776

SHAFT ASSY.

,, Serial Range: -F954955

1шт.

FOR 35 FT ONLY

1шт.

2

84244432

SHAFT

,, Start Serial: D956

1шт.

FOR 35 FT ONLY

1шт.

3

86620027

FLANGED BEARING,80.02mm ID x 147.6mm OD x 4mm Thk

4шт.

4

455805

BALL BEARING,40mm ID x 80mm OD x 42.9mm Thk

,, Serial Range: -C955

1шт.

MAINTENANCE PART

1шт.

4

84240146

BEARING,40mm ID x 80mm OD x 21mm W

,, Start Serial: D956

1шт.

MAINTENANCE PART

1шт.

5

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

14шт.

6

9706685

NUT,M12 x 1.75, Cl 8

11шт.

7

87756737

TUBE,140 mm L

,, Serial Range: -C955

1шт.

7

84267177

SHIELD

,, Start Serial: D956

1шт.

8

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

10шт.

9

84057307

BALL BEARING,40mm ID x 80mm OD x 21mm W

MAINTENANCE PART

1шт.

MAINTENANCE PART

1шт.

10

84136410

SPROCKET

,, Serial Range: -C955

1шт.

MAINTENANCE PART

1шт.

10

84176439

SPROCKET ASSY.

,, Start Serial: D956

1шт.

MAINTENANCE PART

1шт.

11

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

,, Serial Range: -C949

3шт.

11

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

,, Start Serial: D950

3шт.

12

86553411

SPACER,13.49mm ID x 18.97mm OD x 23.88mm L

1шт.

13

86625254

WASHER,13.5mm ID x 28mm OD x 2.5mm Thk

2шт.

14

86622548

SPACER,13.55mm ID x 19.01mm OD x 10.79mm L

1шт.

15

87033816

CLIP

1шт.

16

86508581

BOLT,Hex, M12 x 90mm, Cl 8.8

1шт.

17

87026147

SPRING

1шт.

18

170056

KEY,12mm W x 50mm OAL

1шт.

19

378245

WASHER,13mm ID x 28.5mm OD x 2.7mm Thk

4шт.

20

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

,, Start Serial: D950

1шт.

21

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

,, Start Serial: D950

1шт.

22

84175969

GUIDE RING

,, Start Serial: D950

1шт.
