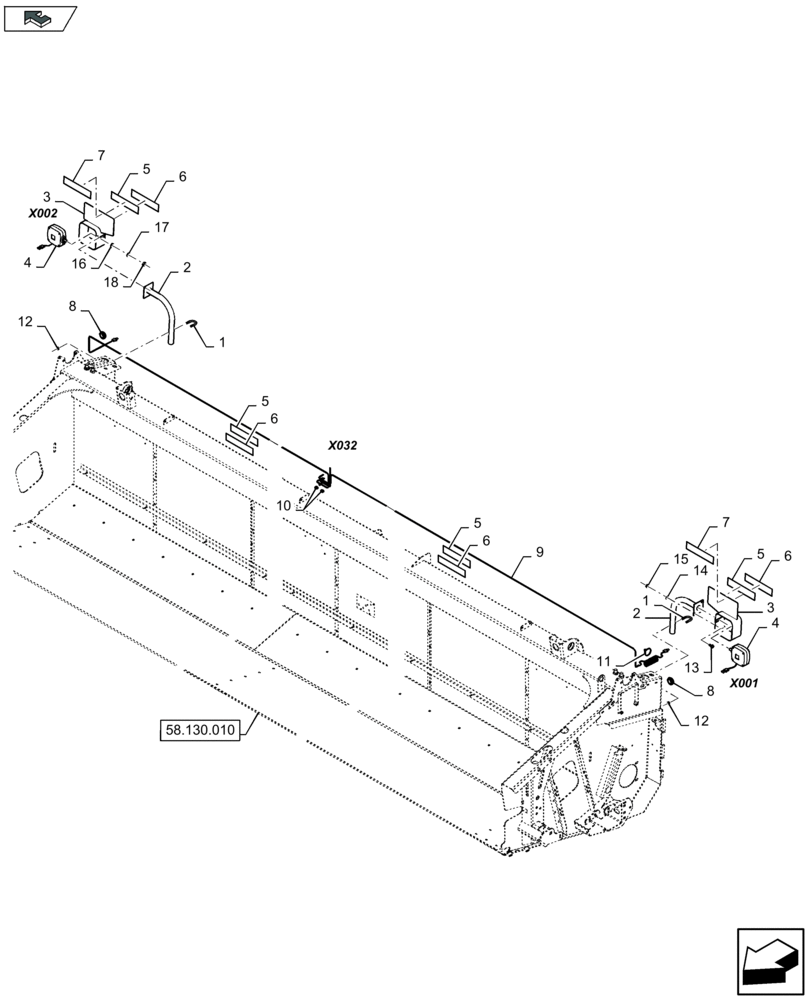

Запчасти Case IH 3050-30FT (55.404.010) - HEADER LIGHTS (55) - ELECTRICAL SYSTEMS

1

145345

U-BOLT

, Serial Range: -C989

4шт.

1

47488739

U-BOLT

, Start Serial: D990

4шт.

2

47364679

SUPPORT

2шт.

3

390636A1

BRACKET

2шт.

4

134454A1

LAMP,Halogen, 12V, 32W, Clear

2шт.

5

86547781

REFLECTOR,RED

4шт.

6

86547783

REFLECTOR,Tape, Red Orange

4шт.

7

86547782

REFLECTOR,YELLOW

2шт.

8

173011

GROMMET,1” ID x 1.750” OD x .500” Tk

2шт.

9

47361008

WIRE HARNESS

1шт.

10

84280824

WIRE CONNECTOR

2шт.

11

86566989

CABLE TIE,208mm L

1шт.

12

86629544

NUT,5/16” – 18, GR B

,, Serial Range: -C989

8шт.

12

86629542

NUT,M8 x 1.25, Cl 8.8

,, Start Serial: D990

8шт.

13

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

,, Serial Range: -C989

4шт.

13

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

,, Start Serial: D990

4шт.

14

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

15

86521605

FLANGE NUT,5/16"-18, Cl 5

,, Serial Range: -C989

4шт.

15

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

,, Start Serial: D990

4шт.

16

87613181

WASHER,0.53" ID x 1" OD x 0.06" Thk

2шт.

17

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

18

9803187

NUT,1/2"-13, G8

2шт.
