Запчасти Case IH 3050-30FT (55.100.510) - CABLE HARNESS : 87704020 - C974 (55) - ELECTRICAL SYSTEMS

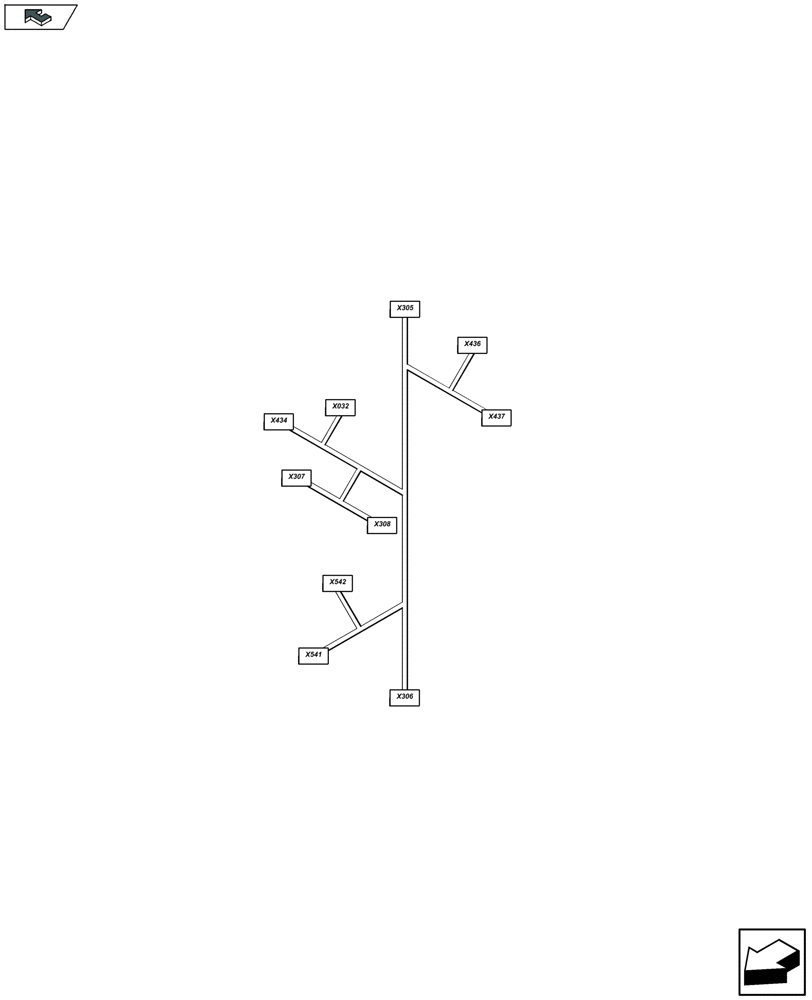

Схема запчастей Case IH 3050-30FT - (55.100.510) - CABLE HARNESS : 87704020 - C974 (55) - ELECTRICAL SYSTEMS
x305
x306
x308
x436
x032
home
x541
x434
x307
x542
x437

Артикул

Название

Примечание

Количество

x032

86575800

ELEC CONNECTOR

X32

1шт.

86500035

ELEC. TERMINAL PIN,Male, 0.75 - 2mm

1шт.

84068583

PLUG,12 - 16 Ga, White

1шт.

x305

245484C1

ELEC CONNECTOR,3 Pin

X305

1шт.

84100537

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

1шт.

x306

245484C1

ELEC CONNECTOR,3 Pin

X306

1шт.

84100537

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

1шт.

x307

245484C1

ELEC CONNECTOR,3 Pin

X307

1шт.

84100537

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

1шт.

x308

245484C1

ELEC CONNECTOR,3 Pin

X308

1шт.

84100537

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

1шт.

x434

84100537

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

X434

1шт.

x436

84078681

WIRE CONNECTOR,Female

X436

1шт.

84078682

TERMINAL CONNECTOR,Tin, 0.8 - 1.0mm

1шт.

84100538

WIRE CONNECTOR

1шт.

x437

84078681

WIRE CONNECTOR,Female

X437

1шт.

84078682

TERMINAL CONNECTOR,Tin, 0.8 - 1.0mm

1шт.

84100538

WIRE CONNECTOR

1шт.

x541

84074631

CONTACT HOUSING,Female, 2 Pole

X541

1шт.

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

1шт.

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

x542

84074631

CONTACT HOUSING,Female, 2 Pole

X542

1шт.

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

1шт.

84074638

LOCKING TAB,Locking Wedge, Green

1шт.

Выбрано товаров: 24
