(35.410.340) - HYDRAULICS FOR VERTICAL KNIVES, LEFT-HAND SIDE COUPLING PARTS - C943

Запчасти Case IH 3050-30FT (35.410.340) - HYDRAULICS FOR VERTICAL KNIVES, LEFT-HAND SIDE COUPLING PARTS - C943 (35) - HYDRAULIC SYSTEMS

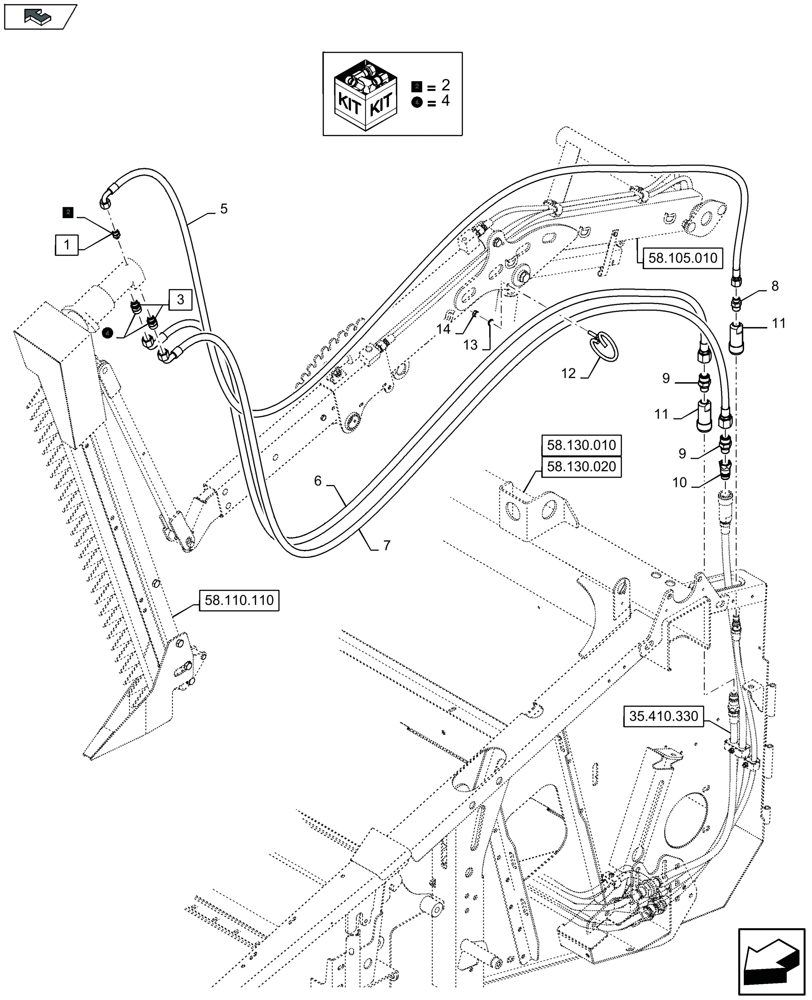

Схема запчастей Case IH 3050-30FT - (35.410.340) - HYDRAULICS FOR VERTICAL KNIVES, LEFT-HAND SIDE COUPLING PARTS - C943 (35) - HYDRAULIC SYSTEMS
7
2
10
13
4
9
11
58.130.020
5
35.410.330
home
2
14
58.130.010
9
2
4
1
58.105.010
58.110.110
12
11
6
8
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87490915

NIPPLE

Incl 2

1шт.

2

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

3

87490958

NIPPLE

Incl 4

2шт.

4

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

5

87716689

FLEXIBLE HOSE

1шт.

6

87716687

FLEXIBLE HOSE

1шт.

7

87718747

FLEXIBLE HOSE

1шт.

8

87672176

HYD CONNECTOR

1шт.

9

87351379

HYD CONNECTOR

2шт.

10

86544945

QUICK MALE COUPLING

1шт.

11

772731

COUPLING, QUICK, FEM

2шт.

12

84062500

HOLDER

1шт.

13

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

14

43362

NUT,M8 x 1.25, Cl 10

1шт.

Выбрано товаров: 14
