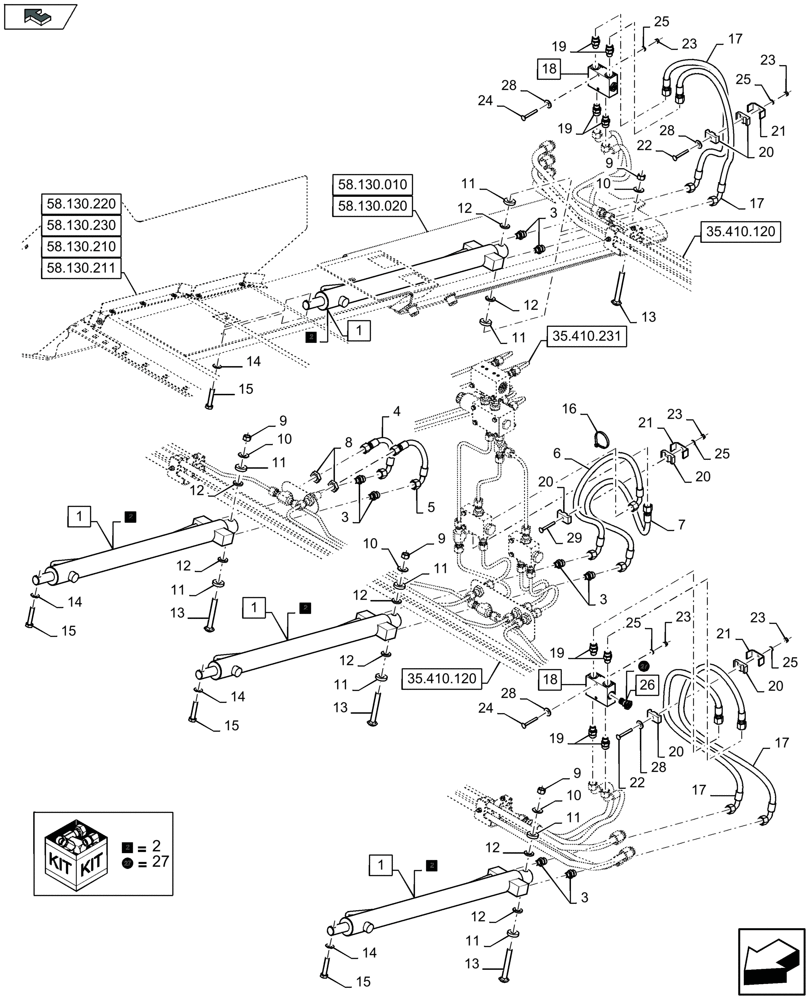

Запчасти Case IH 3050-30FT (35.410.211) - HYDRAULICS FOR ADJUSTABLE FLOOR - CYLINDERS - F942974 (35) - HYDRAULIC SYSTEMS

1

87602982

HYDRAULIC CYLINDER,Double Acting, 24mm Rod, 575mm Stroke

4шт.

2

84023914

SEAL KIT

1шт.

3

86580177

HYD CONNECTOR,11/16"-16 ORFS x M12 x 1.5 ORB

8шт.

4

87715587

HOSE

1шт.

5

84143976

FLEXIBLE HOSE

1шт.

6

84169177

HOSE

1шт.

7

84169160

HOSE

1шт.

8

87010704

BHD LOCK NUT,11/16"-16

2шт.

9

87533547

NUT,Prev Torque, M12, 1.75mm Pitch, Cl 10

4шт.

10

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

,, Serial Range: -C949

4шт.

10

378245

WASHER,13mm ID x 28.5mm OD x 2.7mm Thk

,, Start Serial: D950

4шт.

11

86592713

WASHER,13mm ID x 30mm OD x 6mm Thk

8шт.

12

86588502

WASHER,13mm ID x 25mm OD x 3mm Thk

8шт.

13

334070

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 90mm, Cl 8.8

4шт.

14

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

15

43249

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

4шт.

16

86566989

CABLE TIE,208mm L

2шт.

17

87676380

HOSE,6.35mm ID x 950mm L, SAE 100R16

4шт.

18

84166944

HYDRAULIC VALVE

Incl 26

2шт.

19

86579671

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORB

8шт.

20

430357

CLAMP

6шт.

21

431941

SUPPORT

2шт.

22

120102

BOLT,Hex, M6 x 40mm, Cl 8.8

,, Serial Range: -C953

2шт.

22

412364

CARRIAGE BOLT,M6 x 1.0 x 56.6mm, Cl 8.8

,, Start Serial: D954

2шт.

23

353308

NUT,M6 x 1.0, Cl 8

6шт.

24

86977790

BOLT,Hex, M6 x 45mm, Cl 8.8

,, Serial Range: -C953

4шт.

24

412364

CARRIAGE BOLT,M6 x 1.0 x 56.6mm, Cl 8.8

,, Start Serial: D954

4шт.

25

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

,, Serial Range: -C953

12шт.

25

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

,, Start Serial: D954

6шт.

26

84171064

PILOT VALVE

Incl 27

1шт.

27

87615209

SEAL KIT

1шт.

28

337411

WASHER

,, Start Serial: D954

6шт.

29

412364

CARRIAGE BOLT,M6 x 1.0 x 56.6mm, Cl 8.8

,, Start Serial: D954

1шт.
