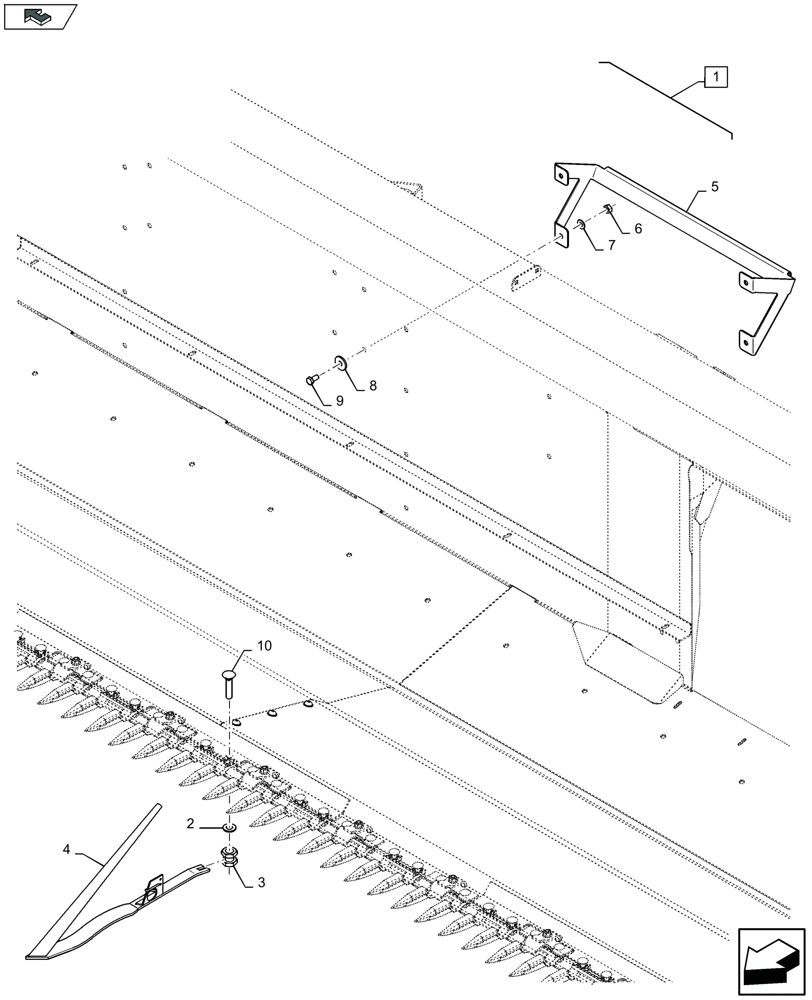

Запчасти Case IH 3050-30FT (88.058.030) - DIA KIT : CROPLIFTER SET (88) - ACCESSORIES

1

84134170

DIA KIT, HARVESTER

Incl 2 - 10

1шт.

2

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

29шт.

3

89514326

NUT

29шт.

4

84134059

CROP LIFTER

29шт.

5

87699398

SUPPORT

2шт.

6

100016

NUT,M10 x 1.5, Cl 8

8шт.

7

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

8

140042

WASHER,11mm ID x 34mm OD x 3mm Thk

8шт.

9

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

8шт.

10

374892

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8

29шт.
